product details / scope of delivery

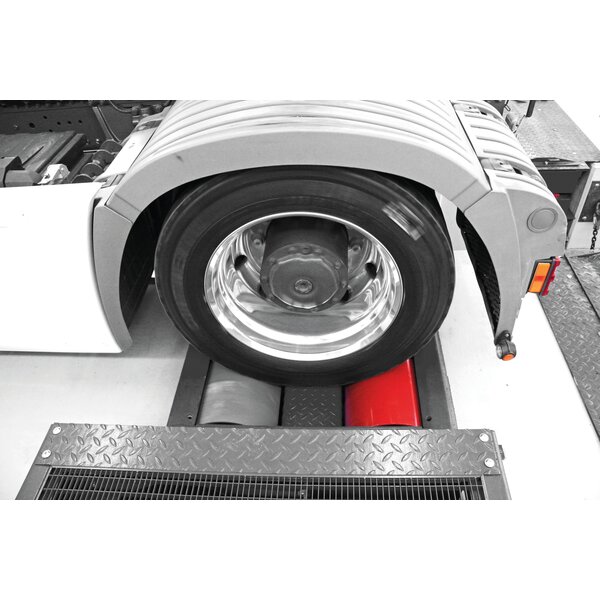

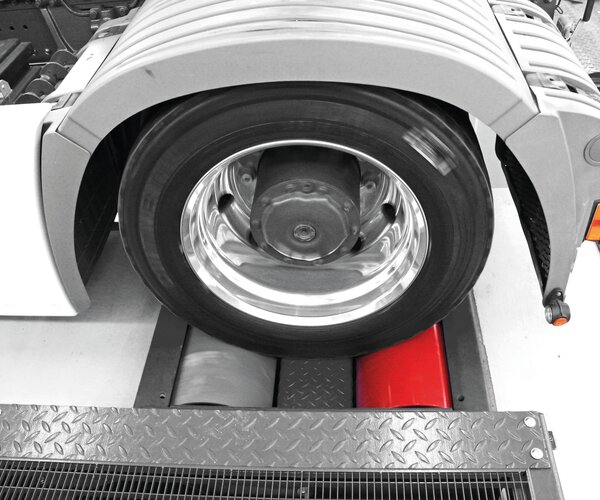

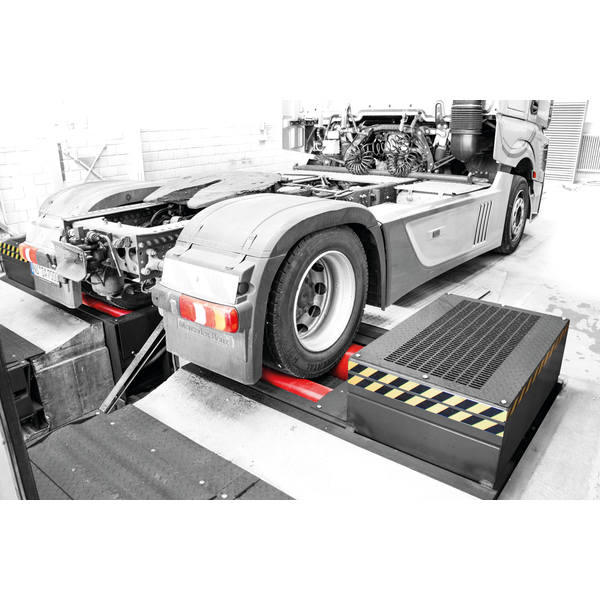

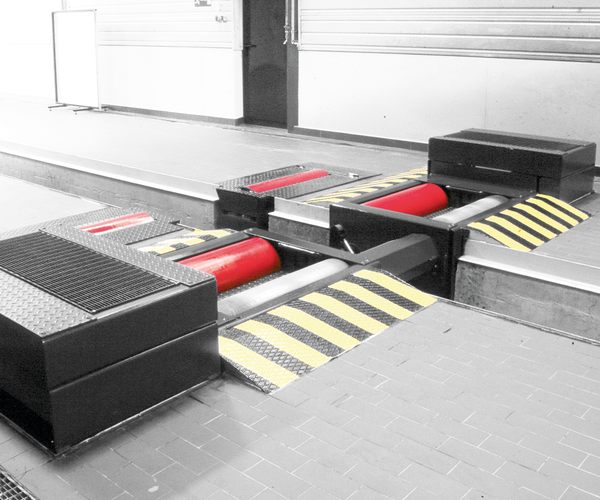

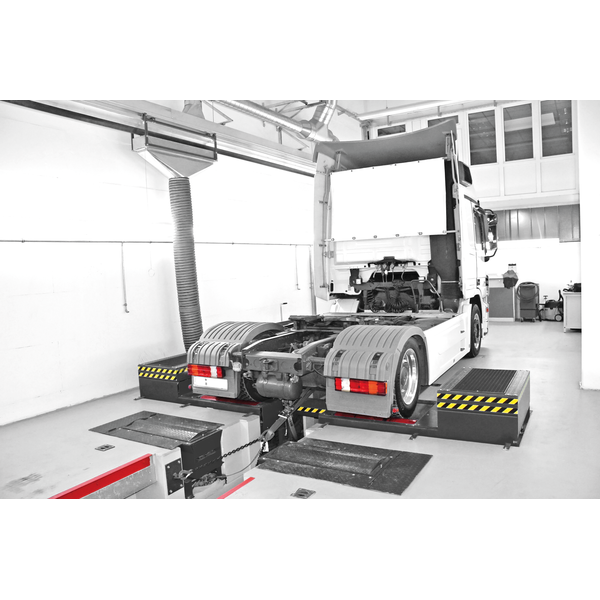

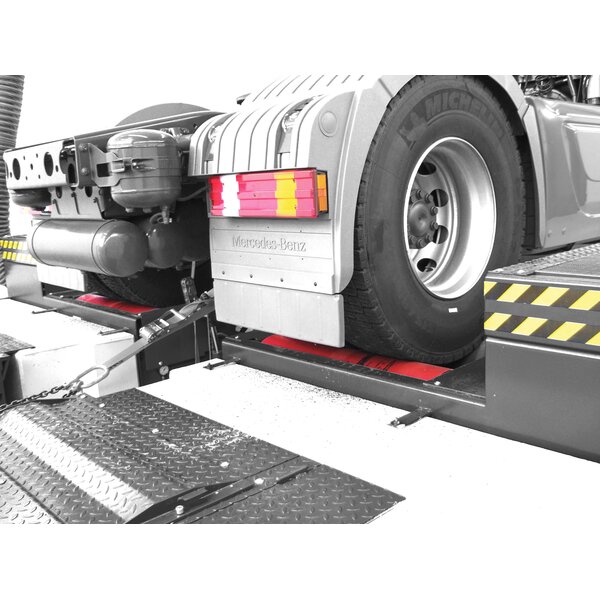

  • Self-supporting split roller set for improved accessibility while pulling down the vehicle
  • Hydraulic lifting bar
  • Cardan shaft for connecting both load rollers
  • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016 (dynamometer frame, covers)
  • Wet-coated load roller, ruby red, RAL 3003


Sales documents

Technical Datasheet

Technical Documentation

Operating Instructions

Technical Data

Technical Data:

Axle load15000 kg
Max. electric eddy-current brakes2 × 150 kW
Dimensions per roller set (L x W x H)2260 x 1100 x 865 mm
Weightapprox. 2500 kg
Min. track1000 mm
Max. track2800 mm
Smallest testable wheel diameter400 mm
Roller diameter318 mm
Power supply3/N/PE 400 V 50 Hz
gG fuse63 A
Max. test speed200 km/h
Max. wheel power300 kW
Max. wheel power (optional)660 kW
Max. tractive force15 kN
Measurement accuracy
Wheel power measurement+/- 2% from measured value
Packaging dimensions (L x W x H)4700 x 1300 x 1300 mm
Weight including packagingapprox. 2800 kg
