product details / scope of delivery

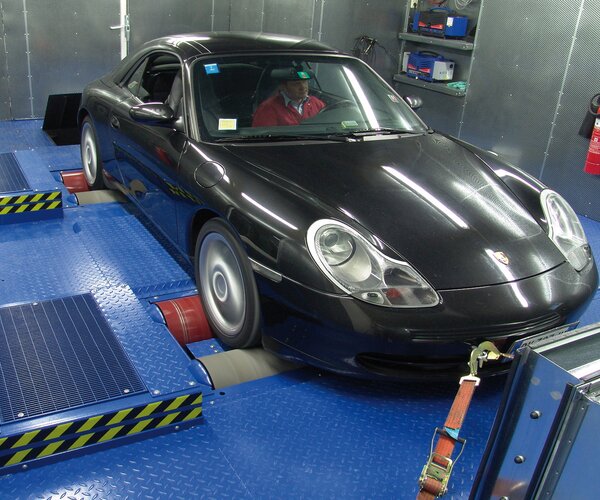

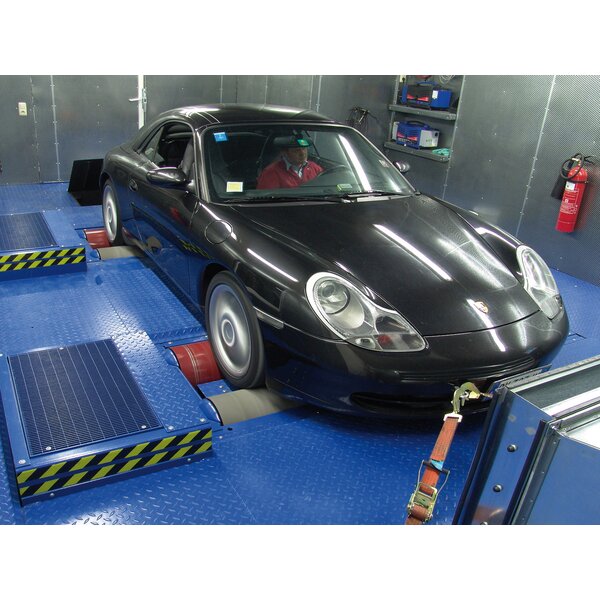

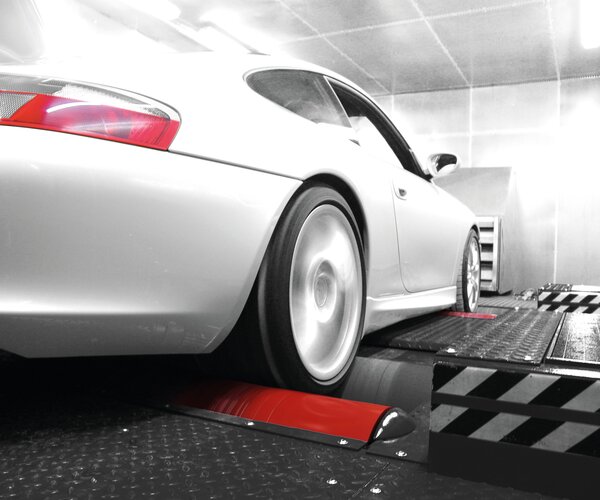

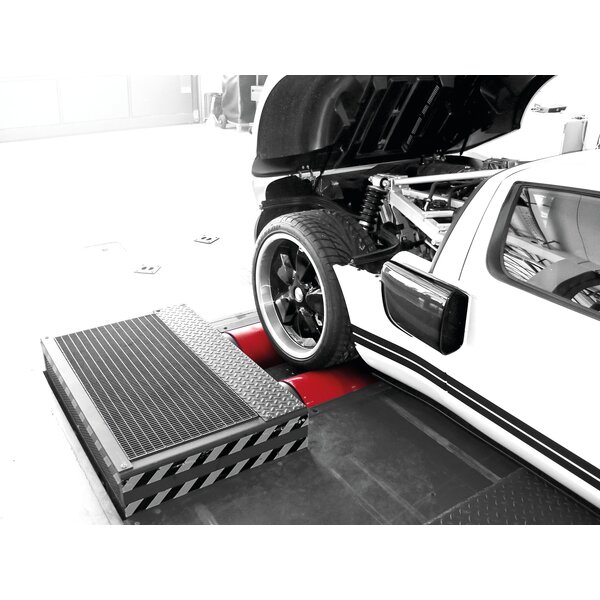

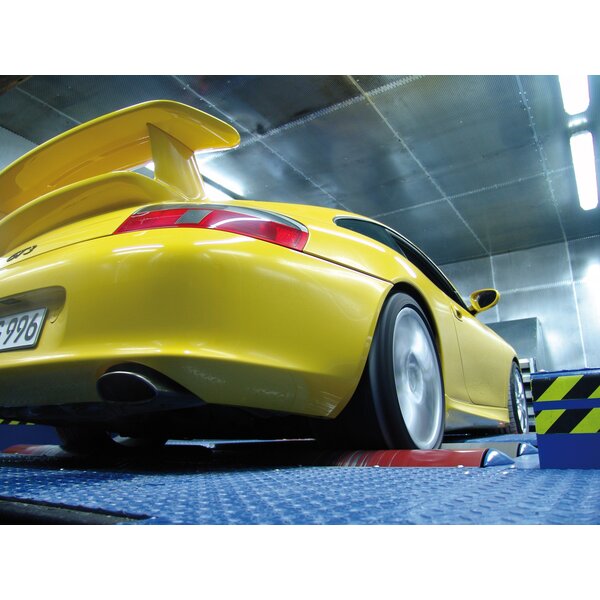

  • Self-supporting closed roller set with an eddy-current brake on the right side of the dynamometer (in driving direction)
  • Optional eddy-current brake on the left for left-hand driving

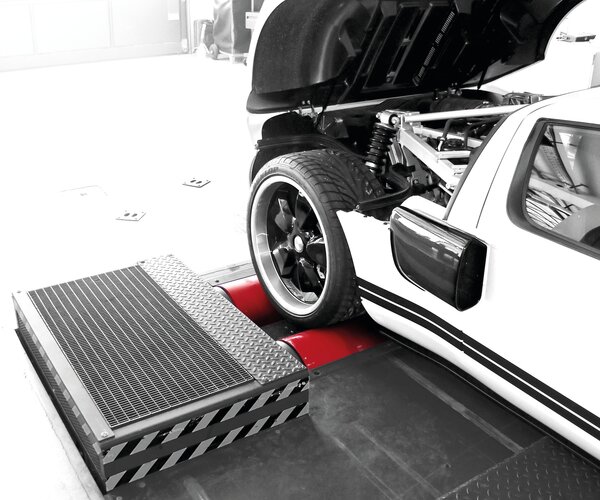

  • Pneumatic lifting bar for easy and gentle drive-in and out
  • 45 mm roller superelevation for optimum air flow
  • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016 (dynamometer frame, covers)

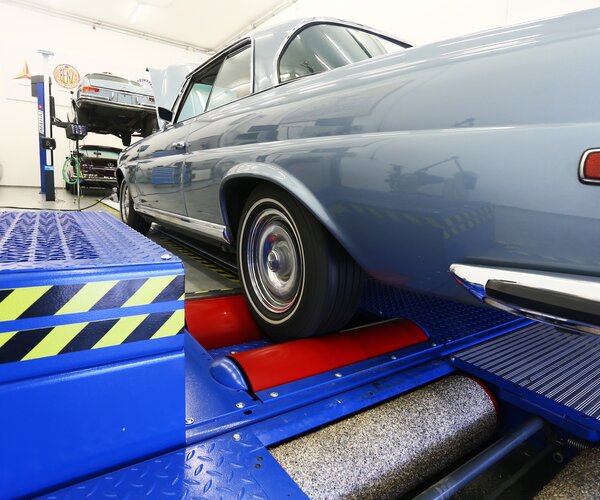

  • Wet-coated load roller, ruby red, RAL 3003"
  • Optional flame-sprayed rollers for optimum adhesion
  • Available with roller axle distance of 500 mm on request for sports cars with limited ground clearance


Sales documents

Technical Datasheet

Technical Documentation

Operating Instructions

Technical Data

Technical Data:

Axle load2500 kg
Max. electric eddy-current brake260 kW
Roller set dimensions (L x W x H)3345 x 1100 x 625 mm
Weight .approx. 1200 kg
Min. track800 mm
Max. track2300 mm
Smallest testable wheel diameter305 mm

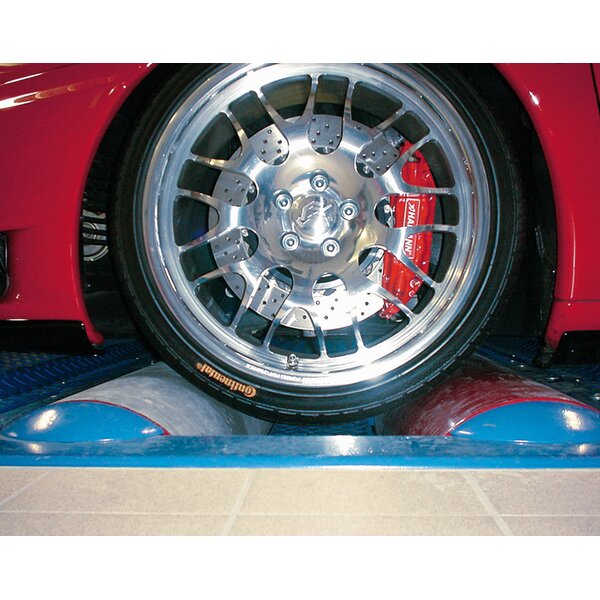

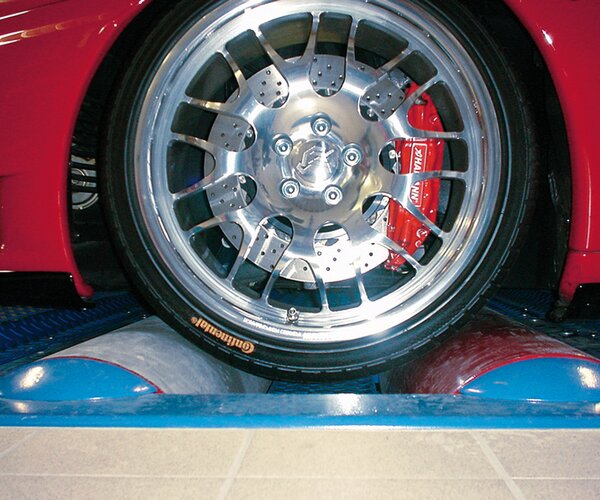

Roller diameter318 mm
Power supply3/N/PE 230 V 50 Hz
(Special voltage on request)
gG fuse16 A
Min. compressed air for lifting bar5 bar
Max. test speed260 km/h
Max. (static) wheel power260 kW
(dynamic) peak> 520 kW
Max. tractive force6 kN
Measurement accuracy
Wheel power measurement+/- 2 % from measured value
Packaging dimensions (L x W x H)3500 x 1220 x 1100 mm
Weight including packagingapprox. 1400 kg
