product details / scope of delivery
- in-ground -
Description:

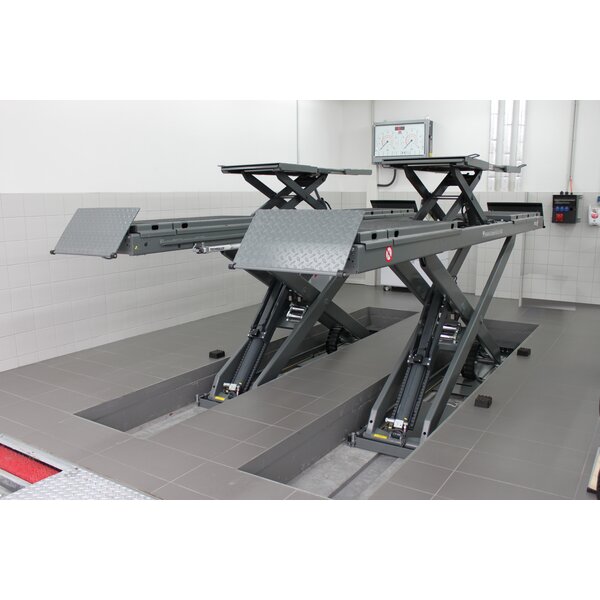

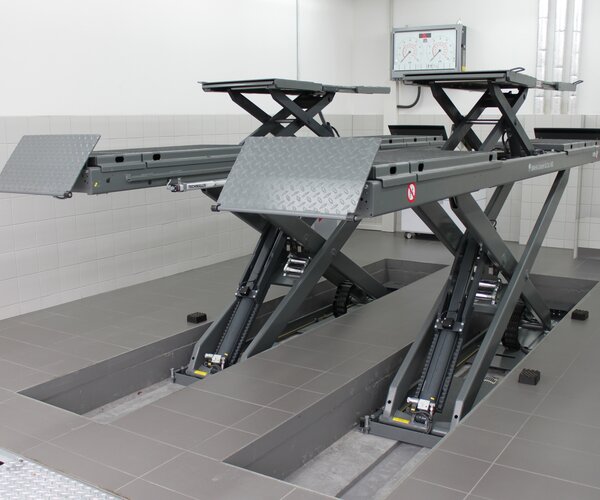

- Scissor lift for in-ground installation for easier use of the lift, without protruding components in the lift area
- Very robust and well-established design with a high vehicle throughput and optimumservice life in mind

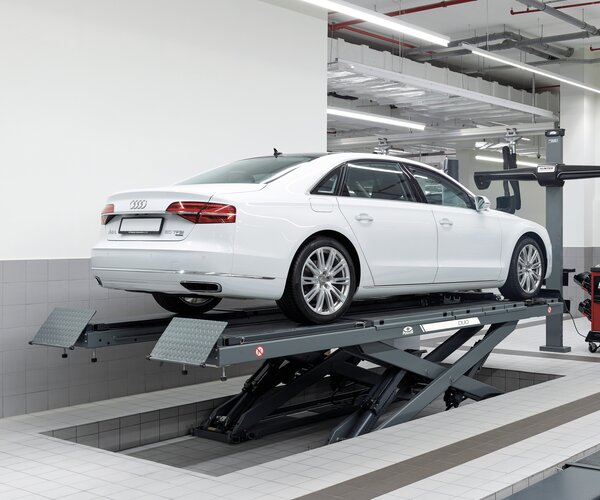

- High lateral stability and bending strength, so also suited to precise wheel alignment
- Runways equipped with pre-integrated guide rail for axle lift
- Latches and cylinder racks as extra safety feature
- Cables and hydraulic hoses installed safely within scissor pipes
- An elevated lifting height in excess of 2.1 m makes repair works and access easier and ensures suitability for strip foundations
- EMERGENCY OFF function in the case of power failure
- Additional anti-corrosion treatment of lock seams, cavity sealing
- Varnished with high-quality powder coating:
- Anthracite Grey, RAL 7016 (Runways, Runway structures, Drive-on ramps, Base frame)
- Window Grey, RAL 7040 (Scissors, Control Desk)
- Automatic synchronisation of runways and the optional wheel-free jack
- Protected within the lifting cylinders, the maintenance-free integrated displacement measurement encoder ('linear-absolutemeasuring system') eliminates the need for light barriers for synchronisation monitoring and electric switches for lift height detection
- High level of safety due to immediate switch-off in case of (one-sided) collision with obstacle at minimum height difference
- Crushing and shearing protection due to CE stop
- Stops automatically upon rising to desired lifting height with custom programmable breakpoint
- Robust membrane keyboard
- Optional lift floor for retractable in-ground axle jack
- Double latch option for wheel alignment for additional stability within the scissors arm (not possible in conjunction with wheel-free jack)
- DUO-SPEED option for short lifting / lowering times
Scopeof delivery:
- Scissor lift, type: DUO CM 5.0 U
- Operation desk, control and hydraulic unit
- Lockable main switch
- 4 roll-off flaps
- 2 pneumatic quick-action couplings installed on runway
- 8 rope loops to be used as a transport aid
- Operating manual and test log
- EC CE declaration of conformity
- Transport packaging
Downloads
Sales documents
Brochures | ||
---|---|---|
Brochure MAHA DUO
|
||
Brochure (Printable version) MAHA DUO print
|
Technical Datasheet | ||
---|---|---|
Technical Datasheet DUO CM 5.0 U
|
||
Technical Datasheet (Printable version) DUO CM 5.0 U
|
Technical documentation
Operating Instructions | ||
---|---|---|
Operating Instructions DUO CM
|
Technical Data
Technical data:
CE load capacity | 5000 kg |
CE load capacity with wheel-free jack | 5000 kg |
Max. lifting height | 2140 mm |
Stroke | 1850 mm |
Lifting / lowering time, load-dependent | approx. 50 / 40 s |
Overall dimensions (L x W x H) | 5200 x 2210 x 290mm |
Installation depth | 300 mm |
Runway dimensions (L x W x H) | 5200 x 630 x 176 mm |
Drive power | 2.5 kW |
Operating pressure | 190 bar |
Supply voltage | 3/N/PE 400 V 50 Hz |
gG fuse | 16 A |
Weight | 3000 kg |
Weight including packaging | 3200 kg |
Packaging dimensions (L x W x H) | 5300 x 800 x 800 mm |
Hydraulic oil volume (not included) | 40 l |
