DUO CM 4.2 A VP 250225

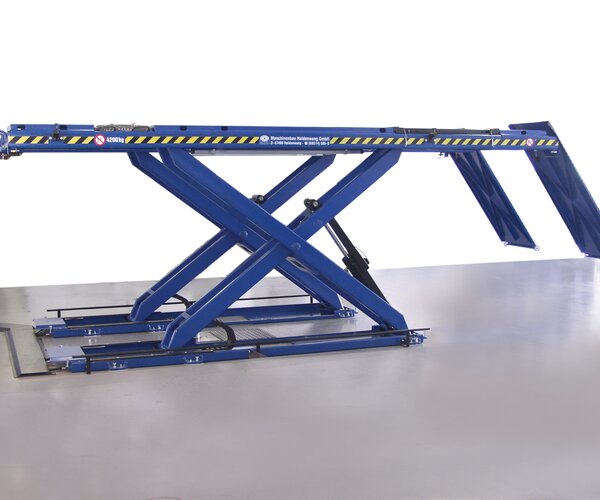

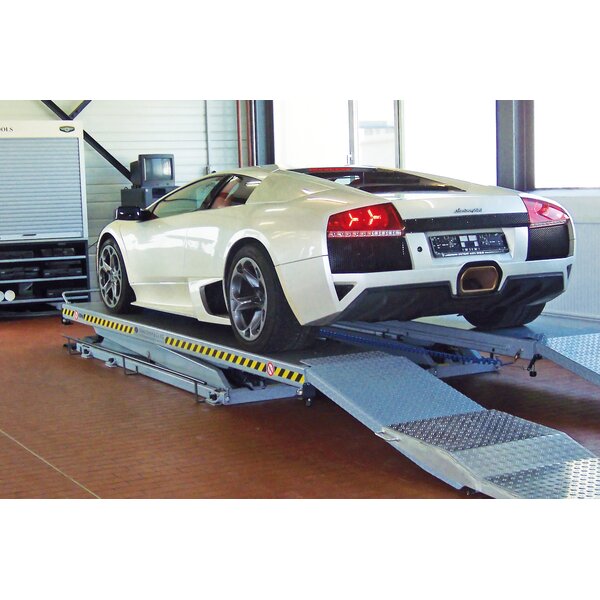

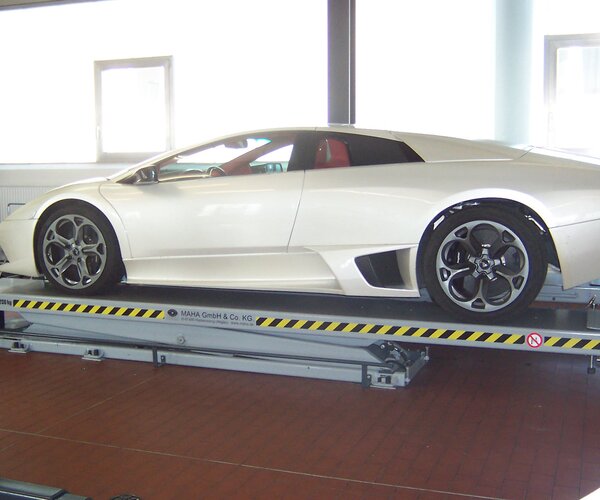

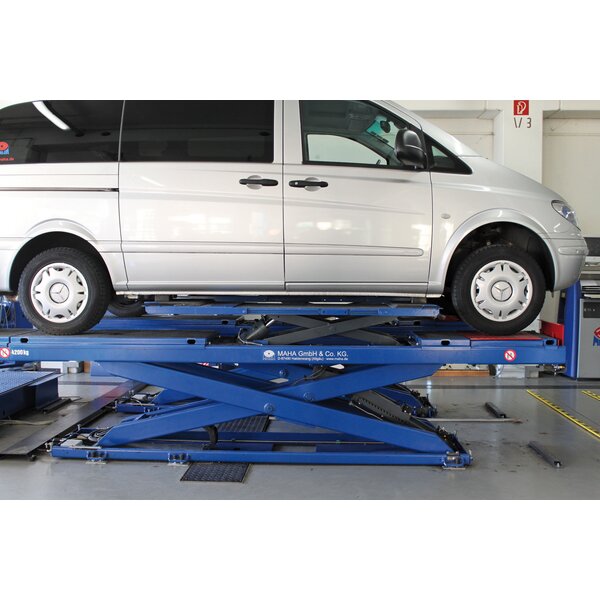

The scissors lift DUO CM 4.2 A, for above-floor installation, lifts vehicles of up to 4.2 t and is optimally suited for wheel alignment checks due to its high level of stability. Its robust and well-established construction is designed for maximum service life and high vehicle throughputs. Protected within the lifting cylinders, the integrated maintenance-free displacement measurement sensor (absolute linear measurement system) eliminates the need for light barriers for synchronisation monitoring and electric switches for lift height detection.

product details / scope of delivery

  • on-ground -

Description:

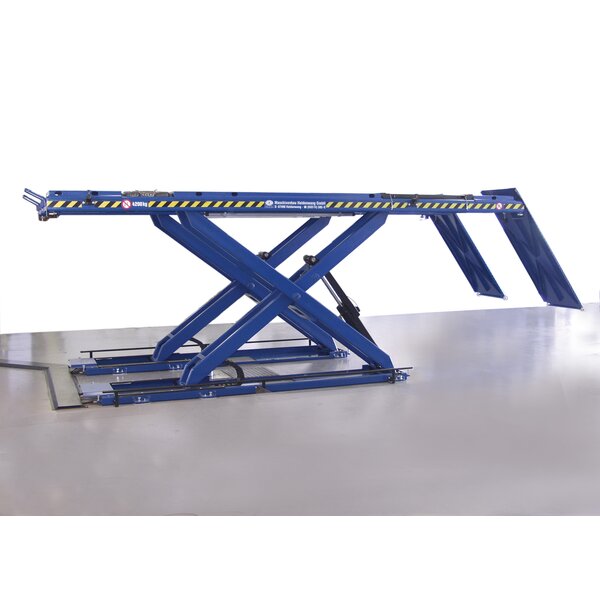

  • Scissor lift for on-ground installation
  • Very robust and well-established design with a high vehicle throughput and optimum service life in mind

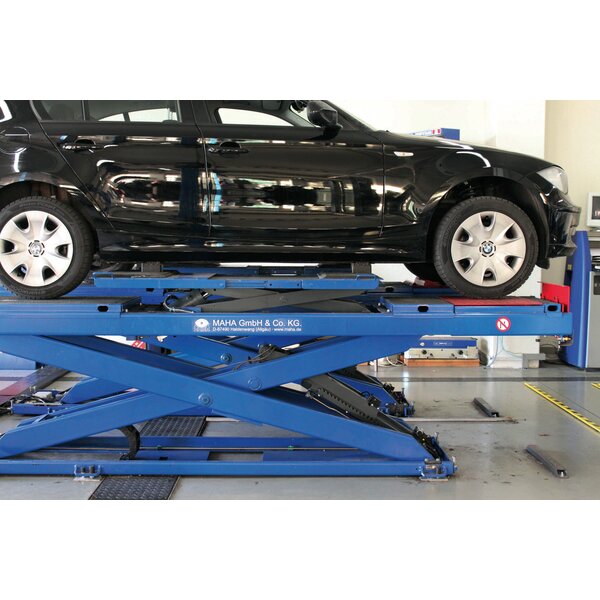

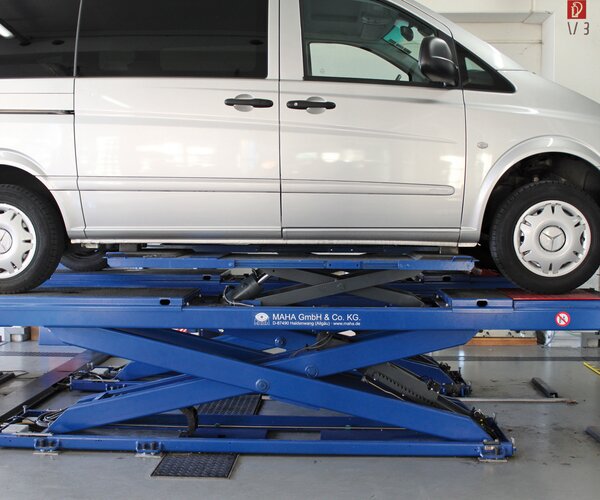

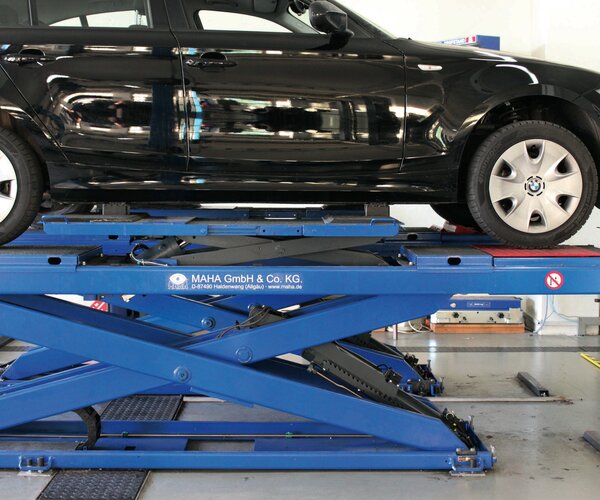

  • High lateral stability and bending strength, so also excellently suited to precise wheel alignment

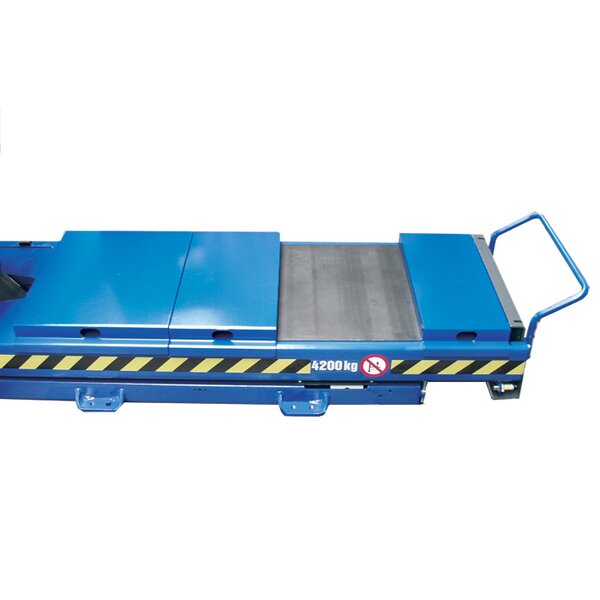

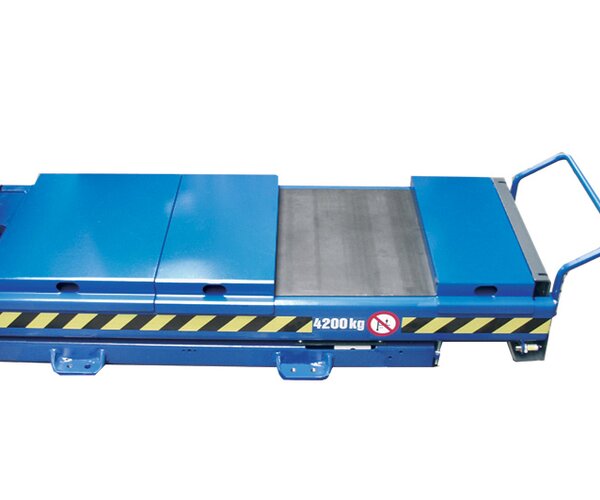

  • Runways equipped with pre-integrated guide rail for axle lift

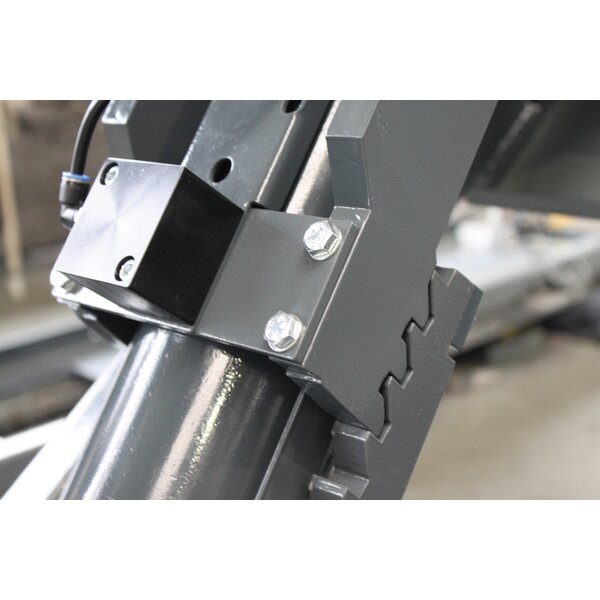

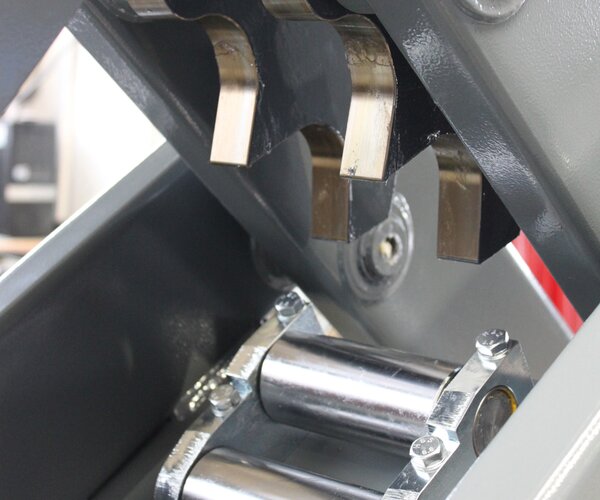

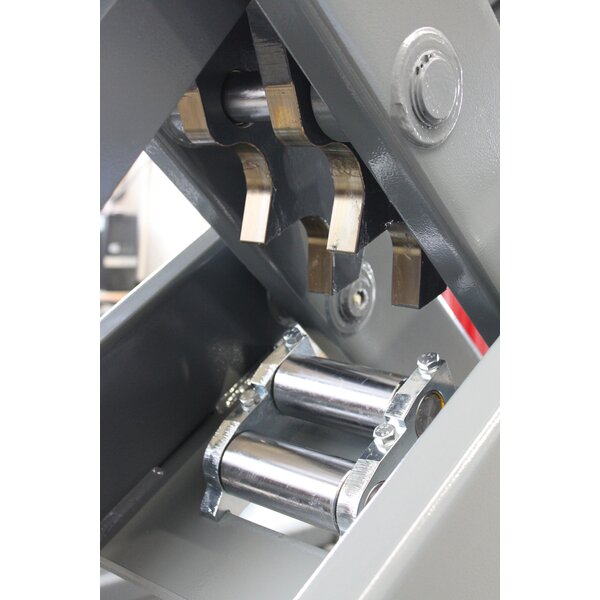

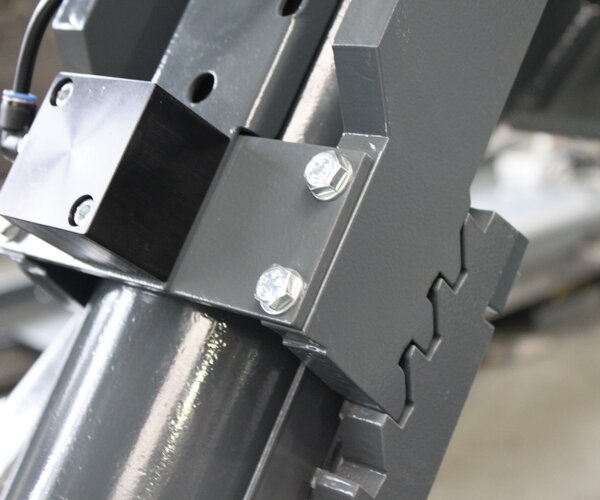

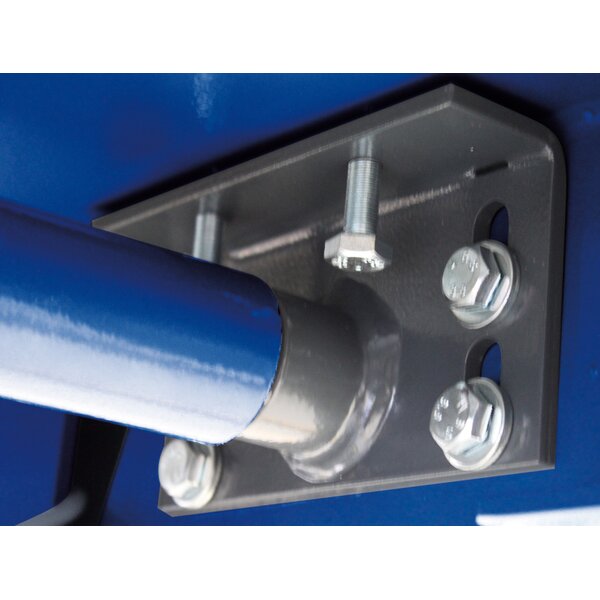

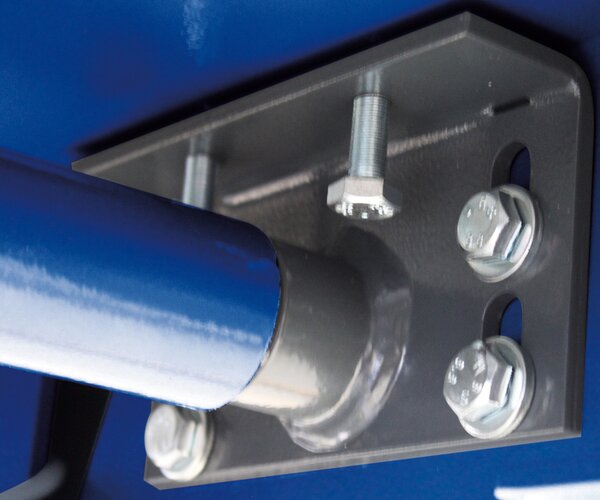

  • Latches and cylinder racks as extra safety feature

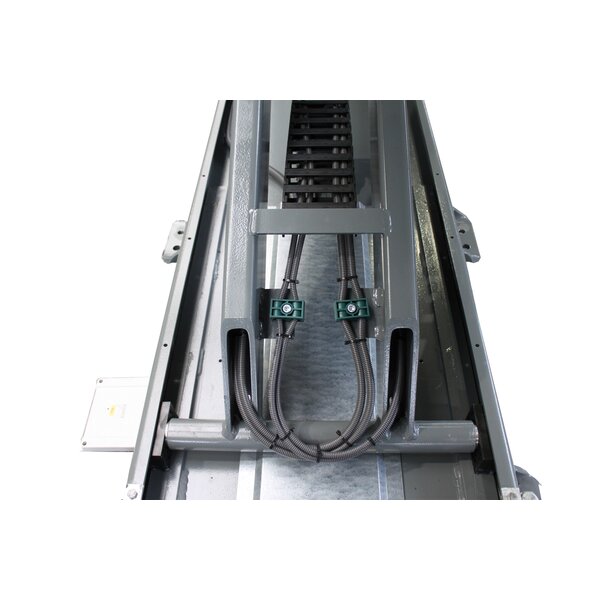

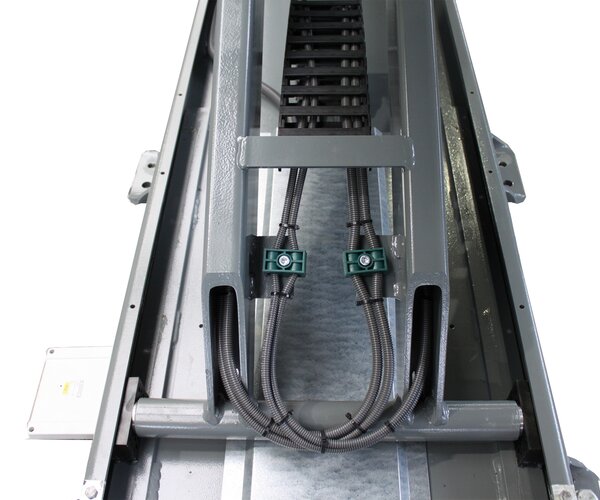

  • Cables and hydraulic hoses installed safely within scissor pipes

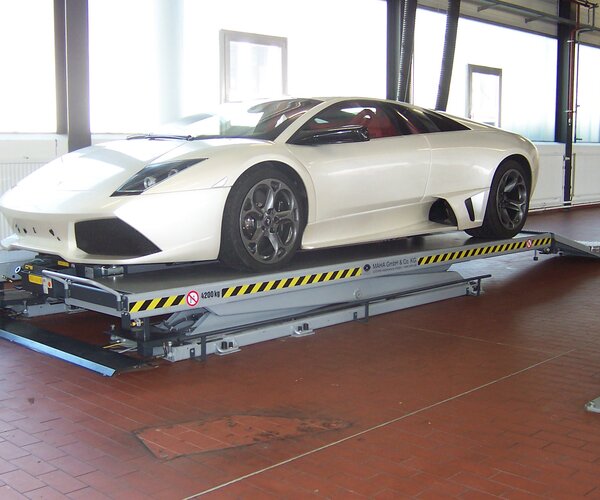

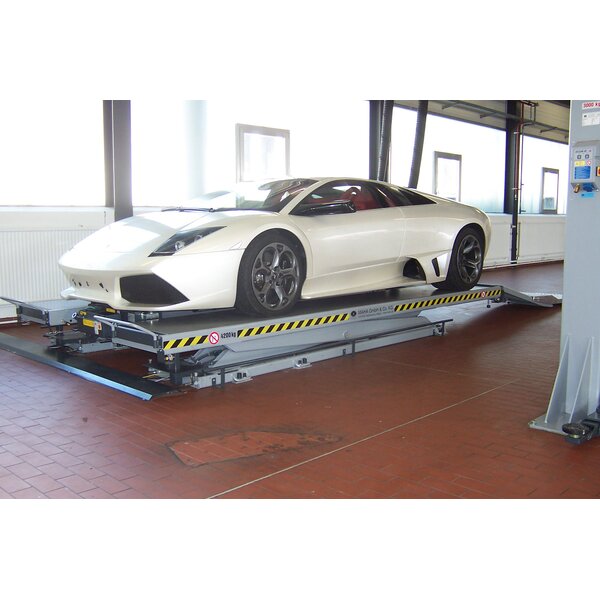

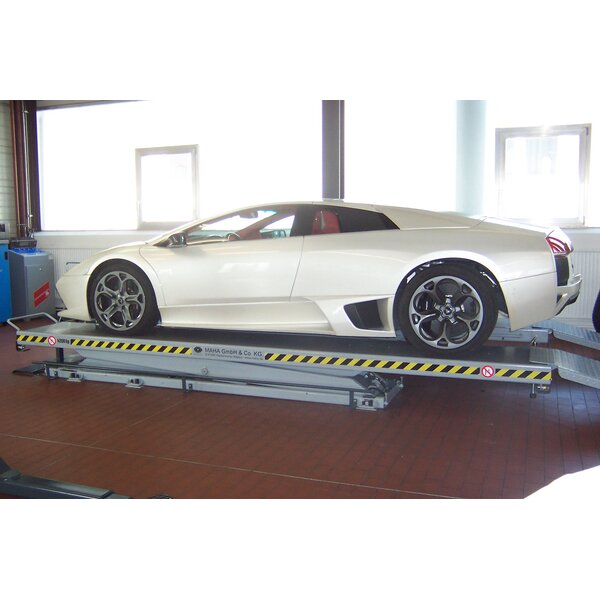

  • Low drive-on height for simple use
  • An elevated lifting height in excess of 2 m makes repair works and access easier
  • EMERGENCY OFF function in the case of power failure

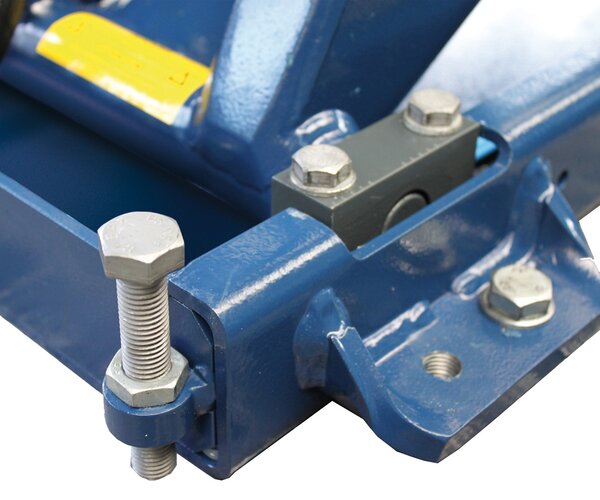

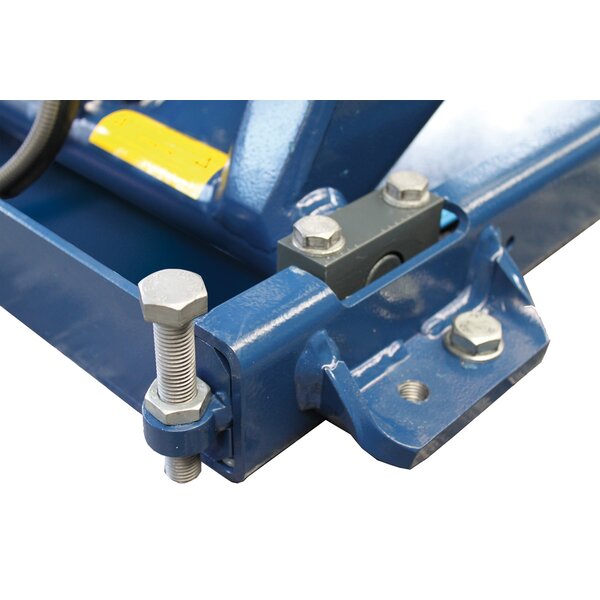

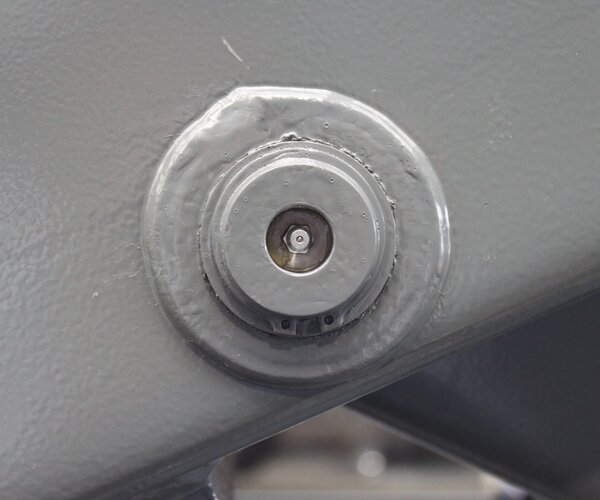

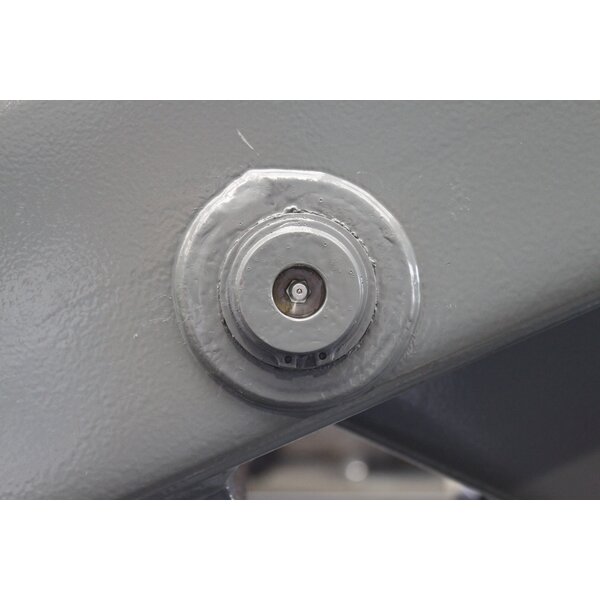

  • Additional anti-corrosion treatment of lock seams, cavity sealing
  • Varnished with high-quality powder coating:
    • Anthracite Grey, RAL 7016 (Runways, Runway structures, Drive-on ramps, Base frame)
    • Window Grey, RAL 7040 (Scissors, Control Desk)


  • Automatic synchronisation of runways andthe optional wheel-free jack
  • Protected within the lifting cylinders, the maintenance-free integrated displacement measurement encoder ('linear-absolute measuring system') eliminates the need for light barriers for synchronisation monitoring and electric switches for lift height detection
  • High level of safety due to immediate switch-off in case of (one-sided) collision with obstacle at minimum height difference
  • Crushing and shearing protection due to CE stop
  • Stops automatically upon rising to desired lifting height with custom programmable breakpoint
  • Robust membrane keyboard

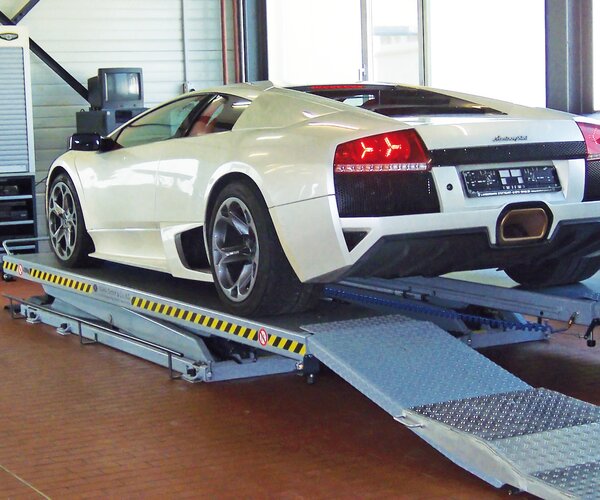

  • Slanted runways available for easy drive-on and drive-off

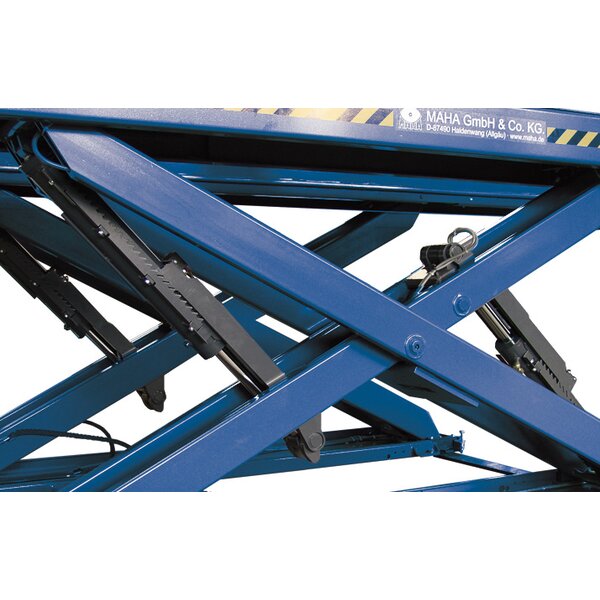

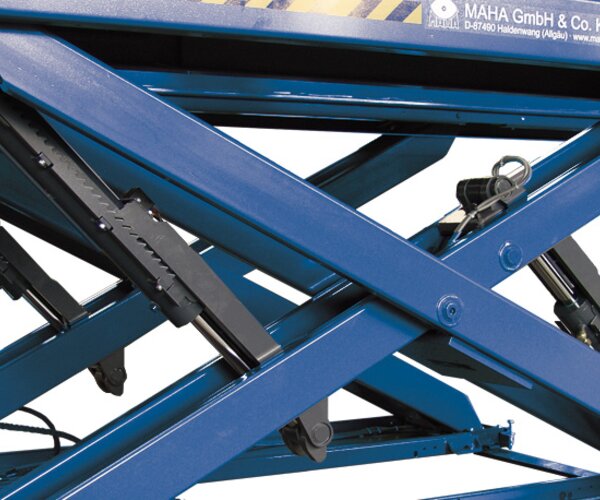

  • Optional dual latch for chassis alignment as a means of added stability within the scissor arm (not available in combination with wheel-free jacks)
  • Reduced lifting/lowering time available


Scope of delivery:

  • Scissor lift, type: DUO CM 4.2 A
  • Operation desk with control and hydraulic unit
  • Lockable main switch
  • 2 long drive-on ramps, 2 roll bars

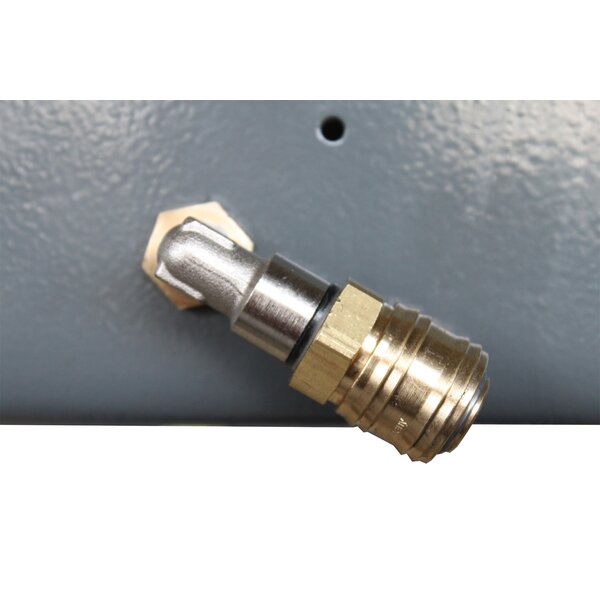

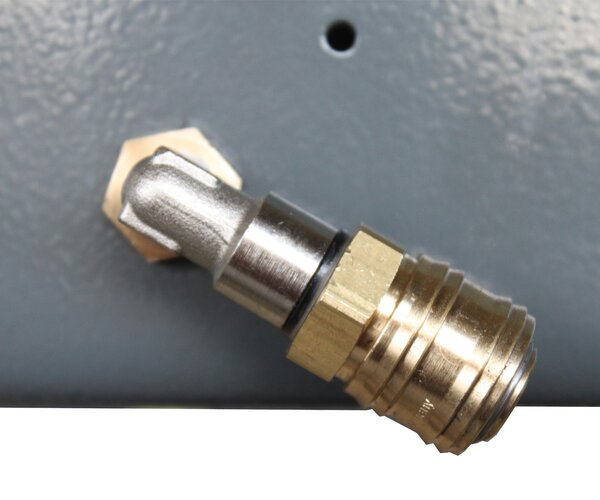

  • 2 pneumatic quick-action couplings installed on runway
  • Cover plates for cables and hydraulic hoses
  • 8 rope loops to be used as a transport aid
  • Operating manual and test log
  • EC CE declaration of conformity
  • Transport packaging

Downloads

Sales documents

Brochures
Brochure MAHA DUO
DE EN
Brochure (Printable version) MAHA DUO print
DE EN
Technical Datasheet
Technical Datasheet DUO CM 4.2 A
DE EN
Technical Datasheet (Printable version) DUO CM 4.2 A
DE EN

Technical documentation

Operating Instructions
Operating Instructions DUO CM
DE EN

Technical Data

Technical data:

CE load capacity4200 kg
CE load capacity with wheel-free jack4200 kg
Max. lifting height2075 mm
Stroke1850 mm
Lifting / lowering time, load-dependentapprox. 40 / 40 s
Overall dimensions (L x W x H)5900 x 2075 x 240 mm
Drive-on height (without accessories)240 mm
Runway dimensions (L x W x H)4400 x 617 x 126 mm
Optional runway length4800 mm
Drive power2.5 kW
Operating pressure190 bar
Power supply3/N/PE 400 V 50 Hz
gG fuse16 A
Weight2650 kg
Weight including packaging2700 kg
Packaging dimensions (L x W x H)4500 x 800 x 800 mm
Hydraulic oil volume (not included)40 l
