product details / scope of delivery
1-stage telescopic, rail-guided, suspended
Description:

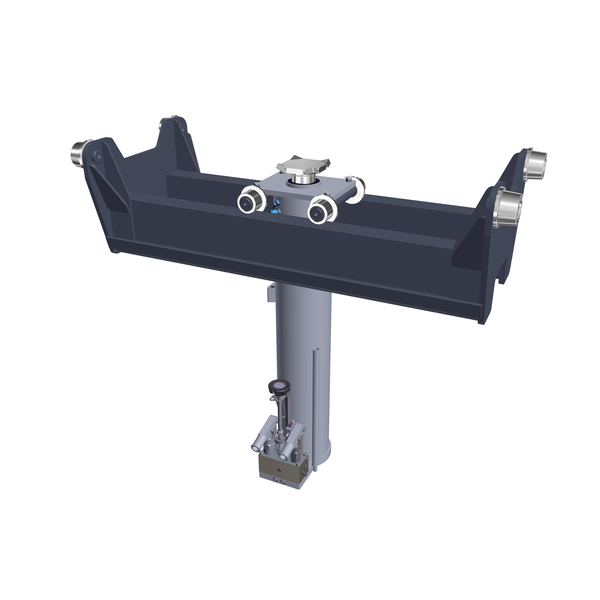

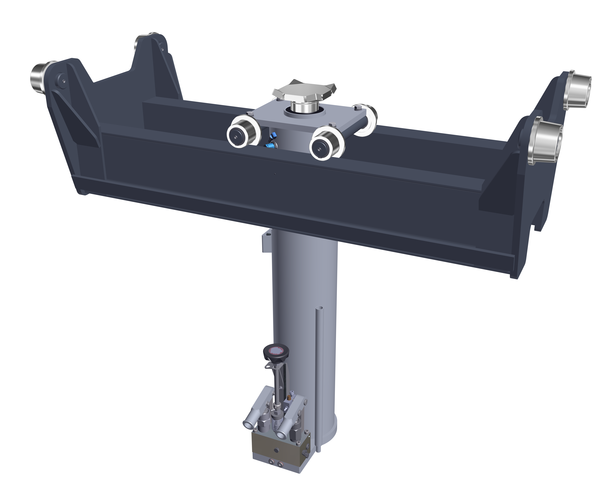

Manual pit jack
with hand pump for load lifting
Specifically for wheel and brake works and dismantling
smaller assemblies in conjunction with axle lifting beams and
support systems for trucks and buses with 20.0 t load capacity
Control:
- Precision, user-friendly hand pump for fast stroke and lift
- Delicate and precision lowering of the pit jack with tried <(>&<)> tested system with integrated dead man's control
Design:
- For precise movement, the pit jack is rail-guided at the top edge of the pit
- Guarantees easy movement of the pit jack since all rollers are fitted with needle bearings crossways and lengthways
- Long total stroke of 750 mm toreach high-up units
- The pit jack is fitted with a downward deep-drawn P carriage for integrating an axle lifting beam at any height
- Alternatively, a straight S carriage can be used too
- Pit jack with custom-made carriage adapted specifically to the individual work pit based on dimension sheet in conjunction with different roller versions and degrees of clearance to adapt to the work pit circumstances
- Corrosion-resistant piston rods thanks to self-lubrication
- High-quality powder-coating protects against corrosive liquids and elevates quality look and feel on a lasting basis
Scope of delivery:
- Pit jack with hand pump
- Deep-drawn P carriage and rollers for rails
- Standard supportlugs 120 x 120 mm
- Operating instructions
- EC conformity certificate
- Colour: Jack base frame RAL 7040
- Attachments and carriage RAL 7016
Downloads
Sales documents
Brochures | ||
---|---|---|
Brochure PIT JACK
|
||
Brochure (Printable version) PIT JACK
|
Technical Datasheet | ||
---|---|---|
Technical Datasheet MPJ 20.0/750 1S HM
|
||
Technical Datasheet (Printable version) MPJ 20.0/750 1S HM
|
Technical documentation
Product drawings | ||
---|---|---|
Brochure PIT JACK Dimension Sheet
|
Technical Data
Technical data:
Load capacity (CE) | 20,000 kg |
Stroke distance | 750 mm |
Lifting levels | 1 |
Min. pick-up height from roller slide rail | - 86 mm |
Pit jack depth for roller slide rail | 1000 mm |
Max. lifting height above roller slide rail | 681 mm |
Slide rail width inner dimensions | 700 ýÿ 1200 mm |
Carriage adjustable range | Made-to-measure |
Roller rest width | 40 mm |
Roller rest incline | 8 % / 4.6° |
Max. parallelism deviation slide rails | 10 mm |
Roller diameter (at the flange) | 80 (95) mm |
Support diameter inside/outside | 45/70 mm |
Piston rod diameter | 70 mm |
Oil quantity/quality | 15.3 l / HLP-D 10 |
Drive | Manual hydraulic |
Operating pressure | 308 bar |
Weight | 210 kg |
