product details / scope of delivery

Description:

  • Inspection of axle geometry in a matter of seconds upon drive-on
  • Fully automatic analysis of variation in m/km

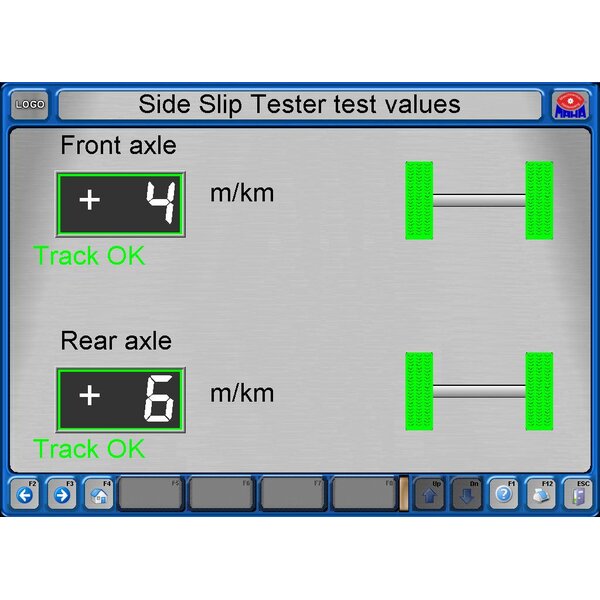

  • In conjunction with EUROSYSTEM: display on PC screen with measurement visualisation and graphic representation
  • In conjunction with LON brake testers: illustration of measurements on dial analogue displays
  • Varnished with high-quality powder coating: anthracite grey, RAL 7016


Standard Delivery:

  • Side Slip Tester MINC II EURO Floor Assembly
  • Pre-configured for connection to EUROSYSTEM or LON test line
  • Pre-configured for stand-alone use (requires MCD 2000 communication desk with electronics)


Downloads

Sales documents

Technical Datasheet

Technical Data

Technical Data:

Axle load15000 kg
Measurement range+/- 20 m/km
Drive-over speed5 - 7 km/h
Floor unit dimensions (H x W x L)135 x 770 x 1020 mm
