product details / scope of delivery
Description:
- Completely independent, functioning test container thanks to fully integrated power generator (optional)

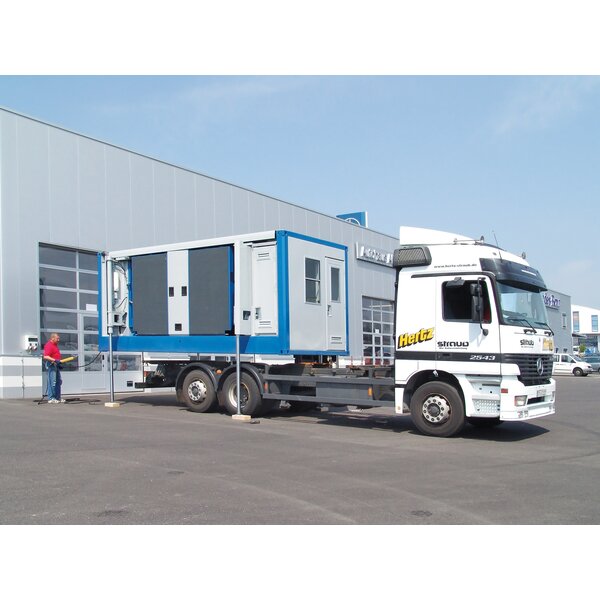

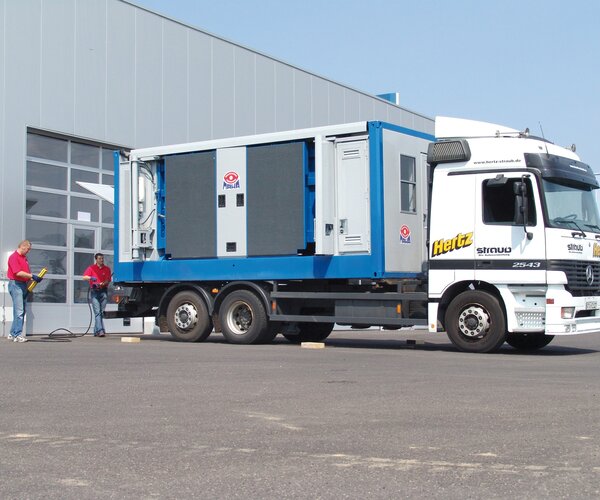

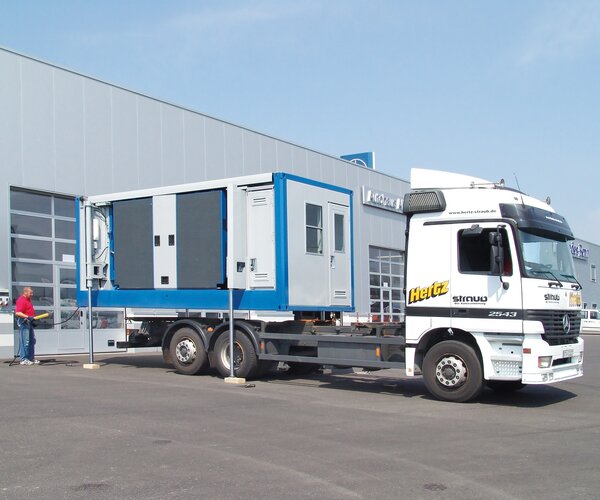

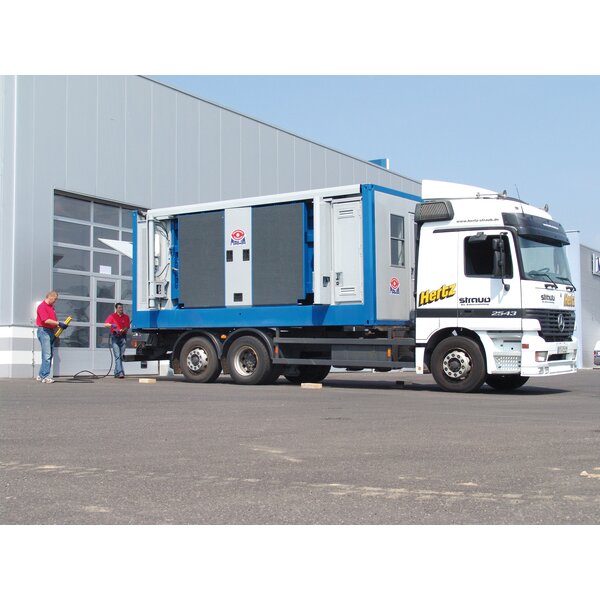

- Hydraulic settling device incl. cable remote control, allows for easy change of location
- Fully operational in under 15 minutes

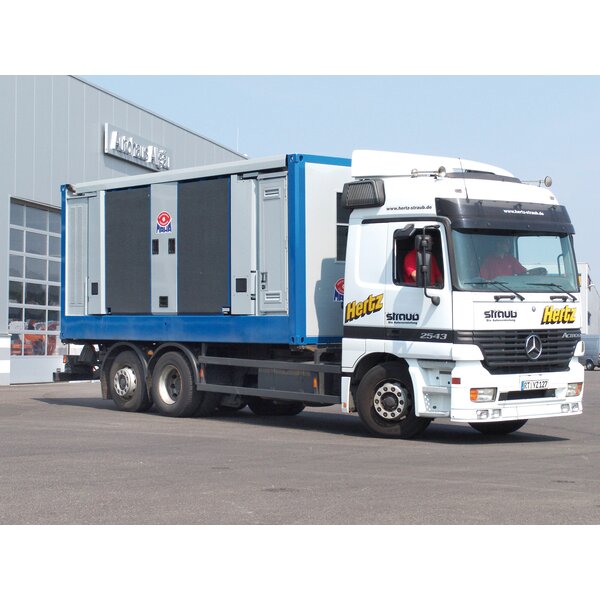

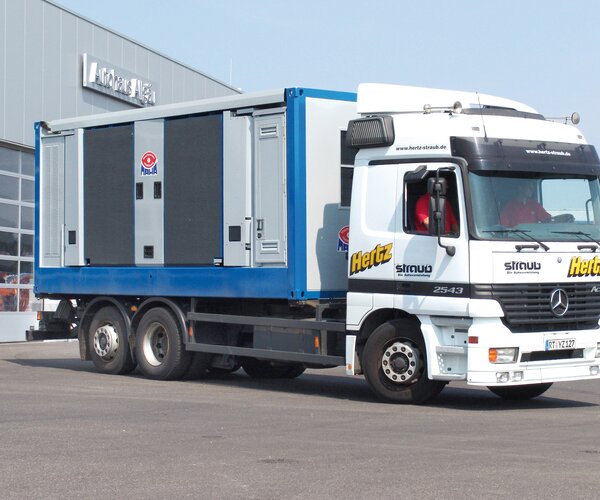

- Self-supporting 20 ft. steel container inspired by DIN ISO 668

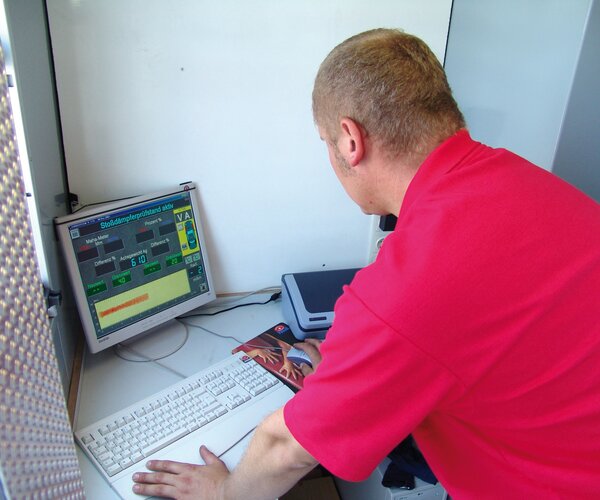

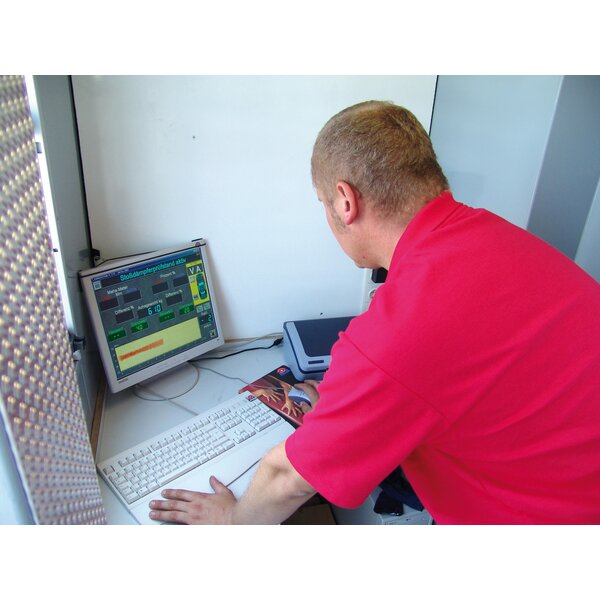

- Office with PC workstation for staff

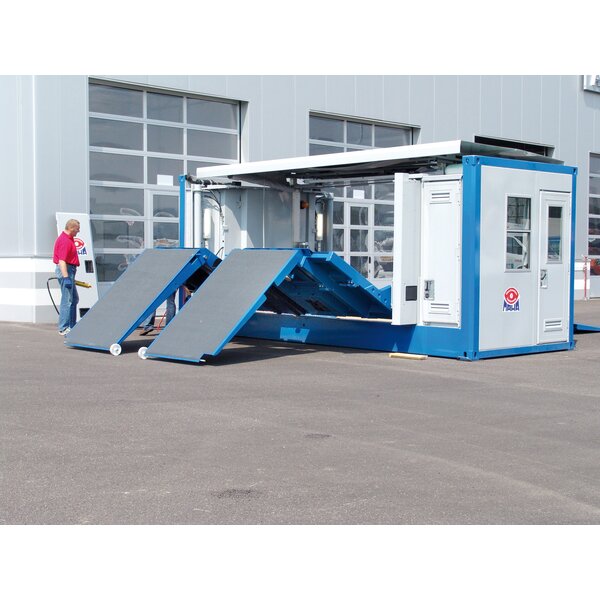

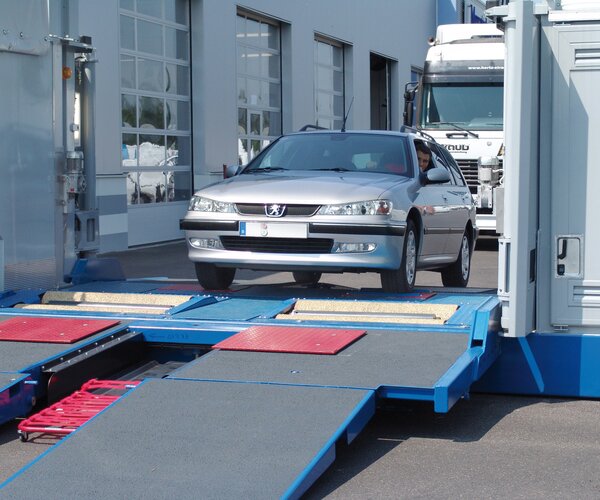

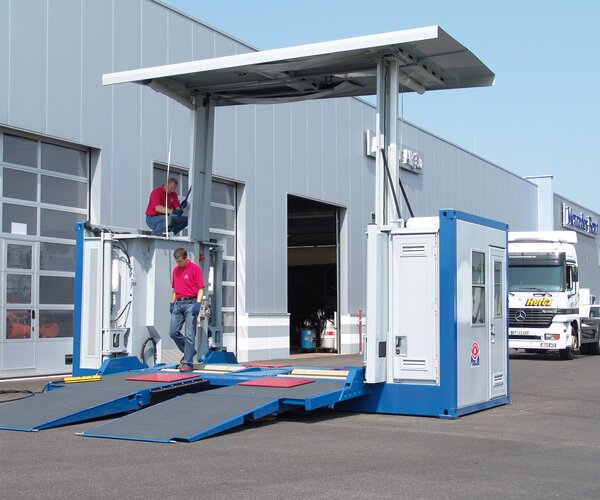

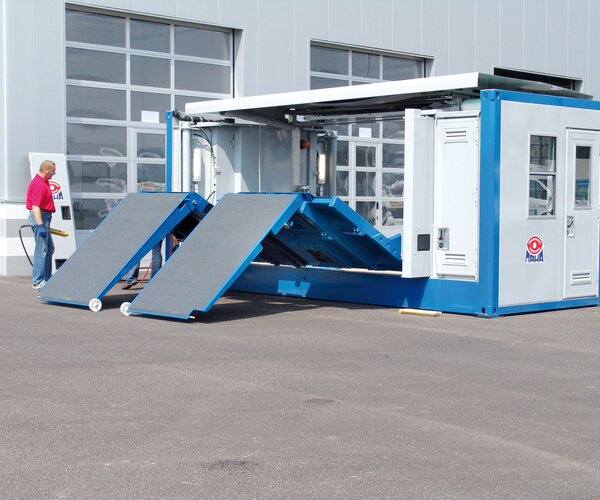

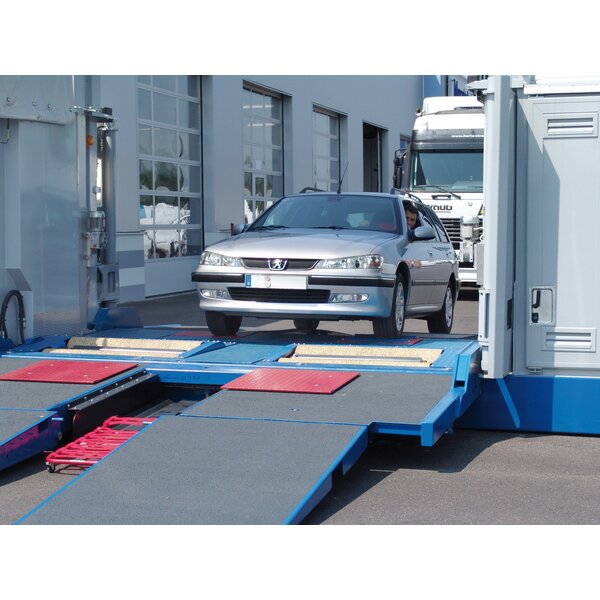

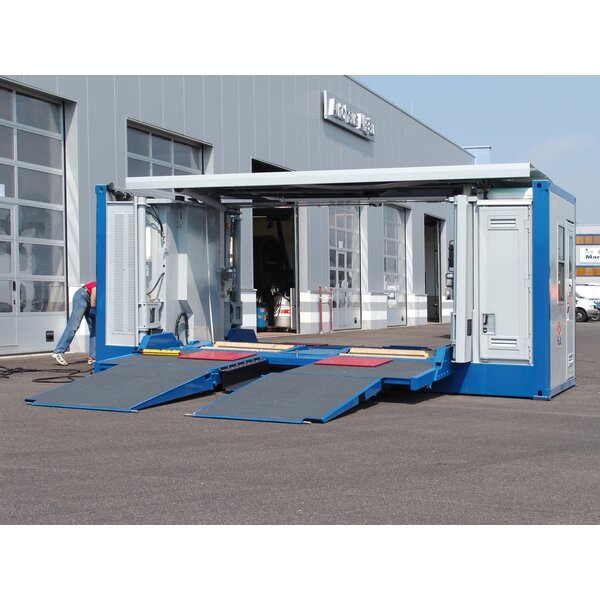

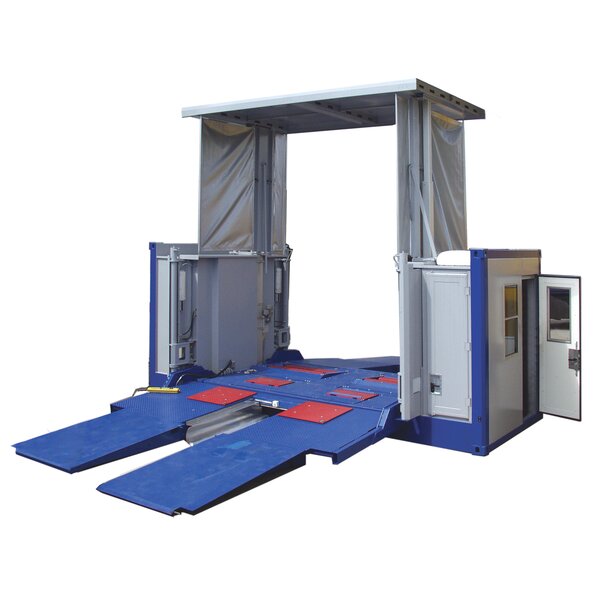

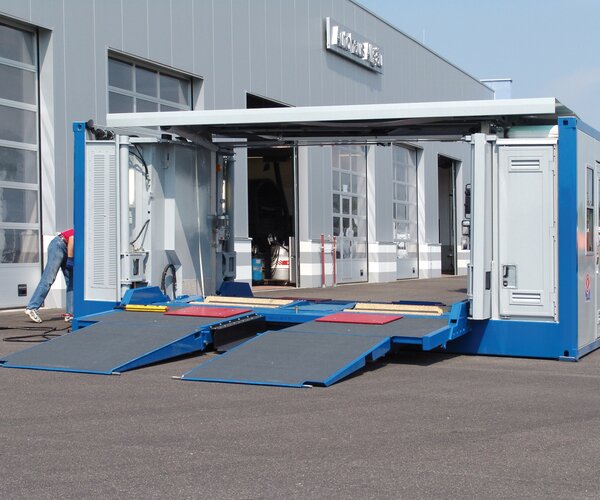

- Hydraulically operated, granule-coated entry and exit ramps

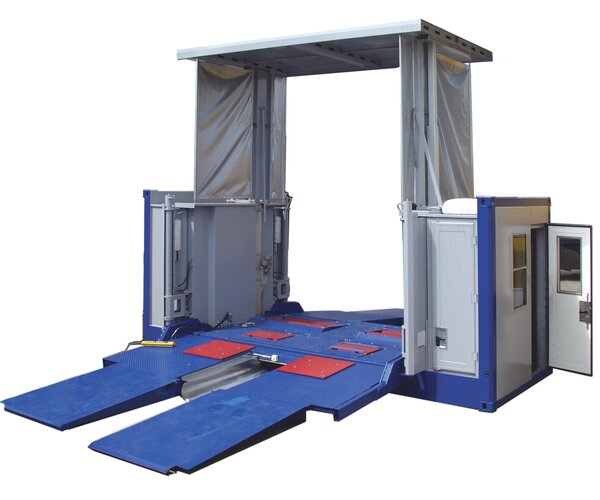

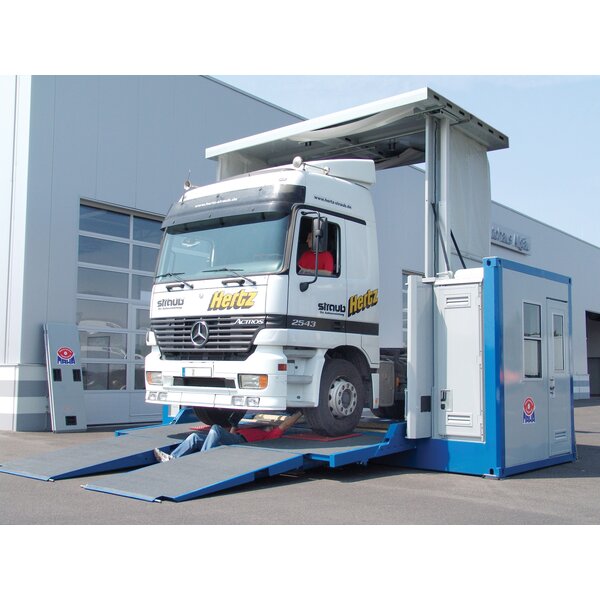

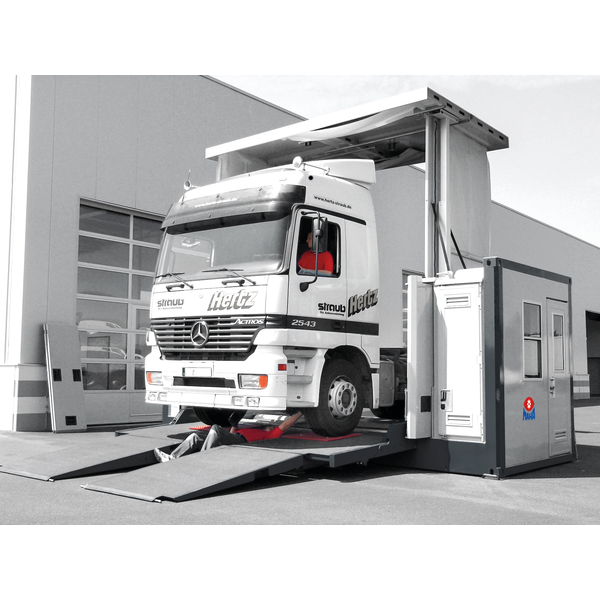

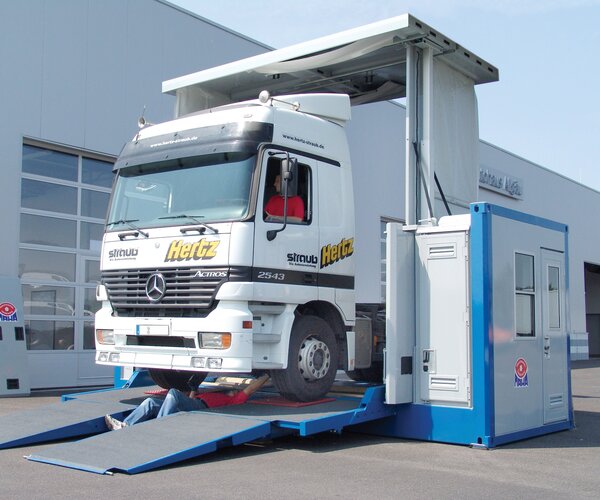

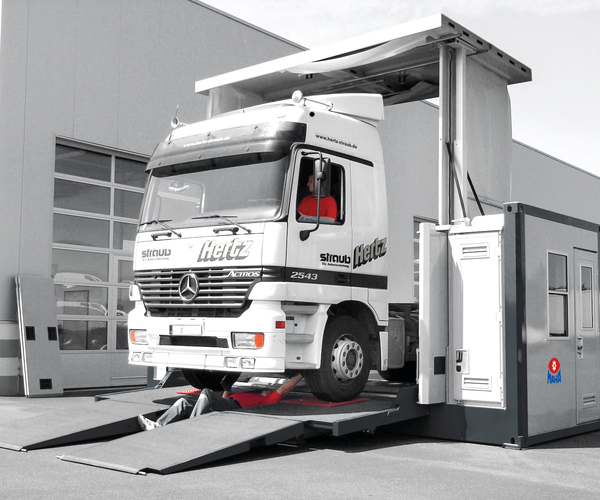

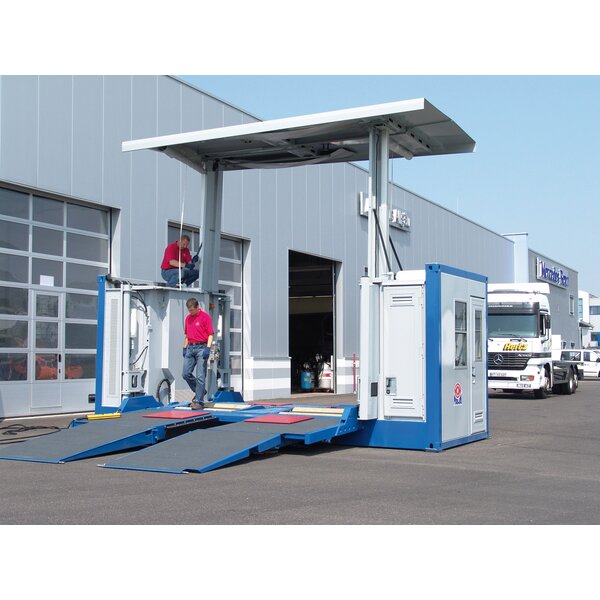

- Roof with weather protection can be lifted hydraulically
- Air-conditioning with heating function for office (optional)
- 360° rotation device for test container for easy positioning at location (optional)
- Can be expanded to a complete test lane with:

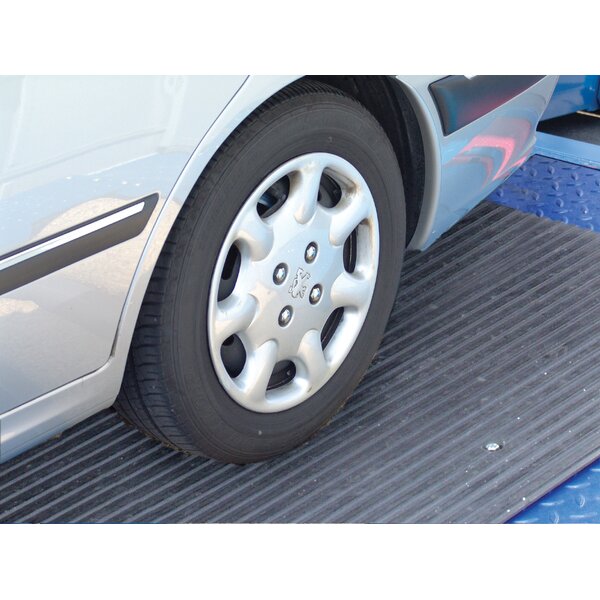

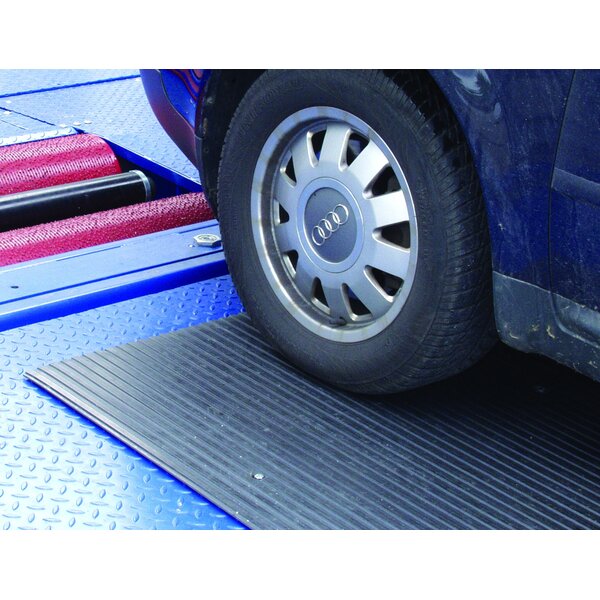

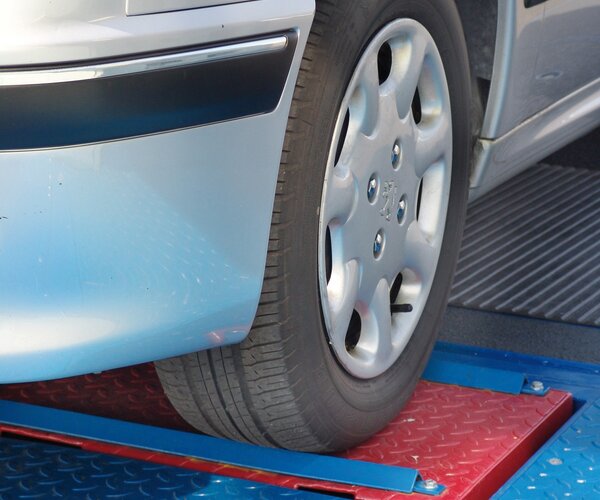

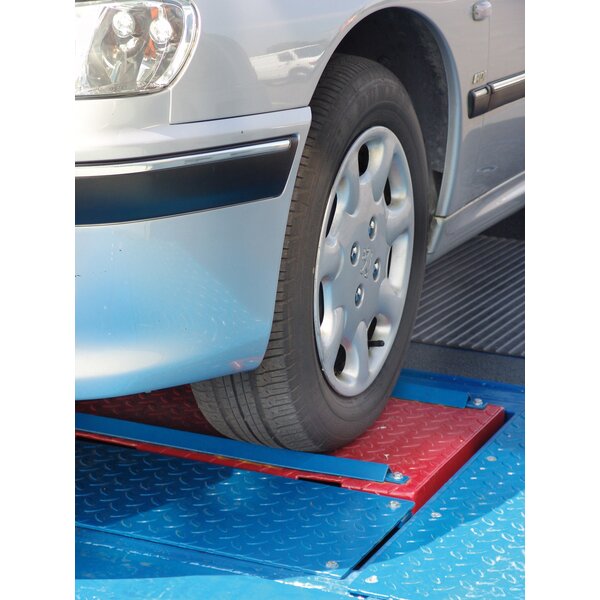

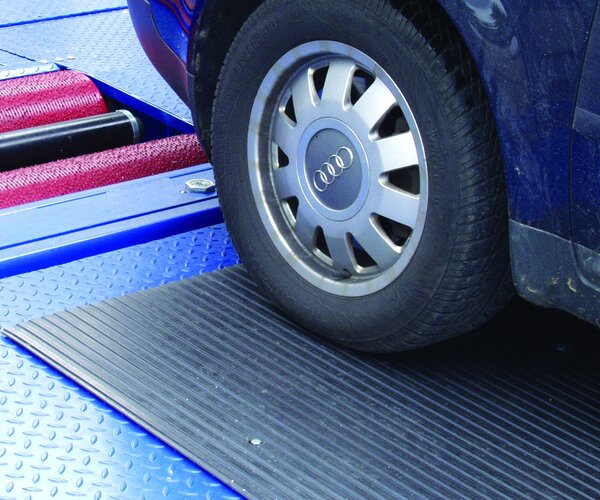

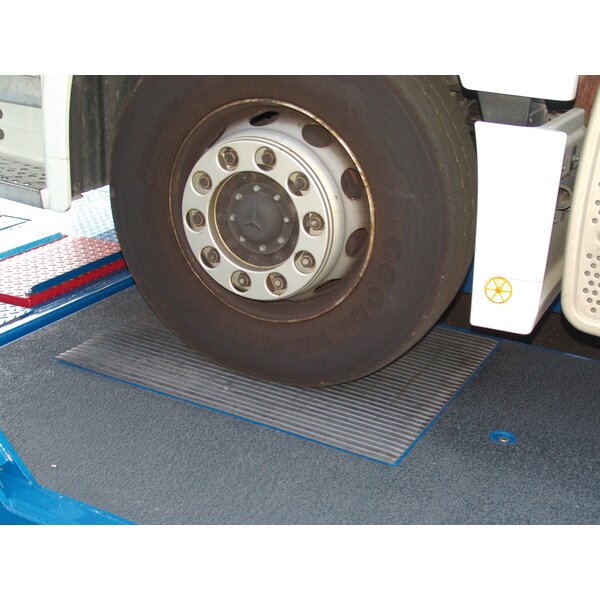

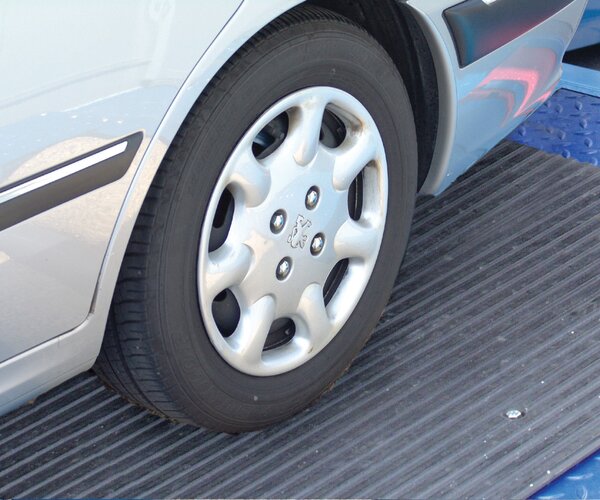

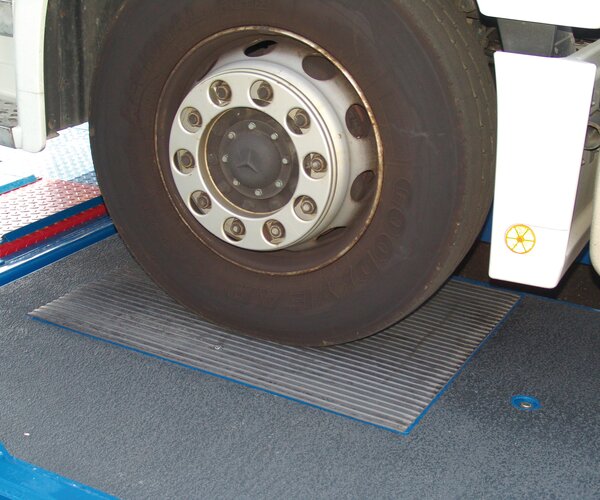

- MINC II EURO side slip tester

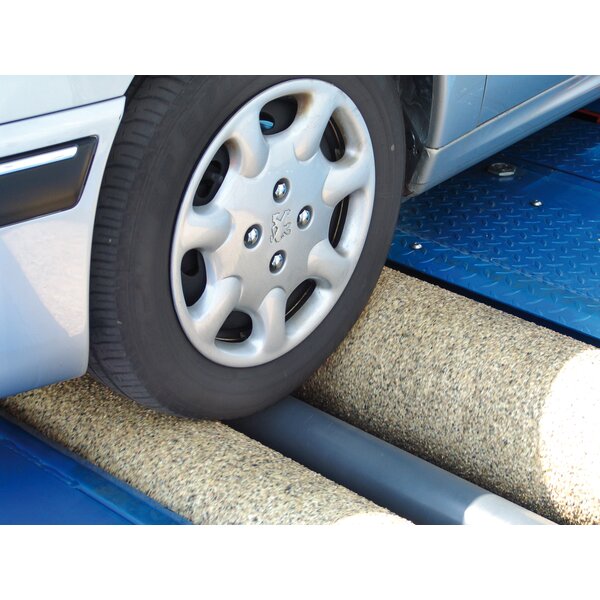

- MSD 3000 shock absorber tester

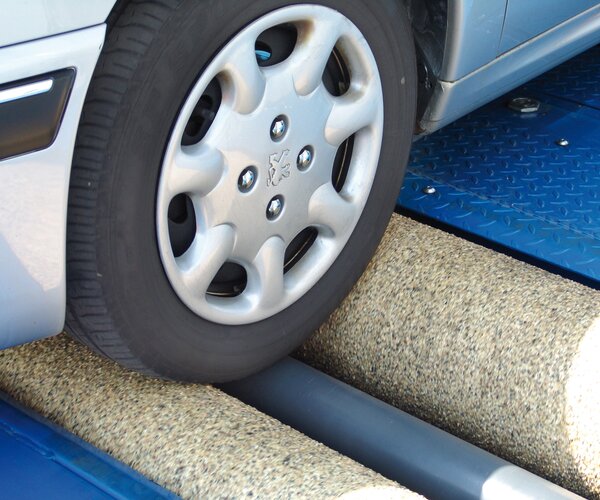

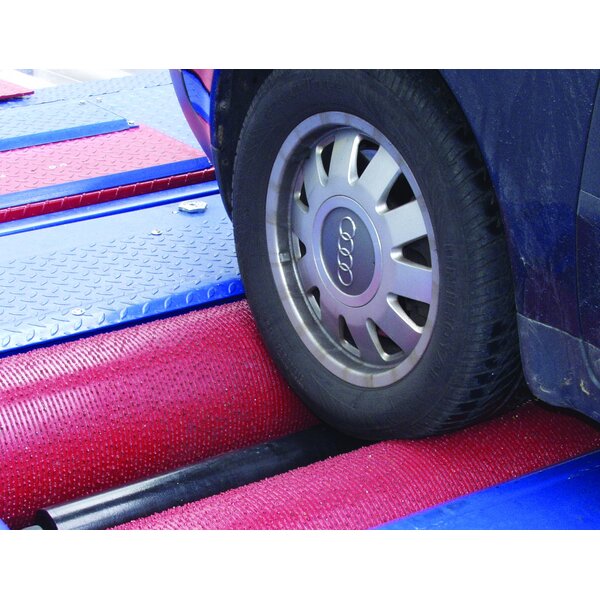

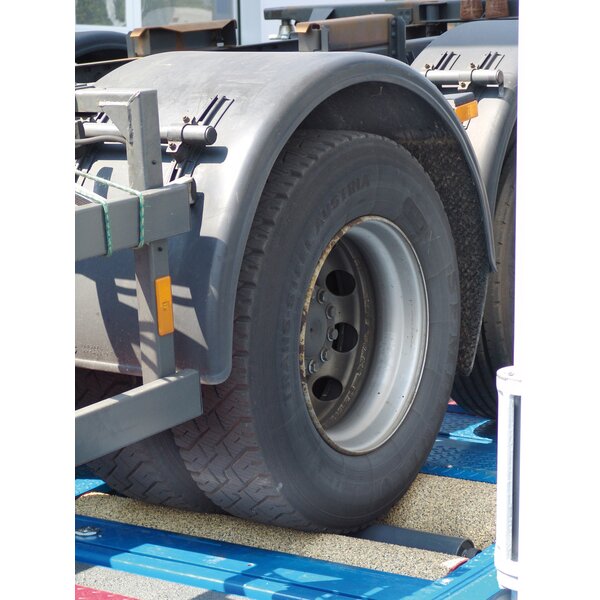

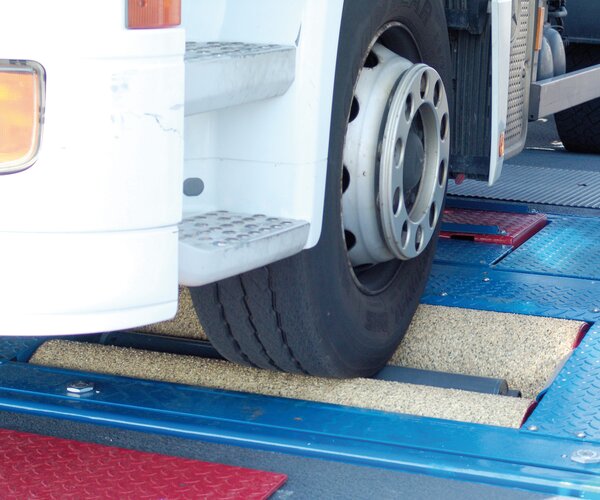

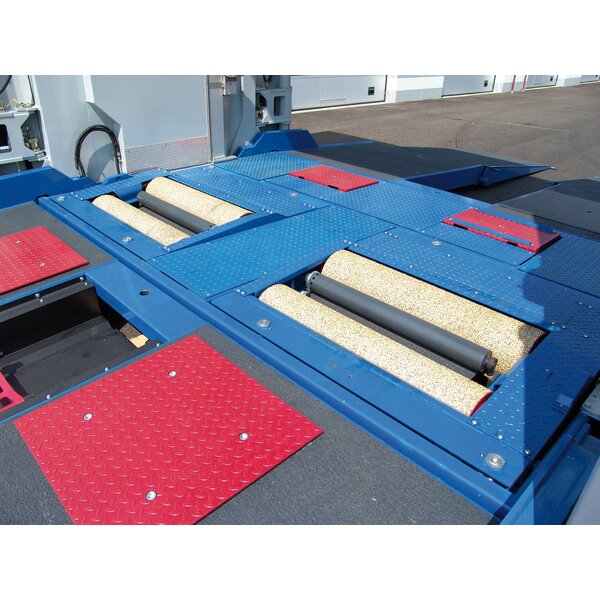

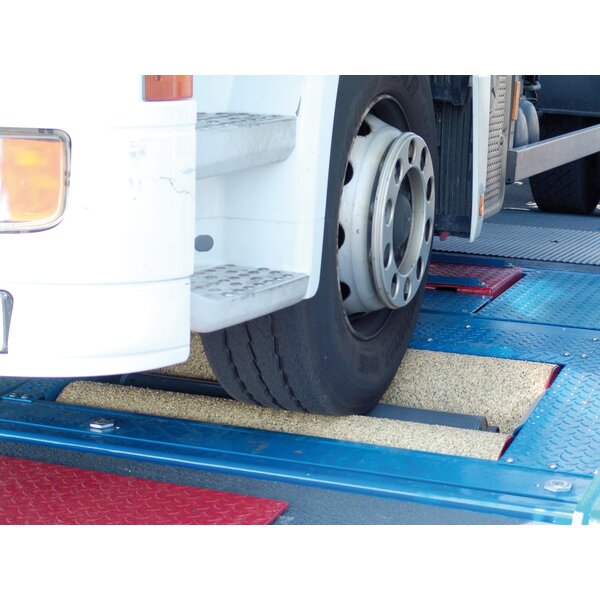

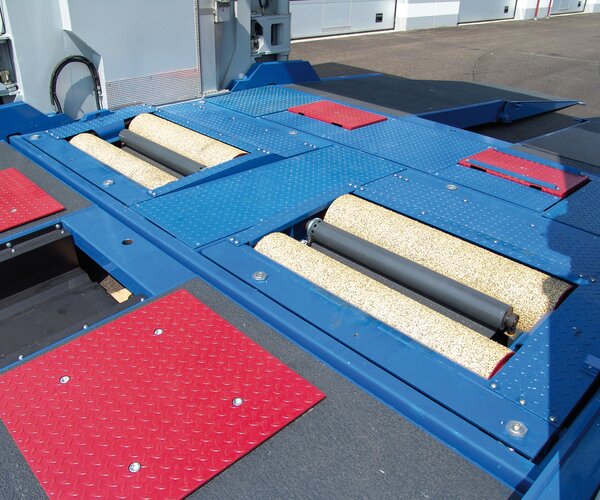

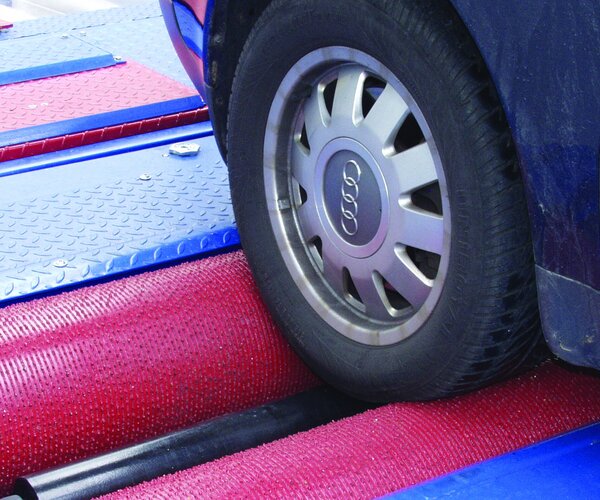

- MBT 7000 RS 3 brake tester with weighing system up to 18 t axle load (for operation with integrated power generator, drive power max. 2 x 9 kW)

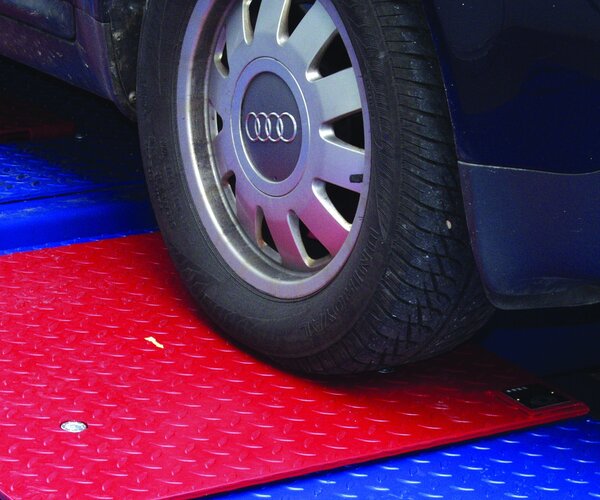

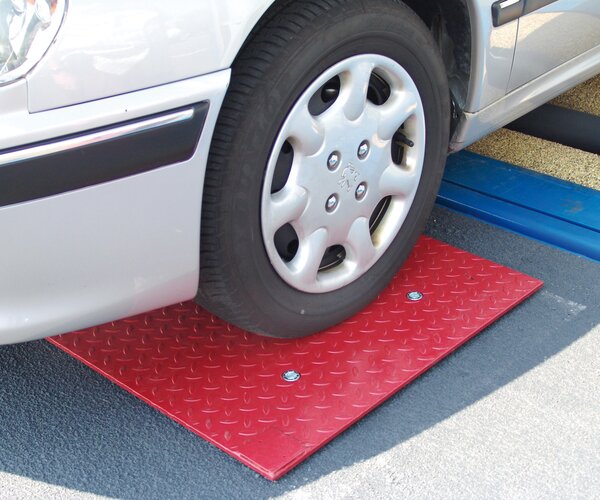

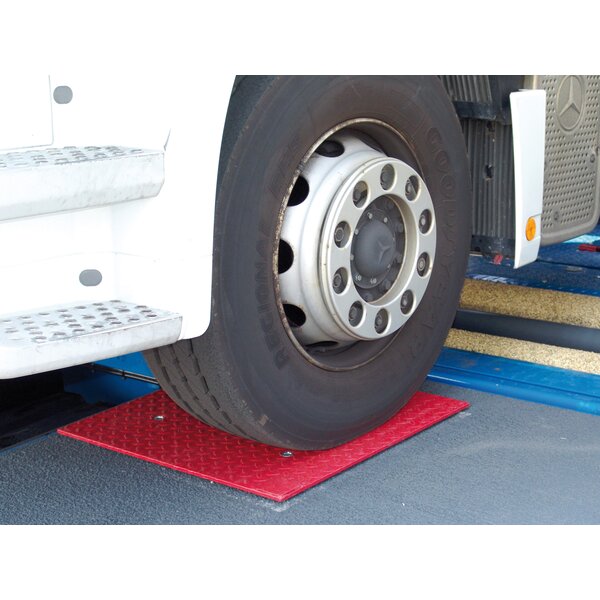

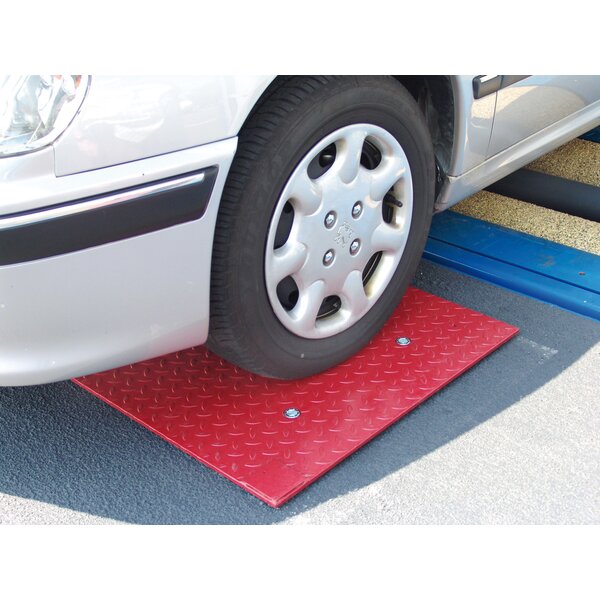

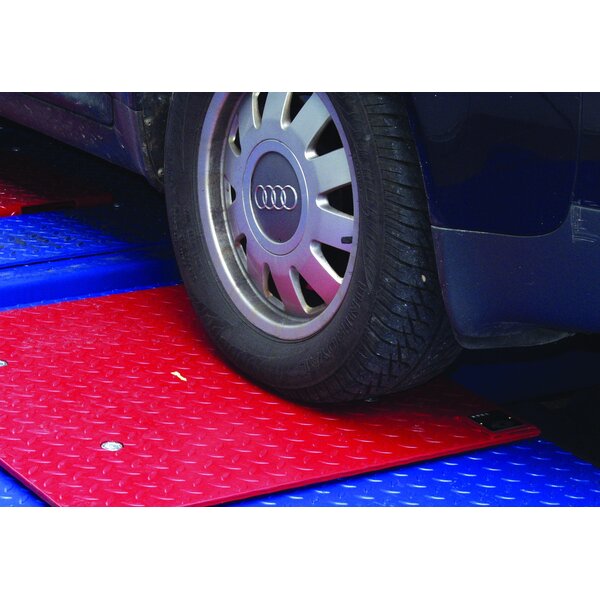

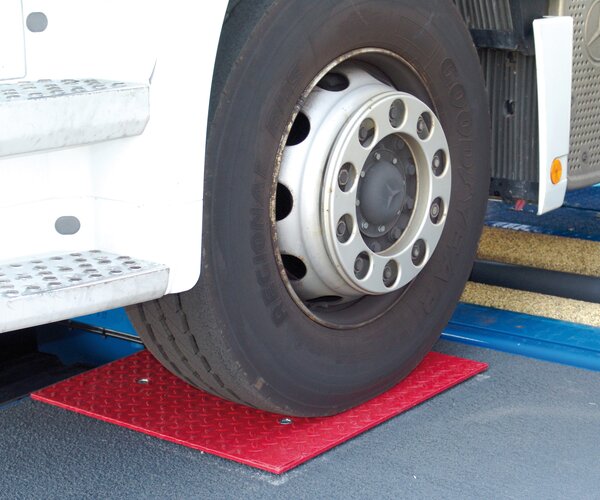

- LMS 20/2 axle play tester
- MLT 1000 / MLT3000 headlight tester
- MGT 5 / MDO 2-LON / MET-SERIES exhaust gas measuring instruments
- TWIN F IV 3.0 U MTL double scissor lift
Attention: The above mentioned devices are not included in the
scope of delivery
- incl. installation of the test devices
- Container cannot be stacked
Scope of delivery:
- Test containter MTL 15, installed and operational, including ordered test equipment
Technical Data
Technical data:
| Dimensions | |
| 20 ft. container (H x W x L) | 2590 x 2437 x 6056 mm |
| Weight (operational) | approx. 12500 kg |
| Mounting fittings ISO 1161 | |
| top | JOST CC297 TL, CC 298 TR |
| bottom | JOST CC299 TL, CC 300 BR |
| width of the test chamber max. | 3624 mm |
| Drive-through height of the test chamber | |
| (extended roof) | 4287 mm |
| Drive-through height of the test chamber | |
| (closed roof) | 1995 mm |
| Min. track width of the vehicles to be tested | 880 mm |
| Max. track width of the vehicles to be tested | 2550 mm |
| Axle load (depends on options) | 15 t |
| Fuse gG | 63 A |
| Power supply | 3/N/PE 400 V 50 Hz |
| Ambient temperature | -10°C to +45°C |
| Humidity | 100 % |
| Office | approx. 2m² |
| Ramp slope | max. 8° |
