FPS 2700 VP 230048

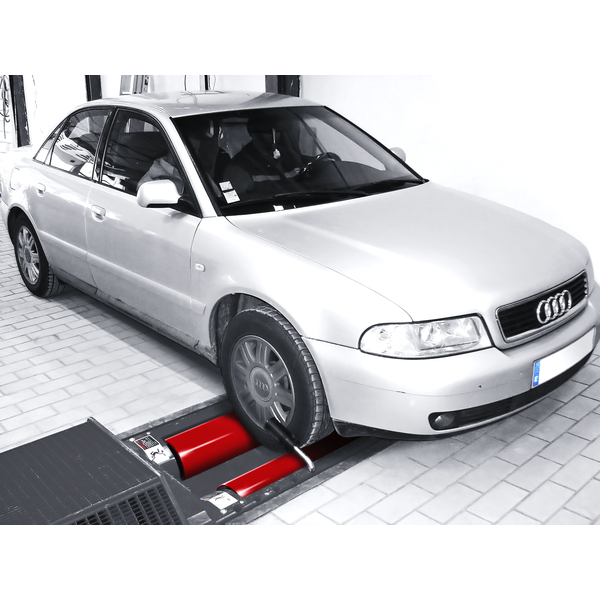

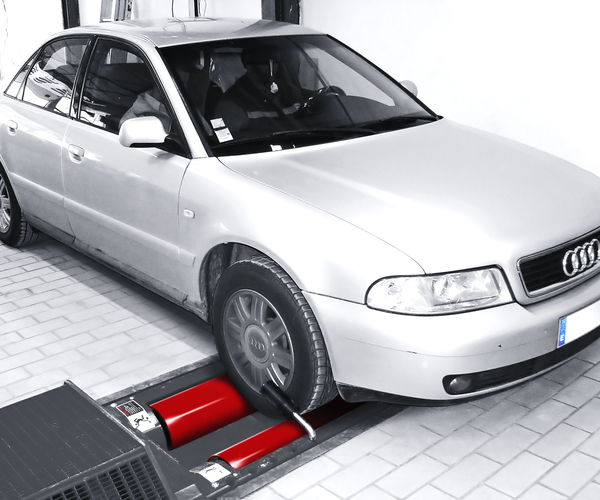

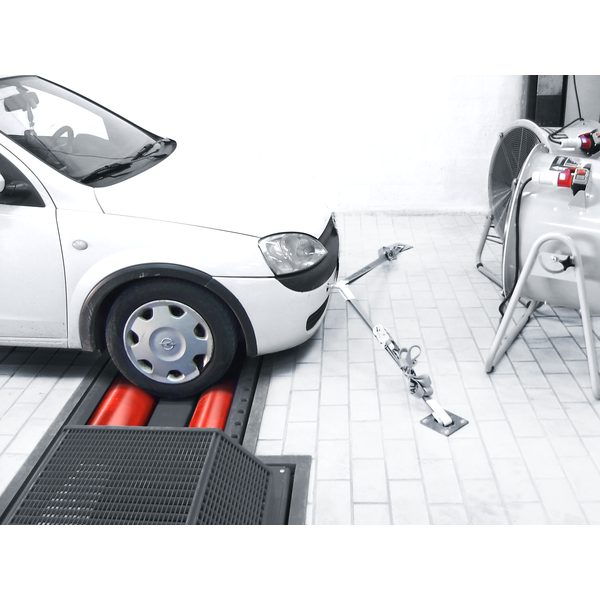

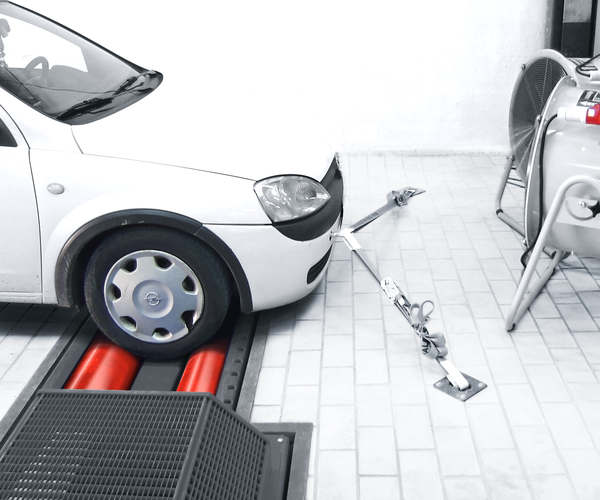

The FPS 2700 roller set is used in test centres and is suitable for vehicles with a single driven axle. It was designed for the exact measurement of the exhaust gas behaviour of vehicles during their transient emission test and permits a driving resistance simulation for the exhaust gas tests ASM-5015 and ASM-2525 (Acceleration Simulation Mode) in accordance with the specifications BAR '97. As a result of the increased tractive force of its eddy current brake, the FPS 2700 is additionally suitable for power measurements at constant speed and constant tractive force.

product details / scope of delivery

Description:

  • Transient emission testing for accurate analysis and measurement of emissions for vehicles under load (in conjunction with MAHA emission testers)
  • Precise power measurement with manual input of ambient data for standard power projection
  • Optimum reproducibility of results always guaranteed
  • Option of in-ground (foundation required for in-ground installation)
  • Optional connection of MAHA exhaust gas measuring instruments MGT 5, MDO 2 LON andMET 6


  • Graphic display of wheel power, drag power, standard engine power and torque
  • Discrete measurement using speed
  • Print-out in graphic and tabular form for accurate logged evaluation and analysis
  • Tachometer testing with upto ten freely selectable test points
  • Performance measurement (wheel power) possible in the operation modes:
    • constant speed
    • constant tractive force


  • Determination of wheel power, power dissipation, engine power and torque
  • Evaluation of performance diagrams via cursor function with digital display of measuring values at cursor position


  • Varnished with high-quality powder coating: Anthracite Grey, RAL 7016 (frame) Ruby red, RAL 3003 (rollers)


Standard Delivery:

  • Self-supporting closed roller set frame
  • Pneumatic lifting bar
  • Electric eddy-current brake
  • Control of the tester via serial interface RS 232
  • 10 m connection cable PC/laptop - function tester roller set


Downloads

Sales documents

Brochures
Brochure POWERDYNO
DE EN ES FR
Brochure (Printable version) POWERDYNO
DE EN ES FR
Technical Datasheet
Technical Datasheet FPS 2700
DE EN
Technical Datasheet (Printable version) FPS 2700
DE EN

Technical Data

TechnicalData:

Axle load2700 kg
Roller set
dimensions (LxW1/W2xH1/H2)3539x718/930x450/725 mm
Weightapprox. 1250 kg
Min. track736 mm
Max. track2438 mm
Roller diameter217 mm
Power supply230 V 50Hz
Fuse20 A, slow-blow
Compressed air for lifting bar6 - 10 bar
Min. testable wheel diameter450 mm
Driving directionone
Max.test speed200 km/h
Measurement accuracy (wheel power)+/- 3 %
Max. wheel power260 kW
Max. tractive force6 kN
Acceleration mode2700 kg
Packaging dimensions (L x W x H)4000 x 1100 x 1000 mm
Weight including packagingapprox. 1350 kg
