ASM-BF/2 4WD VP 230044

product details / scope of delivery

• Transient emission testing for accurate analysis and measurement of emissions for vehicles under load (in conjunction with MAHA emission testers)
• Driving resistance simulation for ASM-5015 and ASM-2525 emission tests (Acceleration Simulation Mode) in line with the BAR '97 specifications

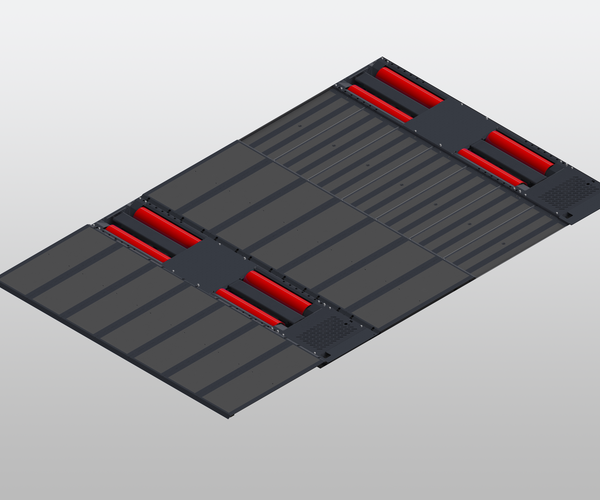

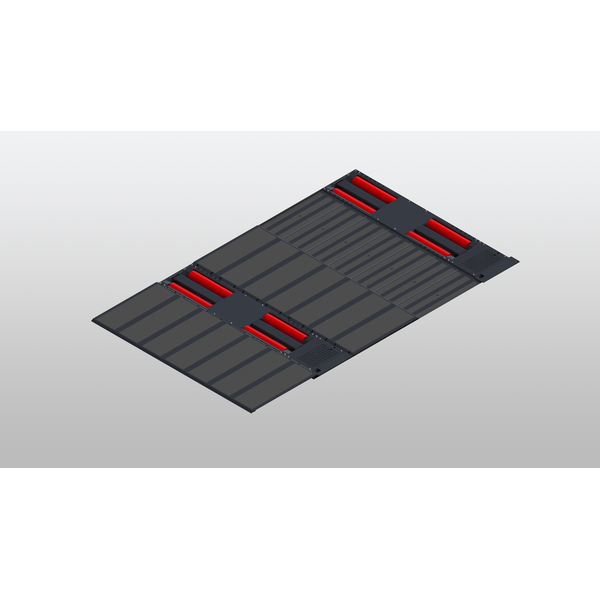

Roller Set Description and Standard Delivery

• Communication Desk MCD 2000
• Separate panel for control of roller set adjustment
• Self-supporting closed roller set frame

*2 pcs Roller set Model ASM-BF/1

• In-ground configuration, flush-floor installation of complete 4WD roller set, foundation necessary
• Pneumatic lifting bar
• Electric eddy-current brake with integrated flywheel
• AC-Motor including control and power electronics
• Foundation cover plate (traversable up to 3 t)
• Varnished with high-quality powder coating: Anthracite Grey, RAL 7016 (frame) Ruby Red, RAL 3003 (rollers)

Operating modes of the tester in conjunction with emissions
analyser or external PC:

• Driving resistance simulation for ASM-5015 and ASM-2525 emission tests (Acceleration Simulation Mode) in line with the BAR '97 specifications
• Driving resistance simulation for transient emissions

testing in line with standard test cycles (note: vehicle

• inertia simulation in deceleration mode limited to 2000 lbs (900 kg)
• Determination and compensation of equipment's own losses ('Parasitic losses') according to BAR'97 specifications. Acceleration of the roller set with built-in AC-Motor to approx. 50 km/h with subsequent performance of roll-off tests ('coast-down')
• Performance measurement (wheel power) possible in the operation modes:
  • constantspeed
  • constant tractive force
• Control of the tester via serial interface RS-232 (e.g. emissions analyser which meets ýÿBAR '97ýÿ specifications or an external PC)

Description Roller Set Adjusting Device:

• Hydraulic roller set adjustment with cover and sliding plates

• Test bench is not CE-compliant delivery to non-EU countries only
