product details / scope of delivery

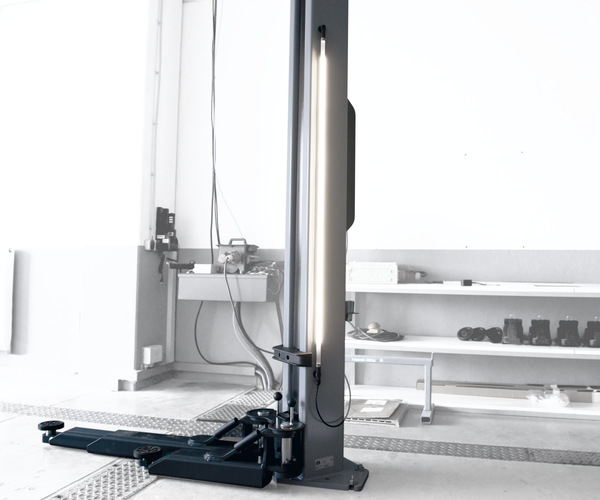

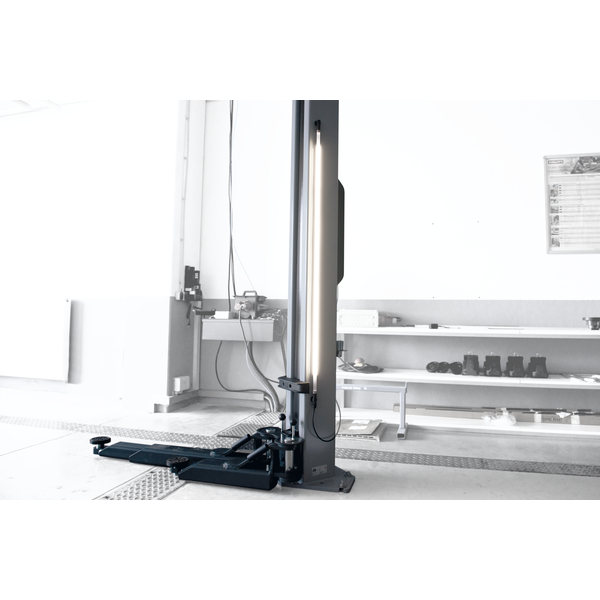

COMFORT version - options available
(colour, support aid, mounted on roller bearings)

  • RAL 5010 -

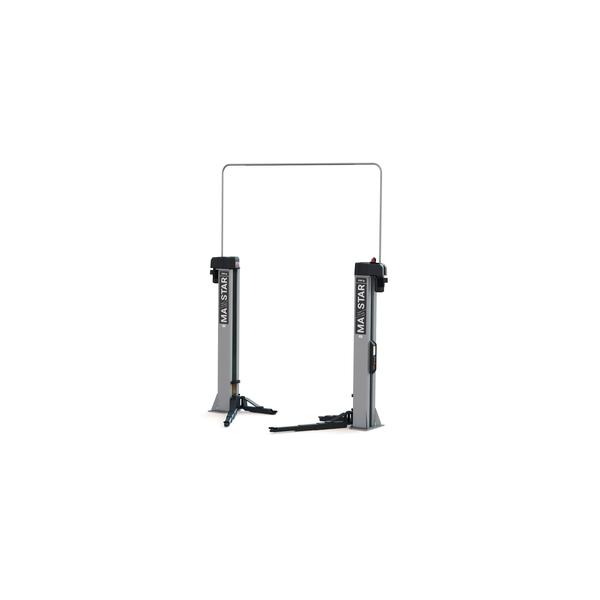

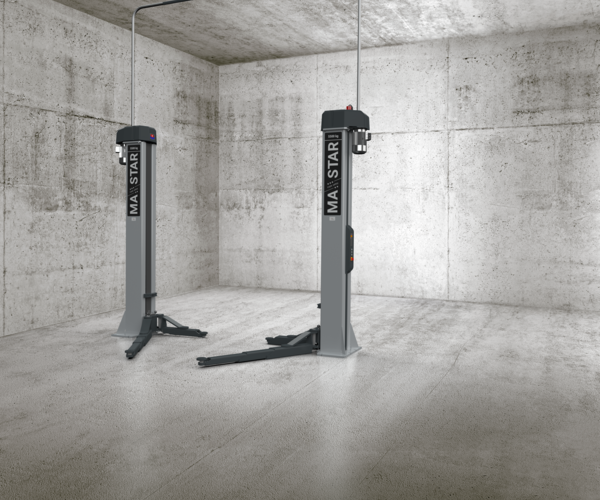

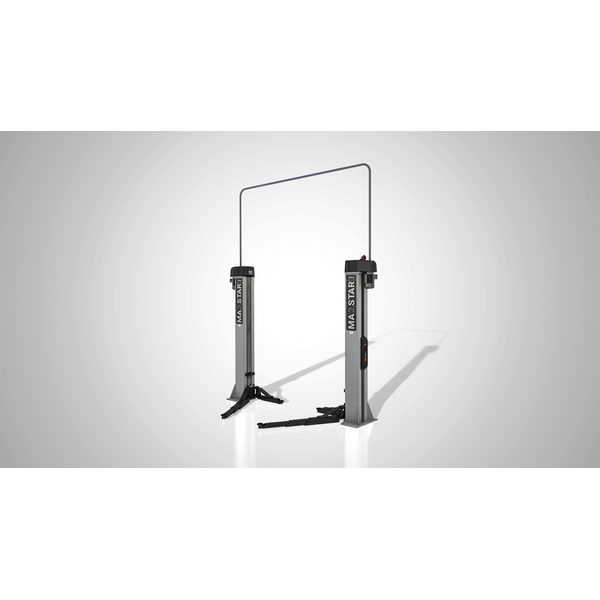

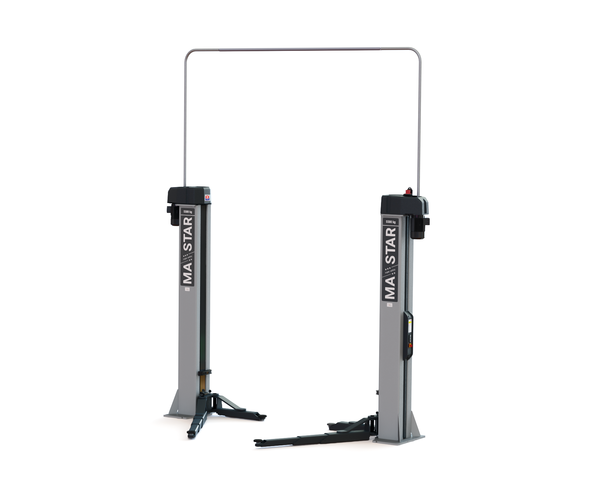

Description:

  • Load capacity 5500 kg
  • triple safety
  • Symmetrical support arms
  • Variable installation width
  • Lifting capabilities, from small cars, to transporters with long wheel bases
  • High-quality powder coating:
    • Gentian blu, RAL 5010 (columns)
    • Anthracite grey, RAL 7016 (lifting carriages, support arms)


Scope of delivery:

  • 2 columns with operating unit
  • 4 symmetrical support arms double telescopic

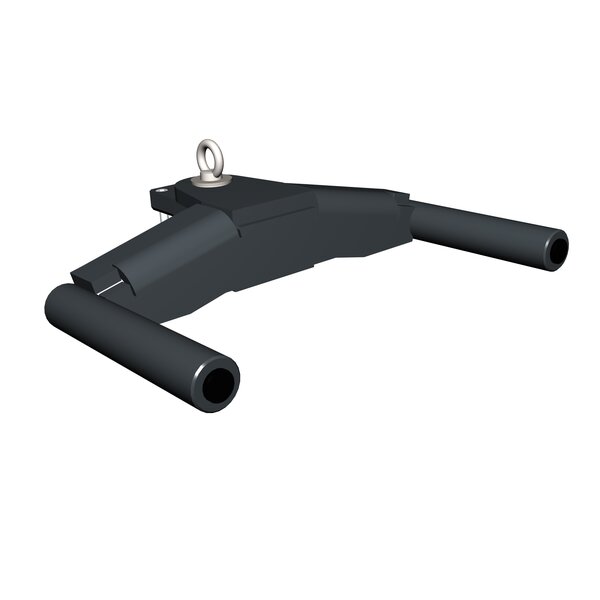

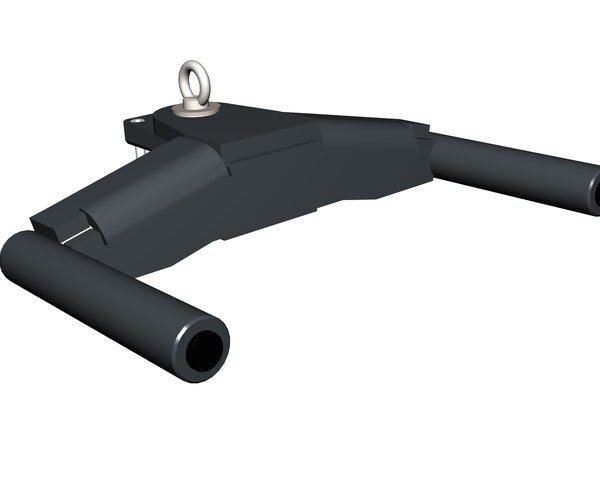

  • Support disc plug-in system
  • Cable bridge
  • Spindle oil (0.5 l)
  • Operating instructions
  • CE Declaration of Conformity
  • Transport packaging

Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions
Product drawings

Technical Data

Technical data:

Load capacity CE5500 kg
Max. lifting height2065 mm
Lifting / lowering time (load-dependent)approx. 40/40 s
Bottom clearance of the support arms120 mm
Adjustment range, support disc85 - 115 mm
Pick-up range, support arms965 - 1845 mm
Overall width*4200 mm
Outside base plates*3789 mm
Outside columns*3579 mm
Inside columns*2949 mm
Drive-through width2530 - 2780 mm
Column height3243 mm
Max. overall height (with cable bridge)5193 mm
Drive power2 × 4.0 kW
Power supply3/N/PE 400 V 50 Hz
FuseC32 A
Weight1320 kg
Packaging dimensions (L x W x H)
2 Packages à3185 x 800 x 1000 mm
Required concrete qualityC 20/25
Required thickness of concrete slab w/o screed min.180 mm

*Dimension based on Drive-through width 2630 mm
