M35-44R VP 252156

product details / scope of delivery

Description:

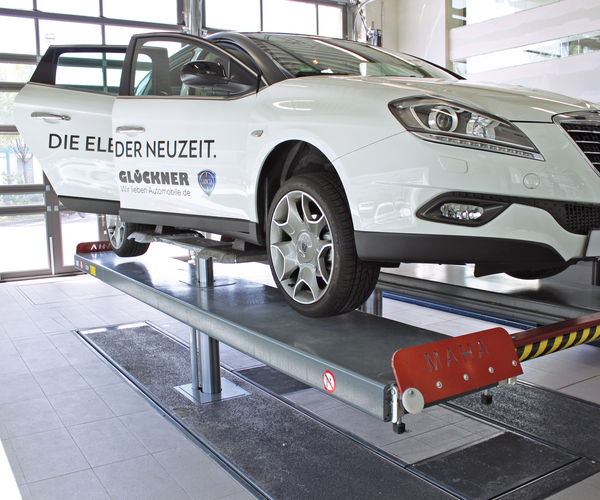

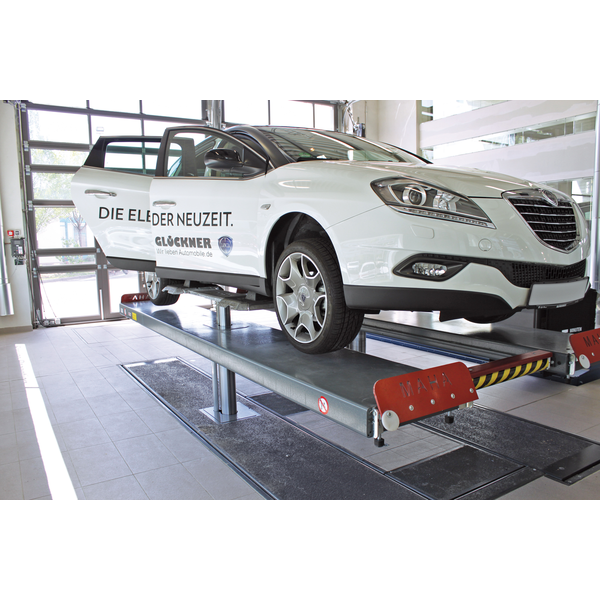

Two-post in-floor lift with driving platforms and Flat support
bridge

Description of driving platform:

• Driving platform length 4400 mm ideal for cars and small transporters
• Ample freedom of movement in the working area below the lifting platform thanks to the compact post-lifting unit and resulting optimum lighting below the raised vehicle in particular
• Flexible lift with maximum application range thanks to
  • rapid lifting of the vehicle with the main driving platforms in vehicle check-in, also for repair or for inspection work, otionally
  • wheel-free lifting by means of swing arm support standard up to 600 mm lifting distance or optionally with full extension up to 2000 mm
• Driving on to lift made easier and gentle on tyres thanks to extensions chamfered all the way round combined with low overall height with rubber support plate (only approx. 60 mm)
• Best possible vehicle spectrum thanks to very large support area resulting from exchangeable support plate system
• Flexible, optional assortment of support plates "longer - wider - flatter" provide optimum support of various vehicle types and for future vehicle generations
• A high-quality powder-coated platform covering assists in corrosion protection and adds a significant upgrade in terms of appearance
• Optional driving platform coating with granulate coating or Aluminium panelling
• Pre-integrated compressed air connection and optional 230V/1PH energy supply in runways
• Various assembly variants for optimum use with
  • driving platform resting on floor with low drive-on height and platform movement area with no tripping hazard edges
  • driving platforms flush with floor to facilitate driving onto the lift, no protruding assemblies in the lift area
  • driving platforms flush with floor to facilitate driving onto the lift, no protruding assemblies in the lift area with complete floor levelling of the platform movement area with no tripping hazard edges
• Driving platform and floor levelling pre-equipped for use of an optional axle lift
• Additional corrosion protection treatment in area of fold and cavity sealing
• Optional no-dazzle rotatable LED lighting
• Pinch point and shear point protection thanks to CE stop

MAESTRO lift unit:

• A corrosion-resistant, hard-chrome plated hydraulic piston ensures long-term stability since this is immersed in hydraulic oil with every lift, thus ensuring the application of a latent protective film.
• Simple, suspended installation of the lifting platform - offering the advantage of power transmission directly into the hall floor
• Ultra-quiet hydraulic pump and electric motor, corrosion-resistant oil-submerged version, optionally available with organic oil
• Electronic lift control with visual error display
• Battery-operated emergency lowering
• Optimisation of every aspect of workplace ergonomics thanks to optional, standard-independent control via traffic-light energy module or flush-mounted switching system

Scope of delivery:

• Driving platform 4400 mm powder-coated Anthracite Grey (RAL 7016)
• Wheel-free jack flat support bridge hot-dip galvanised
• Lift unit with integrated after-lift device
• Ramps and drive-on plates
• Rapid-action compressed-air coupling mounted on driving platform
• Wiring and mounting material
• Installation box/installation frame not included in delivery
• Emergency DOWN cable for connection to switch box
• Control unit with 4 x 10 m control cables (flexible oil cables)
• Lockable master switch
• Operating manual and test log
• EC Declaration of Conformity CE
