M35-44MF VP 252185

product details / scope of delivery

Description:

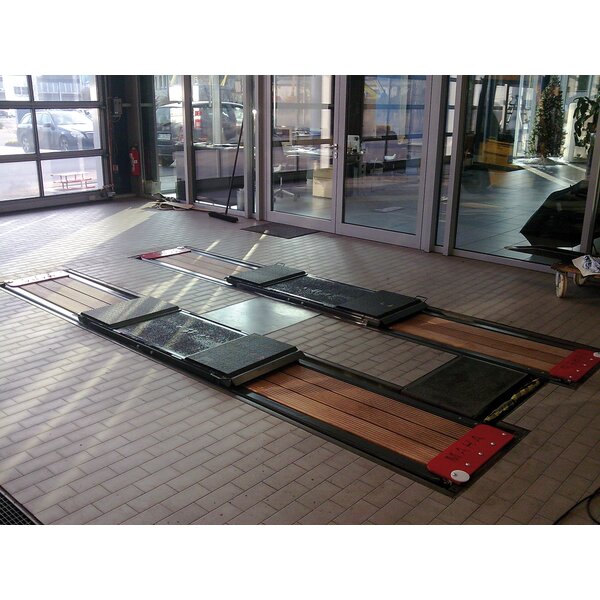

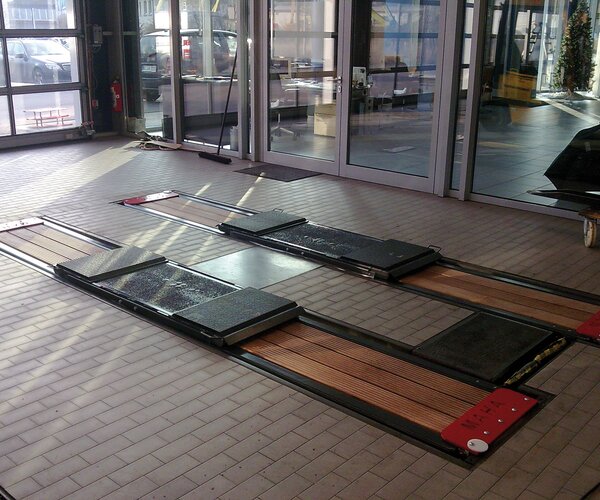

Two-post in-floor lift with modular driving platforms and
platform support

Description of modular driving platforms:

• Driving platform length 4400 mm, 80 mm tall, ideal for cars
• The ideal lifting platform for any service consultation area
• Attractive driving platform inserts, optionally made of:
  • Durable Bangkirai hardwood from sustainable forestry
  • Galvanised steel grille
  • Sheet steel with high-quality powder coating
  • Sheet steel with anti-slip granulate coating
  • Sheet steel with elegant aluminium panelling
• Ample freedom of movement in the working area below the lifting platform thanks to the compact post-lifting unit and resulting optimum lighting below the raised vehicle in

particular

• Flexible lift with maximum application range thanks to
  • Fast hoisting of the vehicle with the main platforms in the service consultation area or for chassis alignment checks
  • also for repair or for inspection work
  • wheel-free lifting by means of swing arm support standard up to 600 mm lifting distance or optionally with full extension up to 2000 mm
• Wheel-free jack extension elements infinitely adjustable while jack is in its starting position, thereby eliminating the need for time-consuming jacking for set-up and functioning as an interim means of stopping the jack from moving backwards in emergency cases
• Lift can be driven onto easily thanks to wheel-free jack platforms with full driving platform width
• Wheel-free jack holder fully granulate-coated as standard
• Various assembly variants for optimum use with
  • driving platform resting on floor with low drive-on height and platform movement area with no tripping hazard edges
  • driving platforms flush with floor to facilitate driving onto the lift, no protruding assemblies in the lift area
• Optional no-dazzle rotatable LED lighting
• Pinch point and shear point protection thanks to CE stop

MAESTRO lift unit:

• A corrosion-resistant, hard-chrome plated hydraulic piston ensures long-term stability since this is immersed in hydraulic oil with every lift, thus ensuring the application

of a latent protective film.

• Can be installed in all MAHA installation boxes up to 5500 kg
• Simple, suspended installation of the lifting platform - offering the advantage of power transmission directly into the hall floor
• Ultra-quiet hydraulic pump and electric motor, corrosion-resistant oil-submerged version, optionally available with organic oil
• Electronic lift control with visual error display
• Battery-operated emergency lowering
• Optimisation ofevery aspect of workplace ergonomics thanks to optional, standard-independent control via traffic-light energy module or flush-mounted switching system

Scope of delivery:

• Modular driving platform 4400 mm powder coated anthracite

(RAL 7016) with selected driving platform surface

• Wheel-free jack platform powder-coated anthracite (RAL 7016)
• Lift unit with integrated after-lift device
• Ramps (2x2 pcs.)
• Wiring and mounting material
• Installation box/installation frame not included in delivery
• Emergency DOWN cable for connection to switch box
• Control unit with 4 x 10 m control cables (flexible oil cables)
• Lockable master switch
• Operating manual and test log
• EC Declaration of Conformity CE
