product details / scope of delivery

Description:

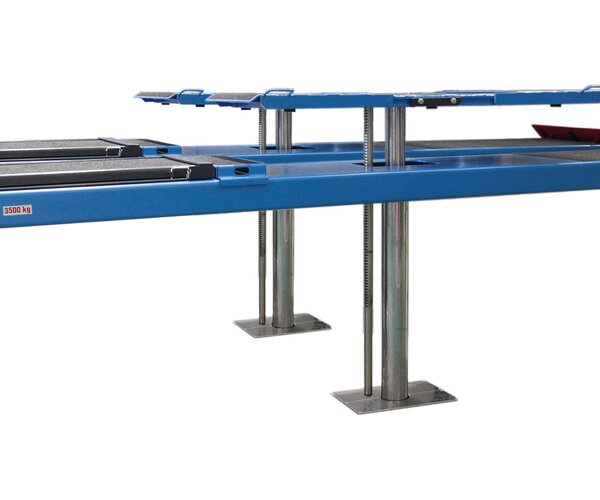

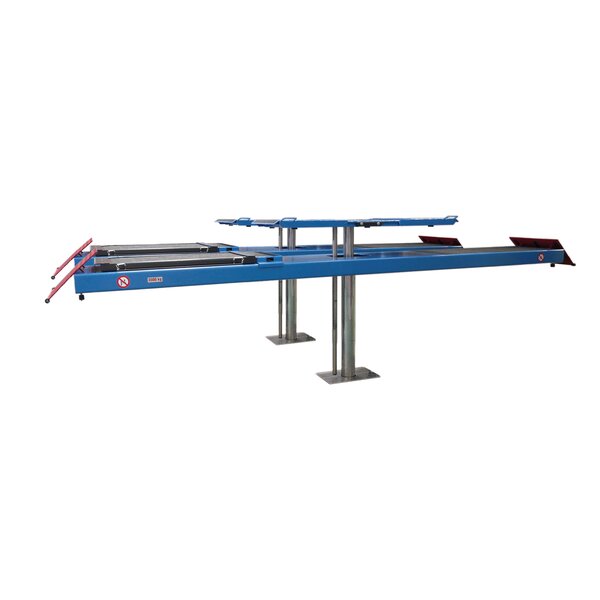

Two-post in-floor lift with driving platforms and Platform
support

Description of driving platform:

  • Driving platform length 4400 mm ideal for cars and small transporters
  • Ample freedom of movement in the working area below the

lifting platform thanks to the compact post-lifting unit and

  • resulting optimum lighting below the raised vehicle in particular
  • Flexible lift with maximum application range thanks to
    • Fast hoisting of the vehicle with the main platforms in the service consultation area or for chassis alignment checks
    • also for repair or for inspection work
    • wheel-free lifting by means of Platform support standard up to 600 mm lifting distance or optionally withfull extension up to 2000 mm
  • Optionally, can be upgraded to vehicle check-in lift with driving platform levelling for level driving
  • Optional conversion to chassis measurement lift with precisely aligned driving platforms, sliding plates for tension-free wheel support, driving platform levelling and axle measurement supports
  • Wheel-free jack extension elements infinitely adjustable while jack is in its starting position, thereby eliminating the needfor time-consuming jacking for set-up and functioning as an interim means of stopping the jack from moving backwards in emergency cases
  • Lift can be driven onto easily thanks to wheel-free jack platforms with full driving platform width
  • Wheel-free jack holder fully granulate-coated as standard
  • A high-quality powder-coated platform covering assists in corrosion protection and adds a significant upgrade in terms of appearance
  • Optional driving platform coating with granulate coating or Aluminium panelling
  • Pre-integrated compressed air connection and optional 230V/1PH energy supply in runways
  • Various assembly variants for optimum use with
    • driving platform resting on floor with low drive-on height and platform movement area with no tripping hazard edges
    • driving platforms flush with floor to facilitate driving onto the lift, no protruding assemblies in the lift area
    • driving platforms flush with floorto facilitate driving onto the lift, no protruding assemblies in the lift area with complete floor levelling of the platform movement area with no tripping hazard edges
  • Driving platform and floor levelling pre-equipped for use of an optional axle lift
  • Additional corrosion protection treatment in area of fold and cavity sealing
  • Optional no-dazzle rotatable LED lighting
  • Pinch point and shear point protection thanks to CE stop


MAESTRO lift unit:

  • Acorrosion-resistant, hard-chrome plated hydraulic piston ensures long-term stability since this is immersed in hydraulic oil with every lift, thus ensuring the application of a latent protective film.
  • Simple, suspended installation of the lifting platform - offering the advantage of power transmission directly into the hall floor
  • Ultra-quiet hydraulic pump and electric motor, corrosion-resistant oil-submerged version, optionally available with organic oil
  • Electronic lift control with visual error display
  • Battery-operated emergency lowering
  • Optimisation of every aspect of workplace ergonomics thanks to optional, standard-independent control via traffic-light energy module orflush-mounted switching system


Scope of delivery:

  • Driving platform 4400 mm, Wheel-free jack platform, powder-coated Anthracite Grey (RAL 7016)
  • Lift unit with integrated after-lift device
  • Ramps and drive-on plates
  • Rapid-action compressed-air coupling mounted on driving platform
  • Wiring and mounting material
  • Installation box/installation frame not included in delivery
  • Emergency DOWN cable for connection to switch box
  • Control unit with 4 x 10 m control cables (flexible oil cables)
  • Lockable master switch
  • Operating manual and test log
  • EC Declaration of Conformity CE

Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical data:

Load capacity CE3500 kg
Load capacity CE wheel-free jack3500 kg
Dimensions of
driving platform (L x W x H)4400 x 617 x 126 mm
Inner drive-through width840 mm
Total dimensions (L x W x H)5471 x 2074 x 186 mm
Max. lifting height2090 mm
Lifting distance, wheel-free jack600 mm

-Wheel-free jack lengthways holder,

continuous1325 - 2042 mm
Wheel-free jack crosswise holder840 - 2074 mm
Wheel-free jack installation height60 mm
Post diameter125/90 mm
Post spacing1350 mm
Installation depth2380 mm
Lifting/lowering time depending on loadapprox. 35/35 s
Lifting/lowering time of
wheel-free jack depending on loadapprox. 11/11 s
Hydraulic oil volume (not included)approx. 108 l
Operating pressure28 bar
Control unit (H x W x D)400 x 280 x 120 mm
Drive power3.0 kW
Fuse gG16 A
Power supply3/N/PE 400 V 50 Hz
