product details / scope of delivery

Description:

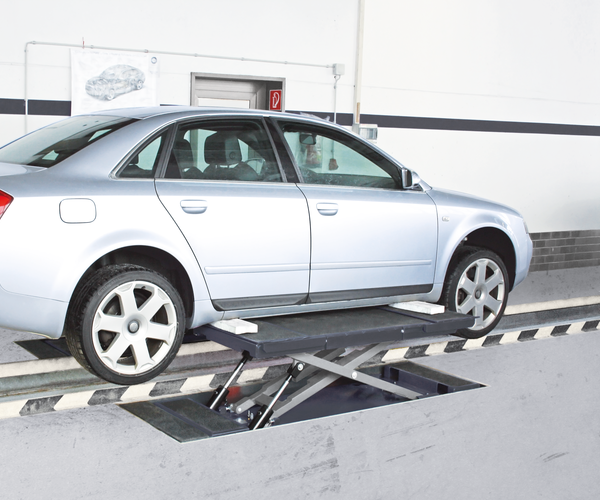

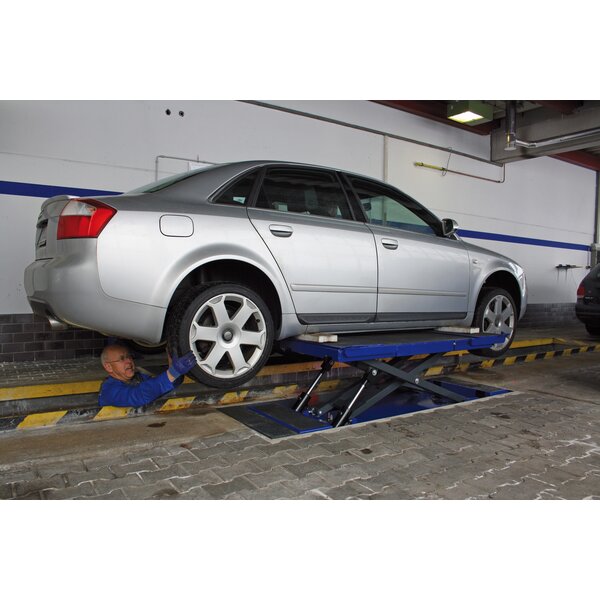

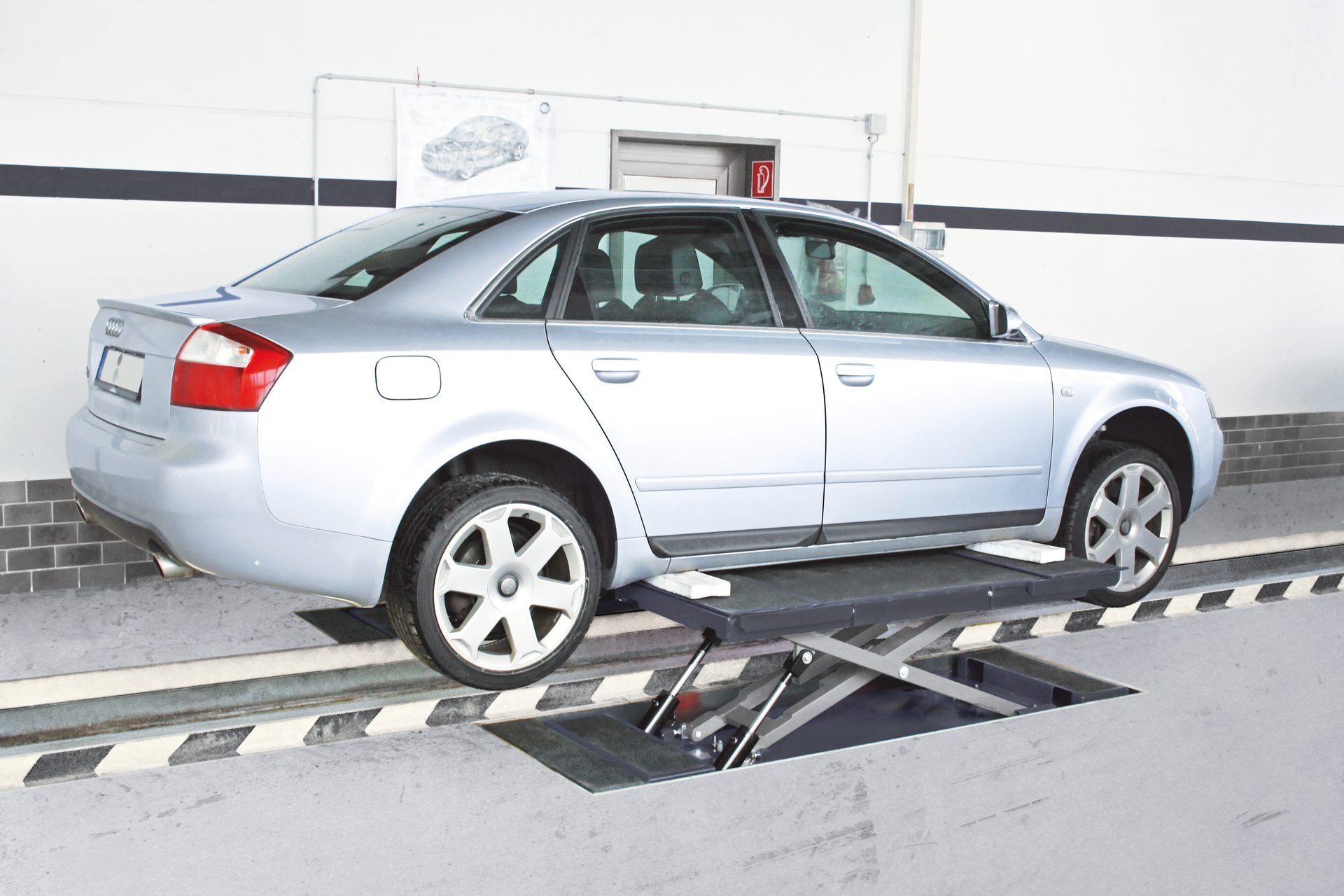

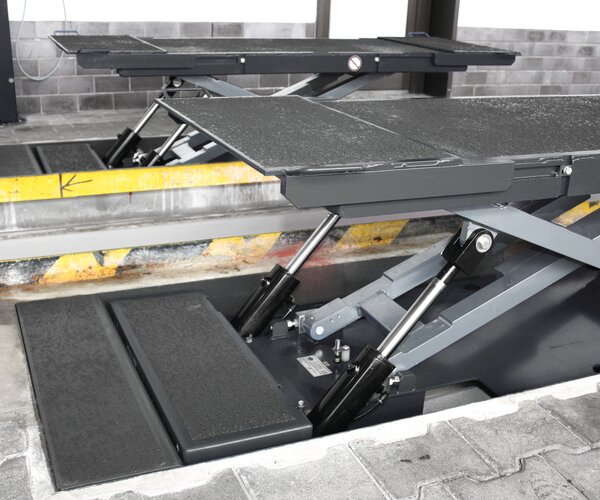

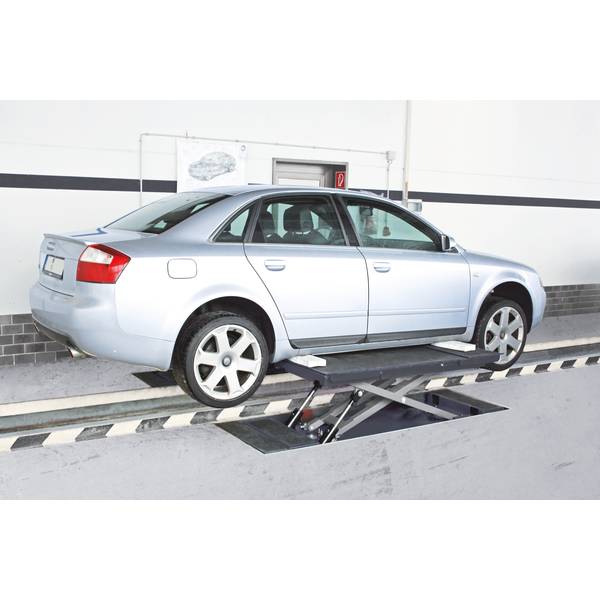

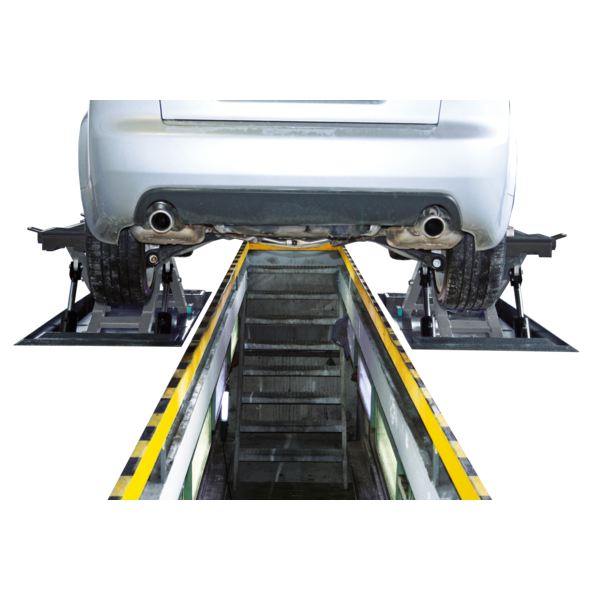

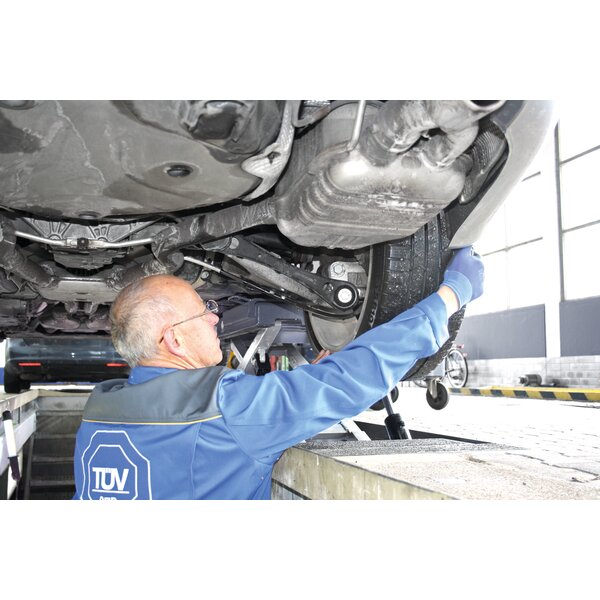

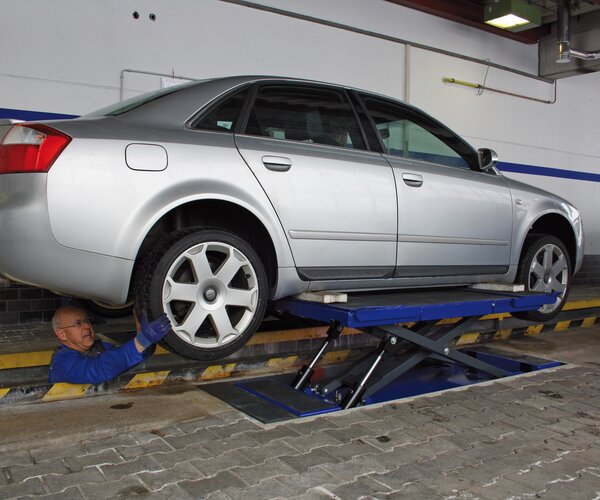

  • Flush-floor installation over pit, no mechanical connection between both scissors units

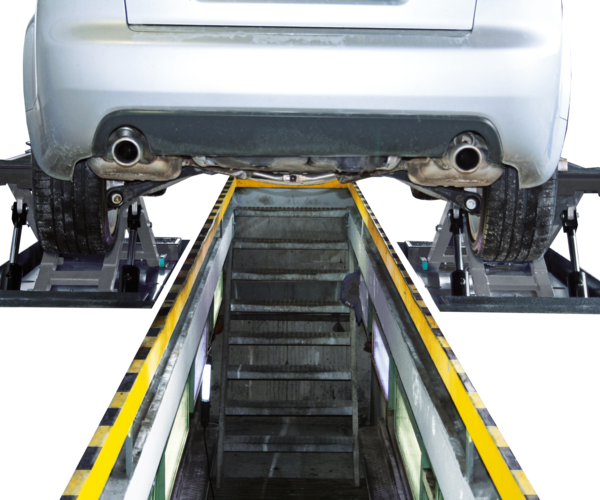

  • Traversable axle load: 10 t, ideal for installation in HGV pits
  • Automatic levelling in fully lowered position

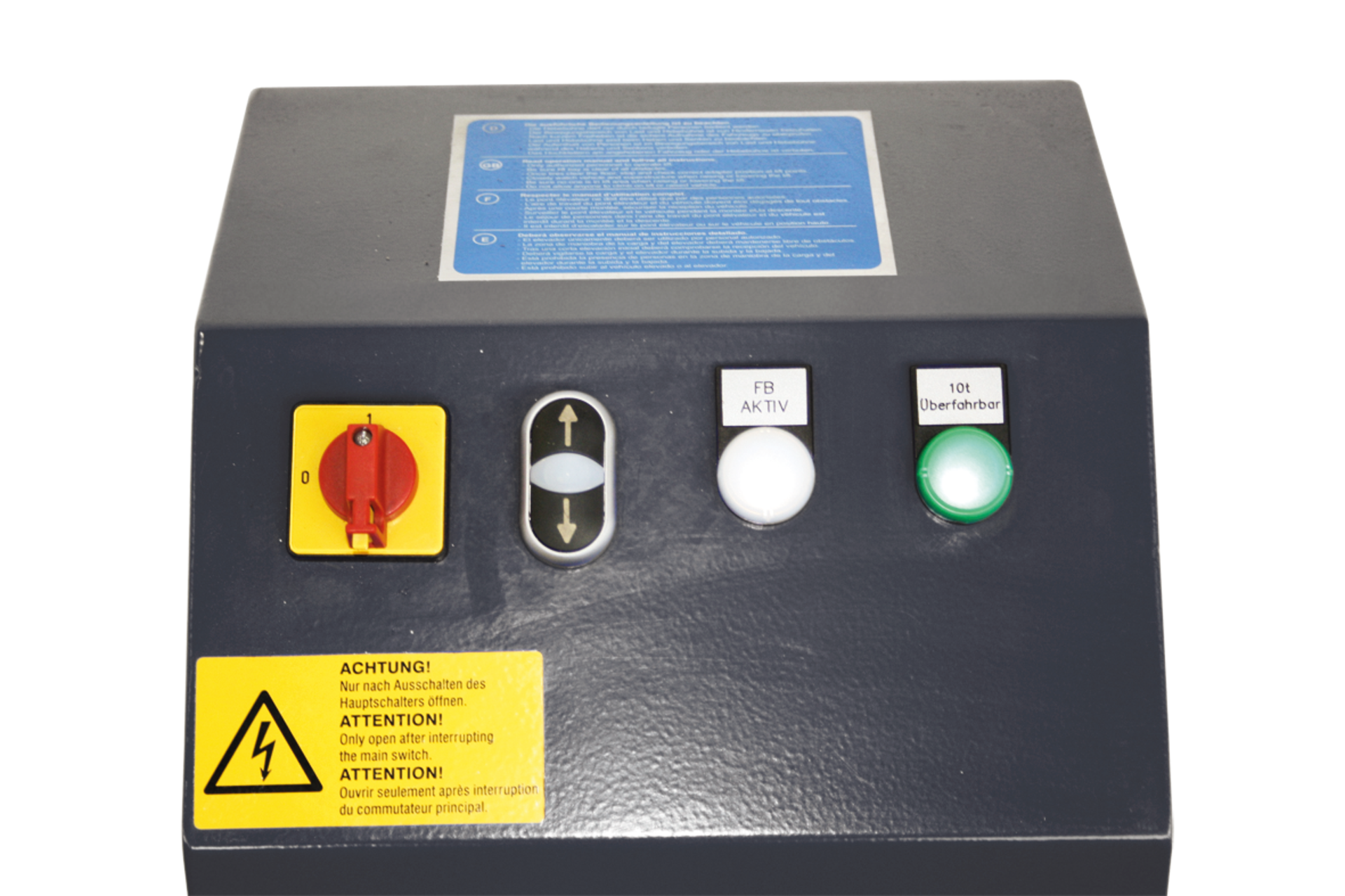

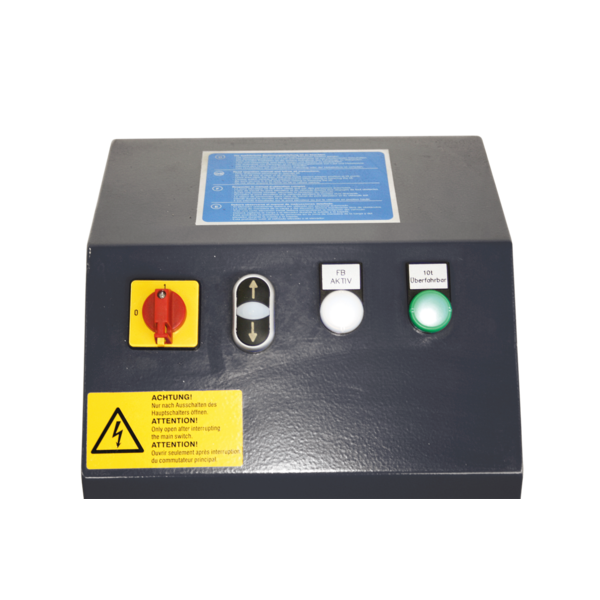

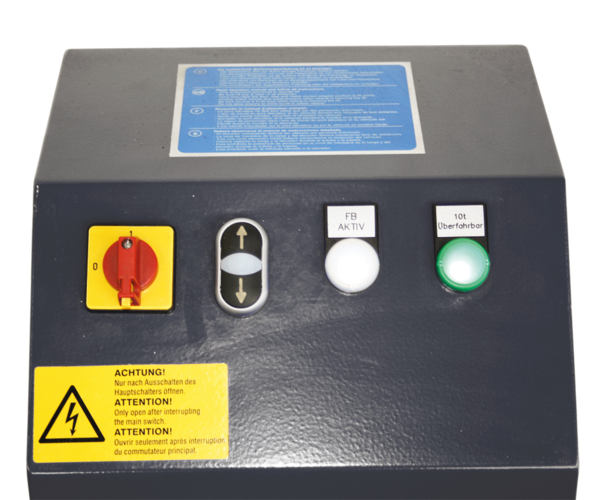

  • Drive-on clearance light on control desk indicating platform is fully lowered
  • In-ground pit installed as permanent formwork, supplied separately (in advance)
  • Load capacity 3.5 t
  • Generous lifting height: 450 mm (from floor level)
  • Generous support plate extension from 1500 mm to 2000 mm
  • Generous width of support plates
  • Brief lifting and lowering time 9 s/9 s

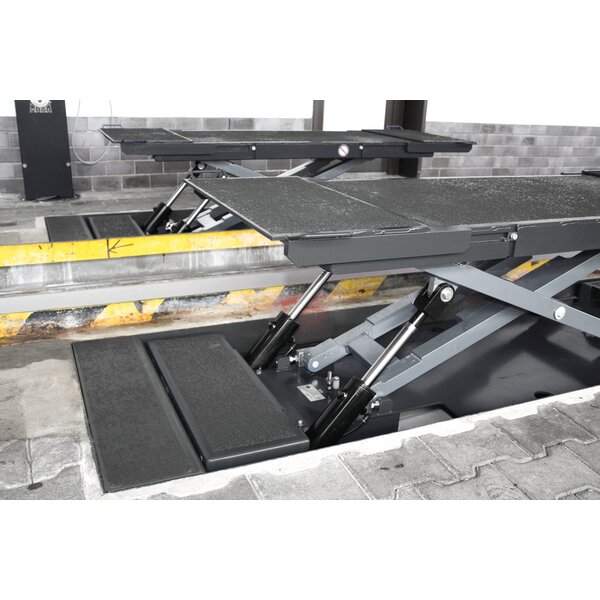

  • High degree of safety with 2 cylinders on each scissor side (double master-slave system)
  • Cylinders positionedon outer scissors, ensuring high lateral stability
  • No air supply required

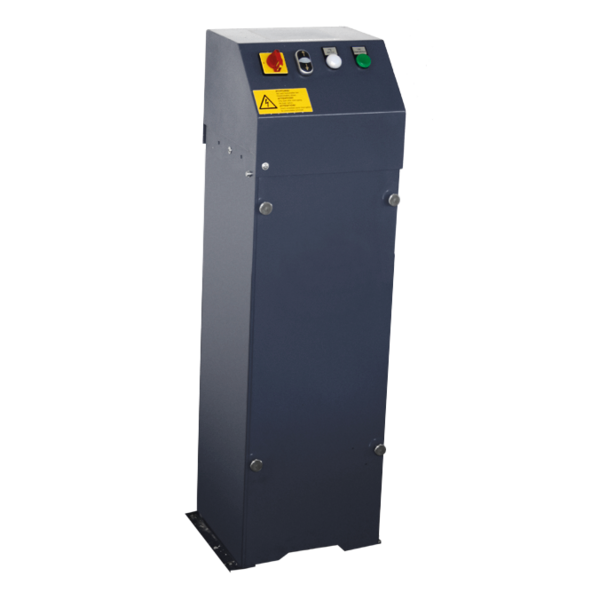

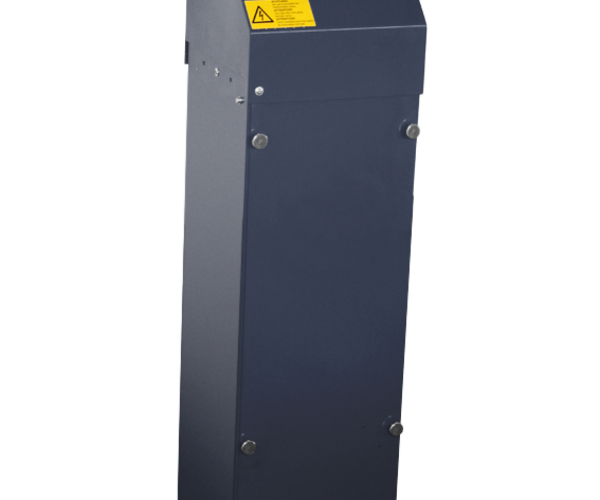

  • Space-saving upright control desk

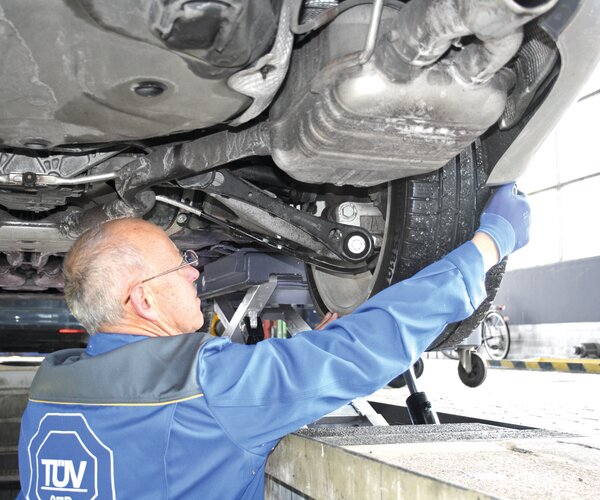

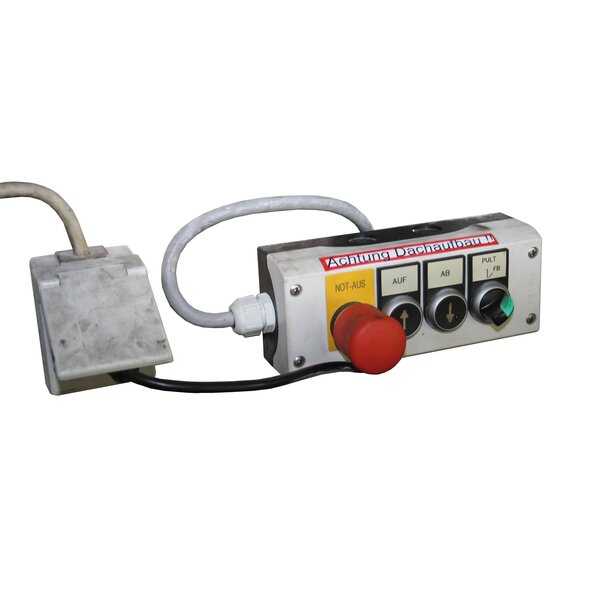

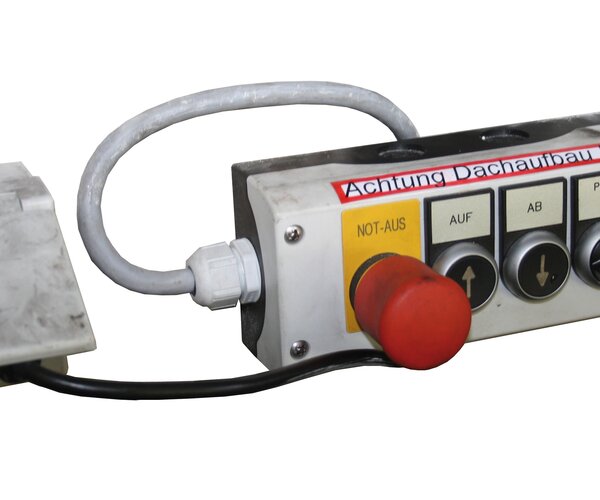

  • Additional operating unit for pit installation, with selector switch and emergency stop switch
  • Manual lowering mechanism included, easily and safely operable from control desk
  • Crushing and shearing protection due to CE stop
  • Varnished with high-quality powder coating:
    • Anthracite Grey, RAL 7016 (Support Plates, Base frame, Scissors)
    • WindowGrey, RAL 7040 (Control Desk)


Standard delivery:

  • Pit Wheel-Free Jack MPL 3.5 Model
  • Operation desk with control and hydraulic unit
  • Additional operating unit for pit installation
  • Hydraulic hoses and pipes for pit installation: max. distance platform - unit 2 m
  • Operating manual and test log
  • EC CE declaration of conformity
  • Transport packaging


--------------------------------------------------------------
CAUTION:
Only in conjunction with foundation pit VZ 972375
SUPPLIED SEPARATELY (IN ADVANCE)
--------------------------------------------------------------

Downloads

Sales documents

Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Load capacity CE3500 kg
Max. lifting height450 mm
Lifting/lowering time,
dependent on loadapprox. 9 s / 9 s
Installation depth260 mm
Width of support plates683 mm
Length of support plates1500 - 2000 mm
Drive power2.2 kW
Operating pressure170 bar
Total width (depending on pit), recommended2250 mm
Power supply3/N/PE 400 V 50 Hz
gG fuse16 A
Shear protectionaudible alarm
Weight including packaging1100 kg
Packagingdimensions (L x W x H)2100 x 800 x 500 mm
Foundation pit
packaging dimensions (L x W x H)2360 x 1000 x 700 mm
Hydraulic oil volume10 l
