product details / scope of delivery
Description:

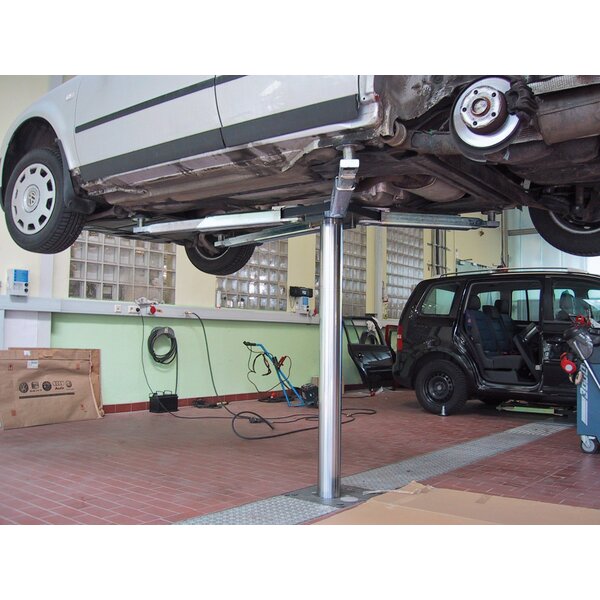

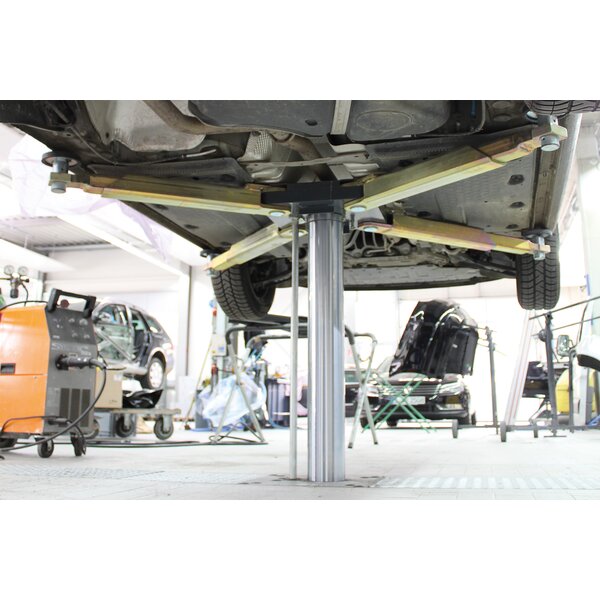

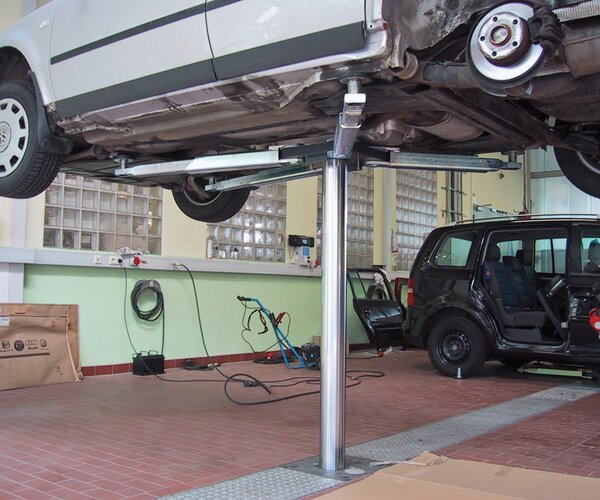

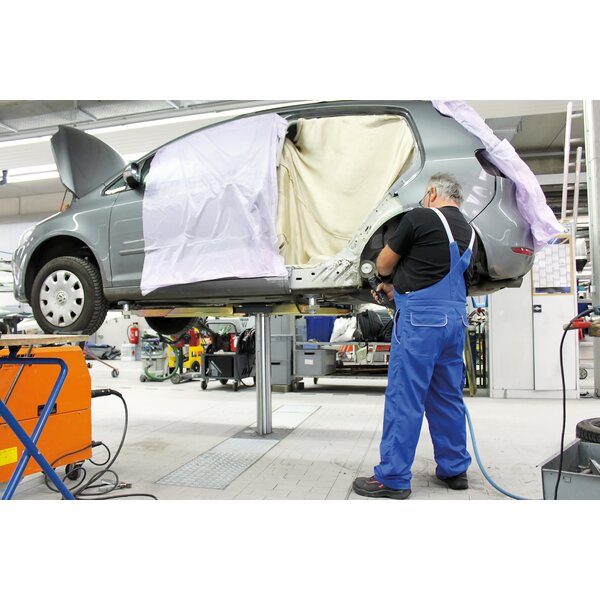

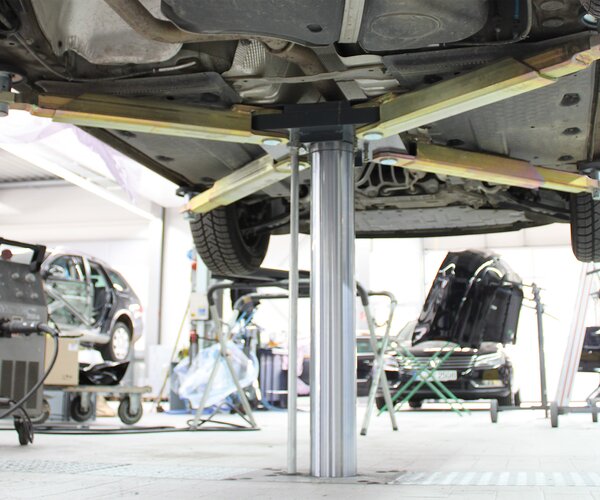

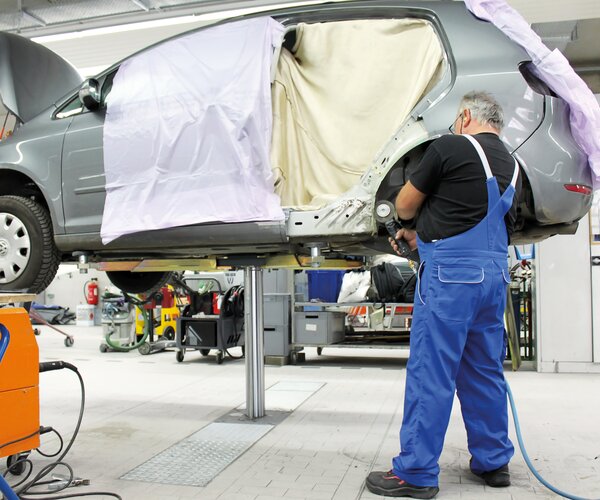

One-post inground lift with swing arm X-supports,
to pick up vehicles in the sill area.
Suitable for cars, pick-up points underneath the vehicle

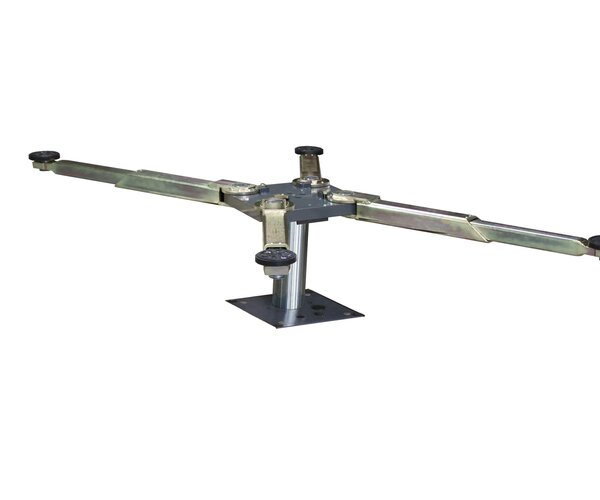

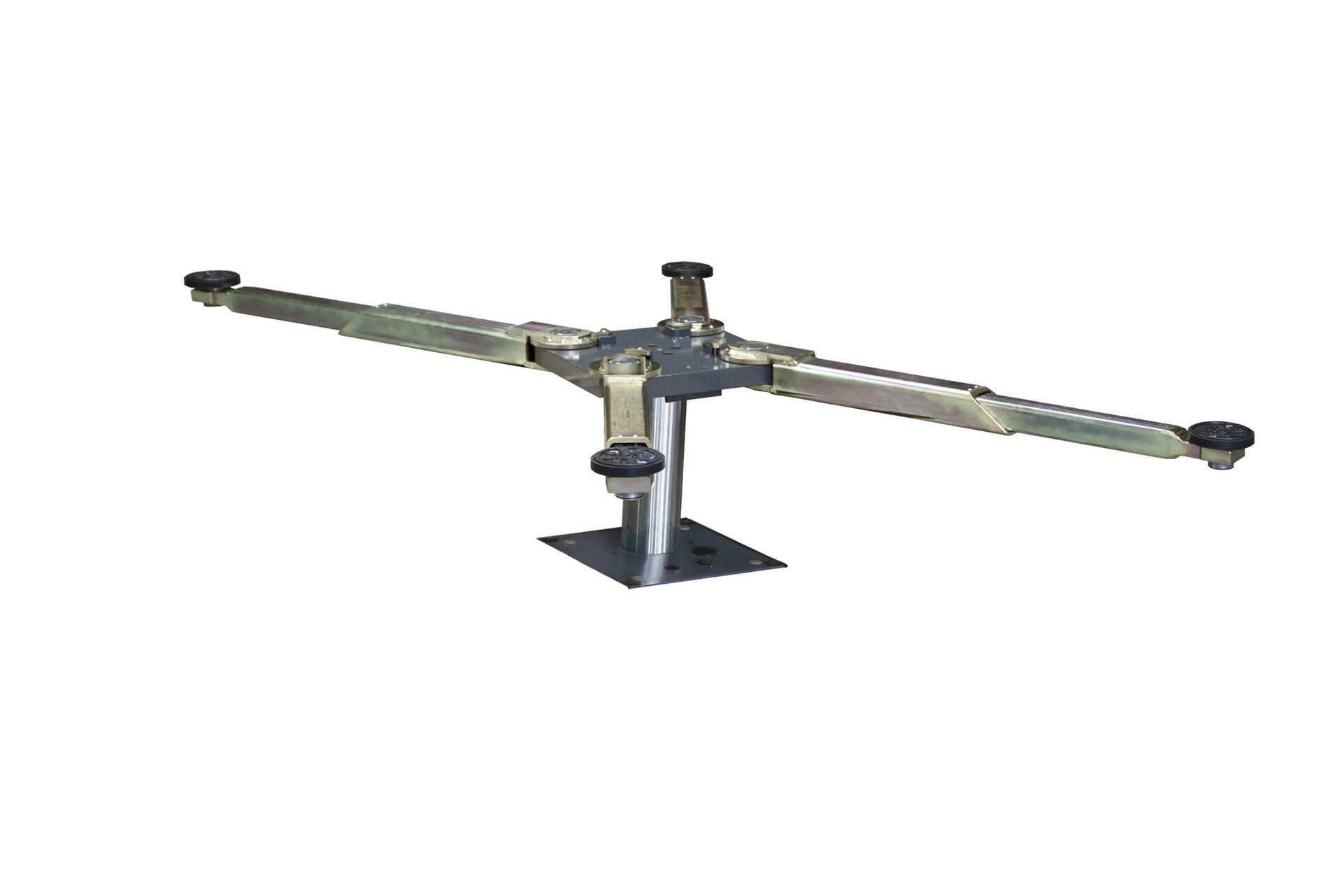

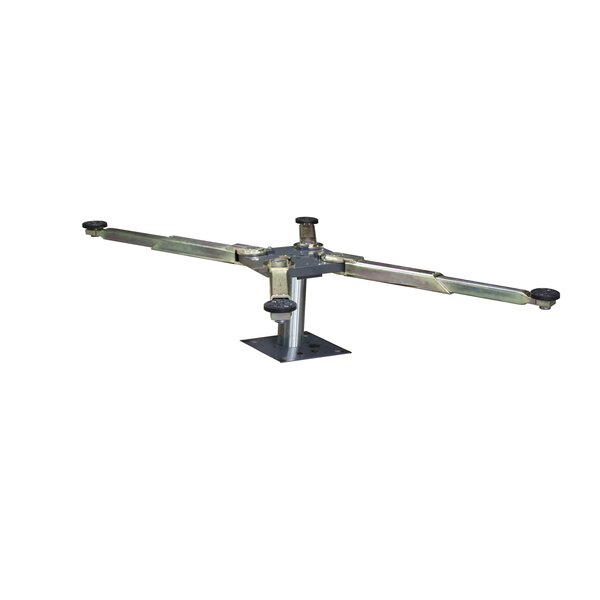

Swing arm support (X):
- Optimum vehicle pick-up with maximum accessibility,
especially for repairs from outside in the sill or
- engine area
- Double telescopic swing arm support for stepless adjustment
- Swing arm extensions with min. height of 104 mm
- Precise pick-up of vehicles due to height-adjustable support discs with thread and plug-in system
- Multiflexible plug-in system for support extenders or special supports for various vehicle types for secure, positive-locking vehicle fixation in the product range
- Comes standard with fully rubberised support plate without metal parts to exclude electrical conductivity
- Automatically engaging support arm lock
SOLIST lift unit:
- Corrosion-proof hydraulic piston, self-lubricating since it dips into hydraulic oil with eachstroke
- Low-noise operation due to very quiet motor in the installation box
- Optionally usable with mineral organic oil with high durability
- Electronic lift control with visual error display
- Hydraulic power unit inside installation box (standard), can optionally be positioned outside
- Simple, suspended installation of the lift, ensuring advantageous force transmission into the hall floor
- High lifting/lowering speeds are guaranteed in a load-dependent range of 30 ýÿ 35 seconds
- Integrated, battery-operated emergency lowering
- Optimum workplace ergonomics thanks to optional, standard-independent control system via energy box or flush-mounted switching system
Scope of delivery:
- Swing arm support (X) with swing arm carrier, anthracite grey (RAL 7016), and galvanised swing arm extensions
- Medium pressure lifting unit with clamping system
- Cable and fastening material
- Installation box/frame not included in scope ofdelivery
- Emergency-down cable for connection to the control box
- Control unit with 10 m control cable (oil flex cable)
- Lockable main switch
- Pinch point protection by CE-stop instead of foot deflector
- Operating instructions
- EC/UKCA Declaration of Conformity
Technical Data
Technical data:
Load capacity CE | 3000 kg |
Adjustment range of support discs | 84 - 105 mm |
Installation height | 104 mm |
height max. | 1968 mm |
Lifting/lowering time, load-dependent | approx. 35/35 s |
Hydraulic oil quantity (not incl. in delivery) approx. 50 l | |
Oil quality | HLP-D 22 |
Operating pressure | 32 bar |
Recommended installation box | VZ 972554 |
Control unit (H x W x D) | 320 x 220 x 120 mm |
Drive power | 3.0 kW |
Fuse protection gG | 16 A |
Power supply | 3/N/PE 400 V 50 Hz |
Technical data:
Load capacity CE | 3000 kg |
Adjustment range of support discs | 84 - 105 mm |
Installation height | 104 mm |
Lifting height max. | 1968 mm |
Lifting/lowering time, load-dependent | approx. 35/35 s |
Hydraulic oil quantity (not incl. in delivery) approx. 50 l | |
Oil quality | HLP-D 22 |
Operating pressure | 32 bar |
Recommended installation box | VZ 972554 |
Control unit (H x W x D) | 320 x 220 x 120 mm |
Drive power | 3.0 kW |
Fuse protection gG | 16 A |
Power supply | 3/N/PE 400 V 50 Hz |
