product details / scope of delivery

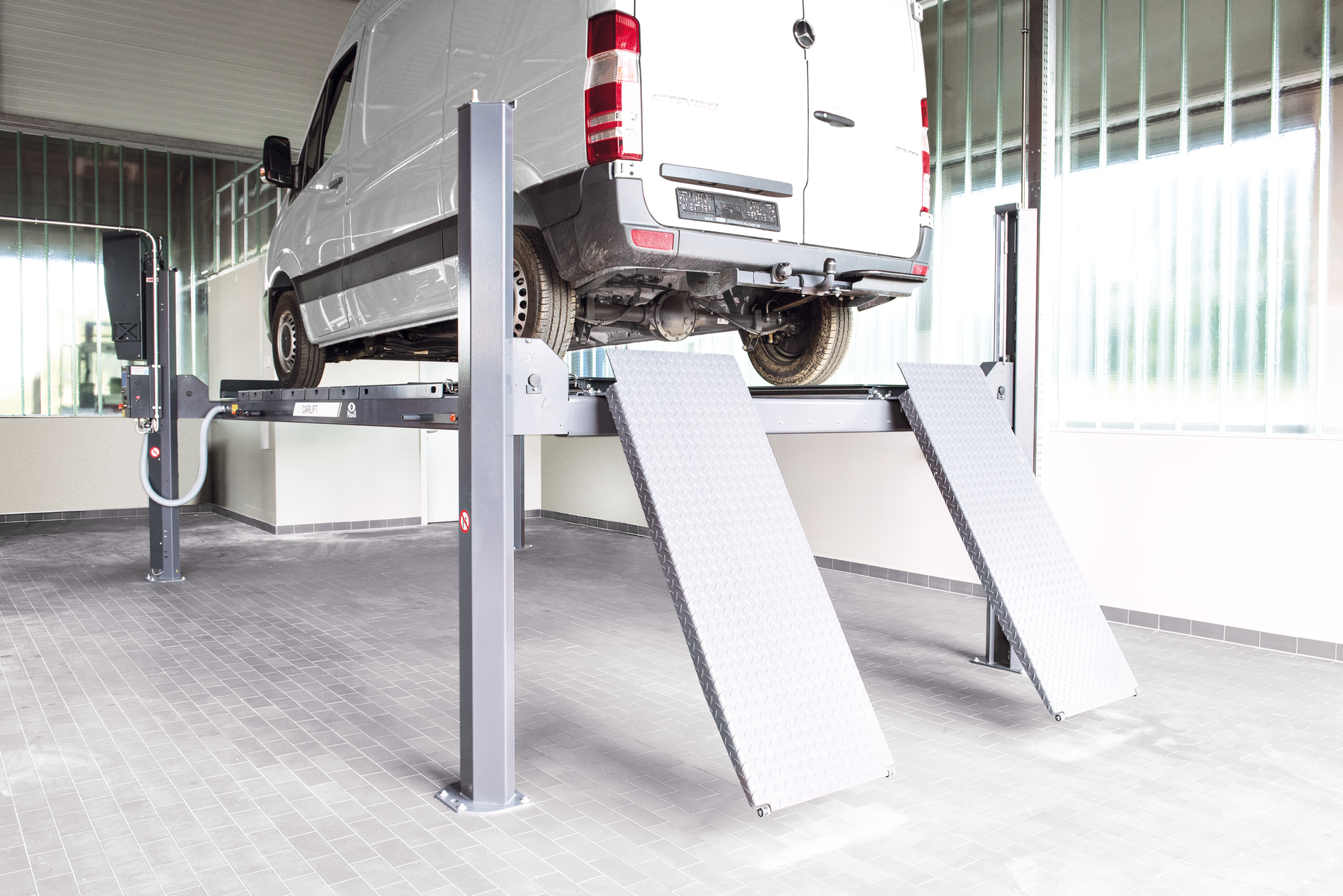

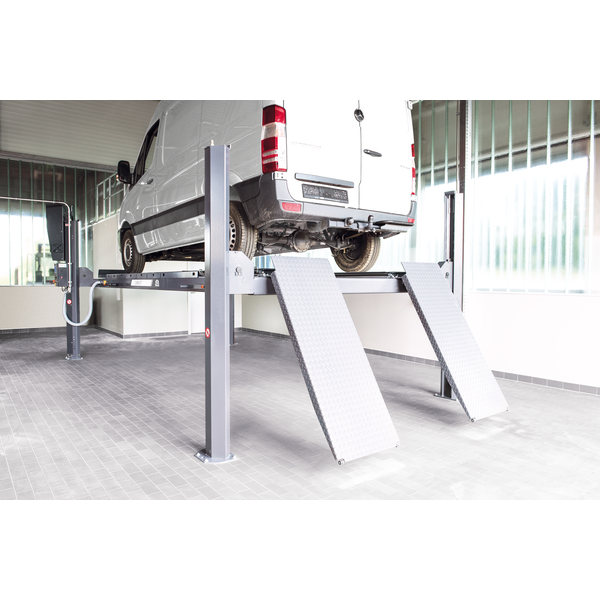

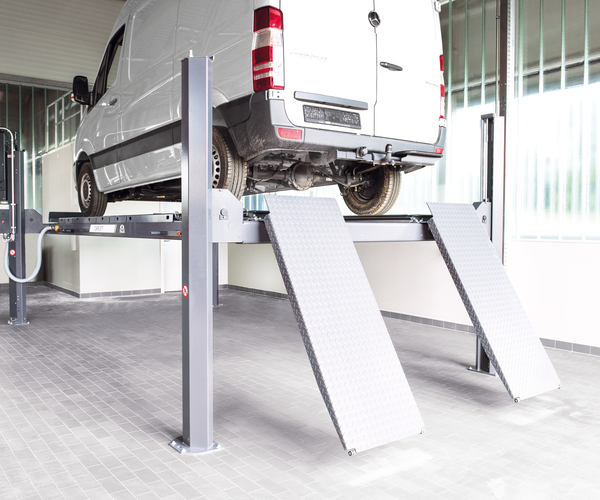

  • Four post lift with electro-hydraulic drive unit for surface mounting
  • Extra reinforcement plates welded onto runways for optimum stability
  • Large runway width for all vehicle track widths
  • One platform movable at the side for vehicles with a small track (depending on equipment)
  • Runways equipped with pre-integrated guide rail for axle lift
  • Lowering device for chassis alignment included as standard, with precision-adjustable lock ladder and electromagnetically operated latches
  • Low travel height for easy drive on
  • Emergency DOWN feature in case of power failure
  • Paint: high-quality powder coating:
    • Window Grey, RAL 7040 (Columns)
    • Anthracite Grey, RAL 7016 (Runways, Runway structures, Drive-on ramps, Traverses)

Scope of delivery:

  • Four-post lift, Type CARLIFT II 4.0
  • Operating box with control and hydraulic power unit
  • Lockable main switch
  • Settling device for wheel alignment
  • 2 pieces drive-on ramps, 2 pieces roll bar
  • Operating manual and inspection log book
  • EC Declaration of Conformity CE
  • Transport packaging


Sales documents

Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical data:

Load capacity CE4000 kg
Max. lifting height1965 mm
Lifting / lowering time (depends on load)approx. 30/30 s
Total dimensions (L x W)5790 x 3450 mm
Drive-on height145 mm
Drive-on height with wheel-free jack175 mm
Drive-on height with setup for wheel alignment195 mm
Drive-on height with setup for wheel alignment
and wheel-free jack225 mm
Platform dimensions (L & W)4400 x 630 mm
Platform length, optional4800 mm
Column width clearance2865 mm
Driving platform clearance750 - 1020 mm
Drive power2.2 kW
Power supply3/N/PE 400 V 50 Hz
Fuse gG16 A
Weight1400 kg
Hydraulic oil volume (not included)10 l
Packaging dimensions (L x W x H)4400 x 800 x 1200 mm
