E-BOX for media supply for utility chargers VP 990474

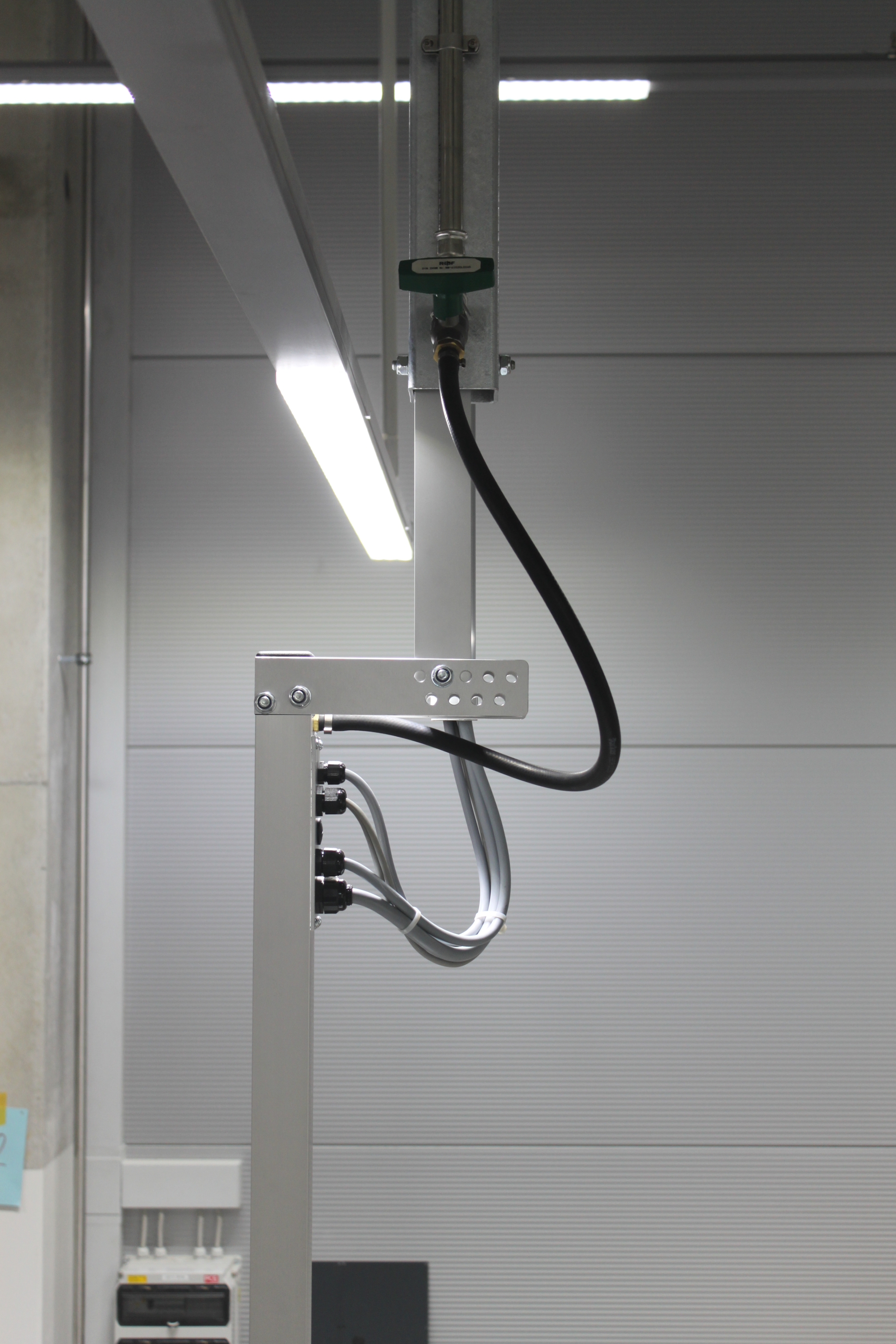

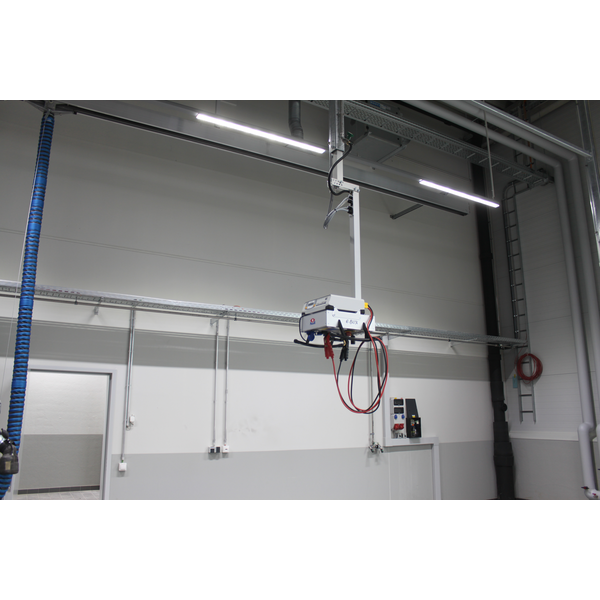

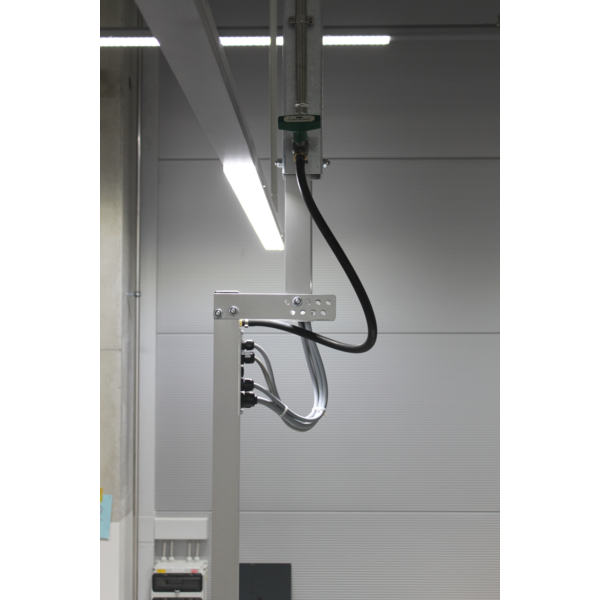

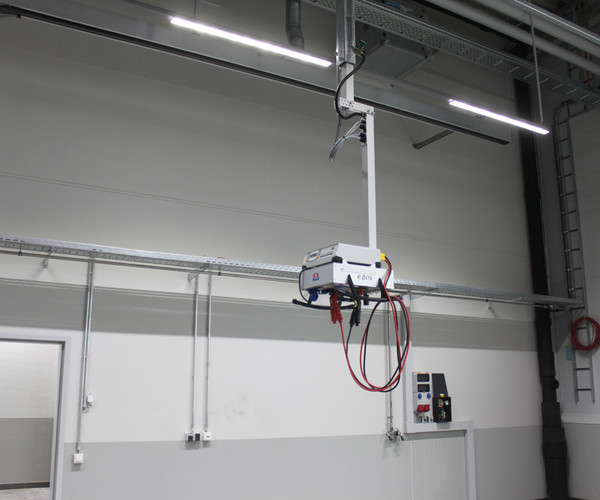

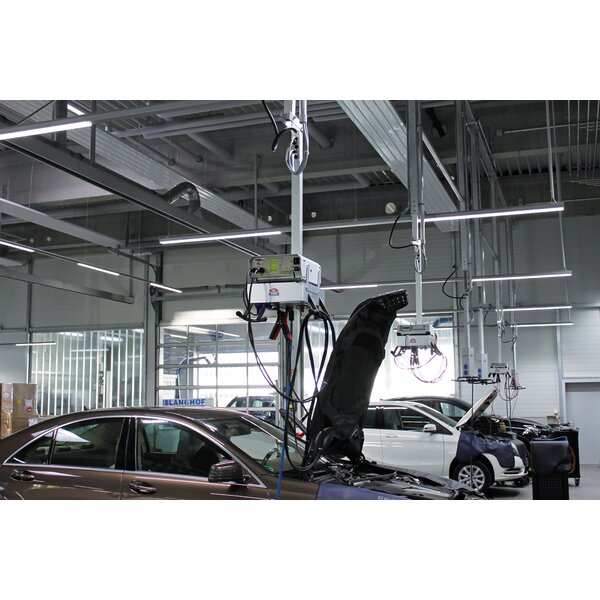

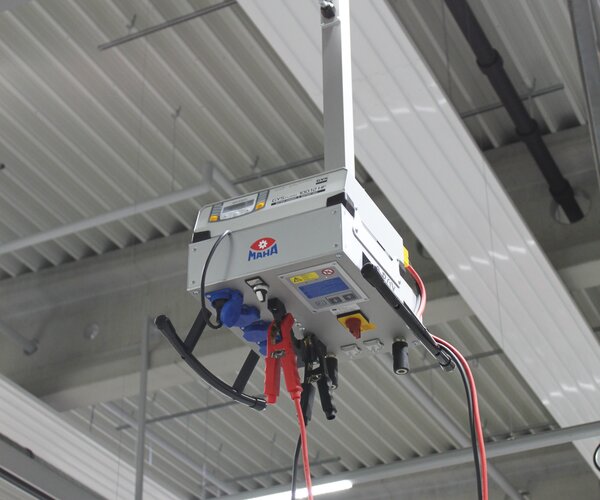

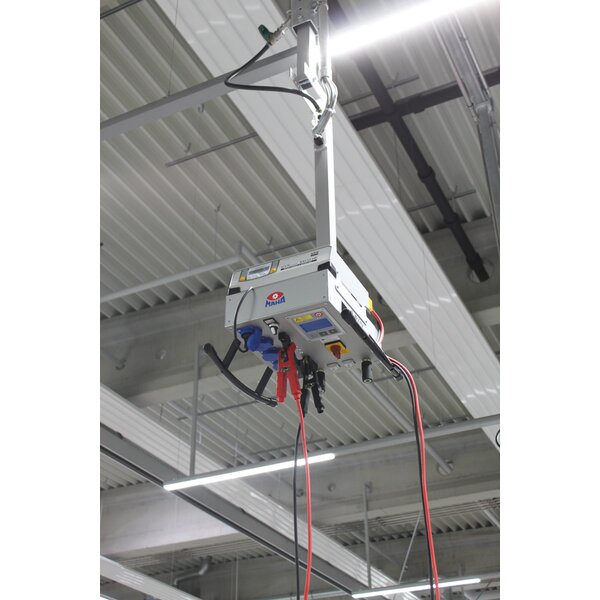

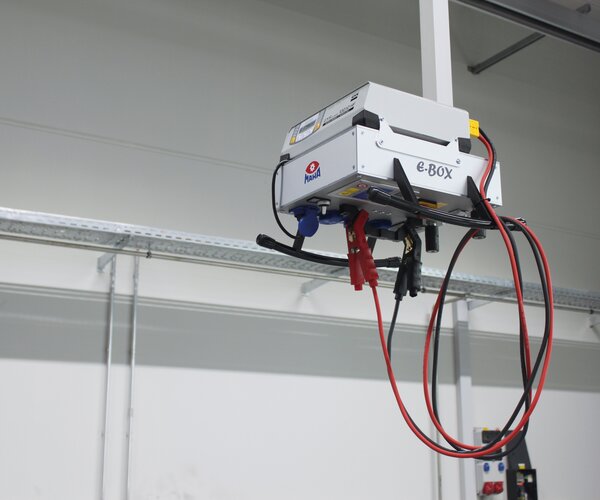

The E-Box for media supply for utility chargers is a suspended power supply unit made from aluminium, which is ceiling mounted. The equipment includes a connected 5 m cable, power connection (4 x 220 Volt), compressed air connection with safety couplings. Optional extras include the fitting of a lift control, LAN CAT6 sockets or electric power sockets. The E-Box is suitable for chargers from the brands GYS FLASH, DEUTRONIC and Eltek.

product details / scope of delivery

Description:

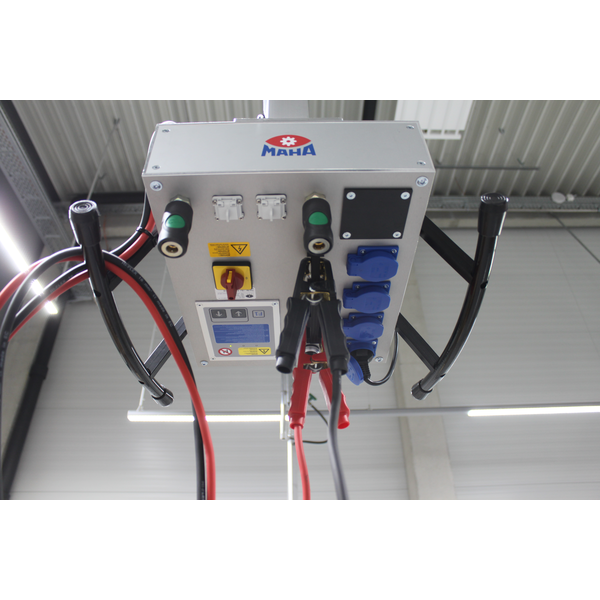

  • Compressed air supply/shock absorber
  • Edges with protective rubber
  • Hand grip to pull the E-Box up

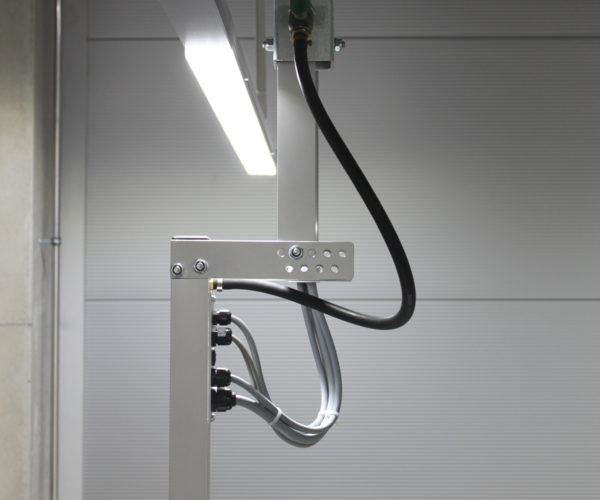

  • Sockets including cabling with 5 m cable
  • Compressed air connection thread 3/8
  • Colour: anodised aluminium, black fittings, plastic/aluminum


Standard delivery:

  • E-Box 5 m cable set

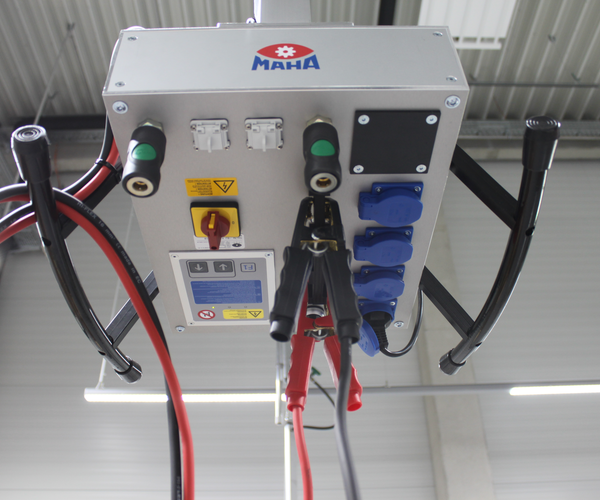

  • 3 x 230 V socket (Total fuse protection 16 A)
  • 1 x 230 V socket with switch for controlling the charging computer
  • 2 x air connection with safety ventilation couplings NW 7.8
  • Holders for chargers

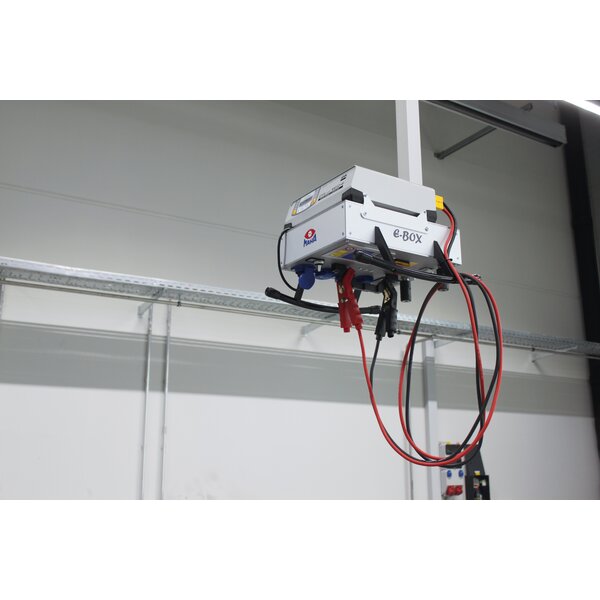

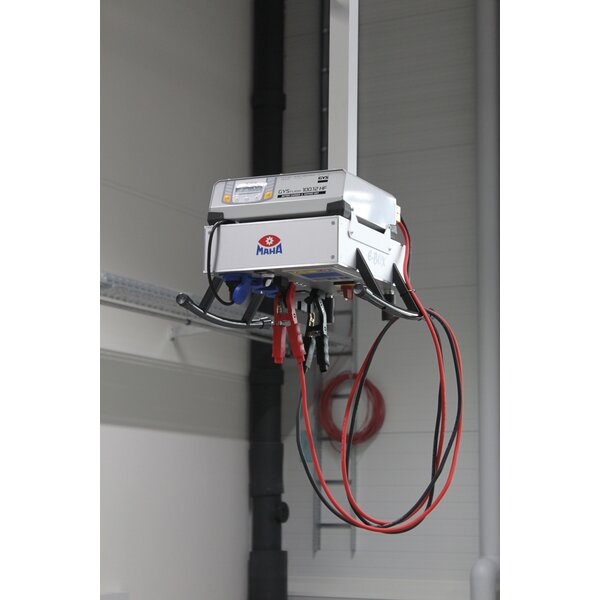

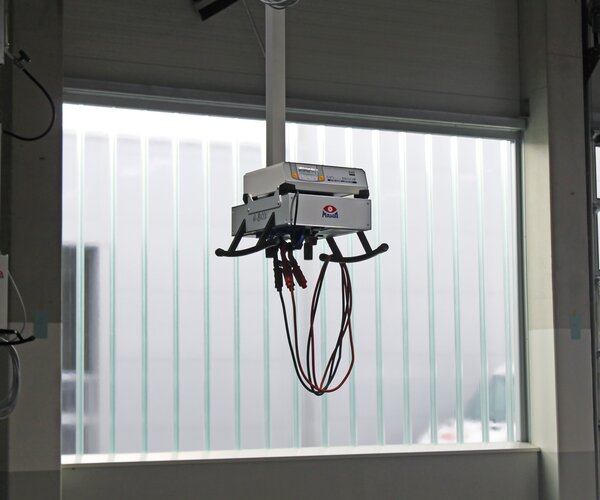

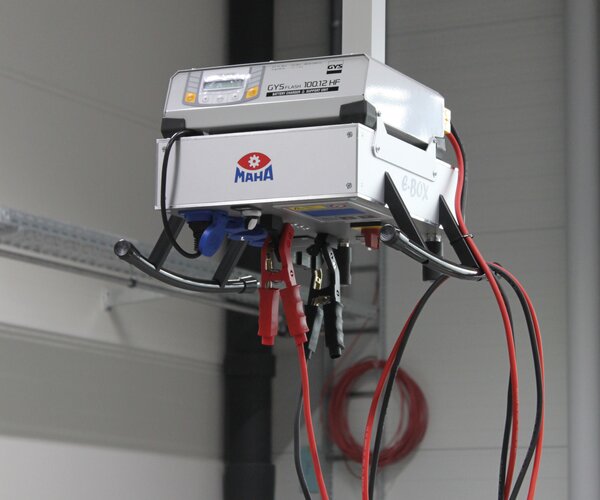

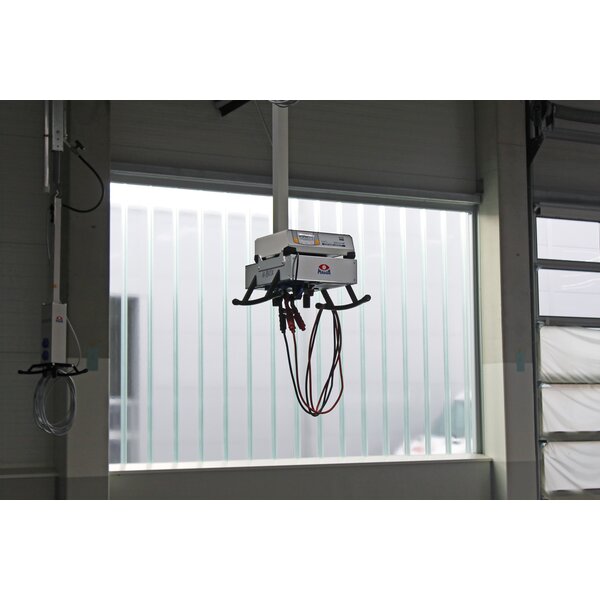

    • GYSFLASH 12/100
    • GYSFLASH 121.12 CNT-FV

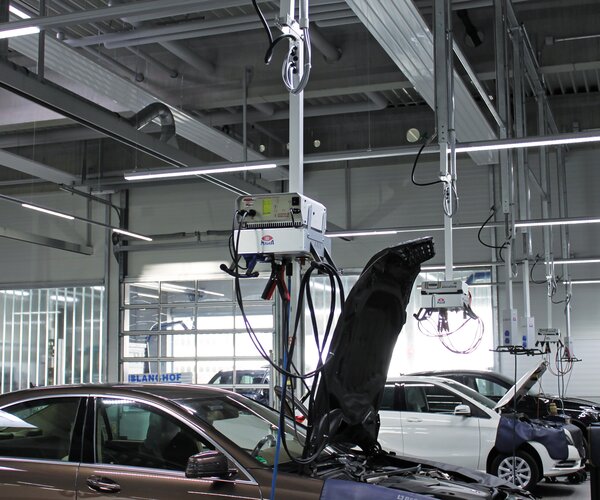

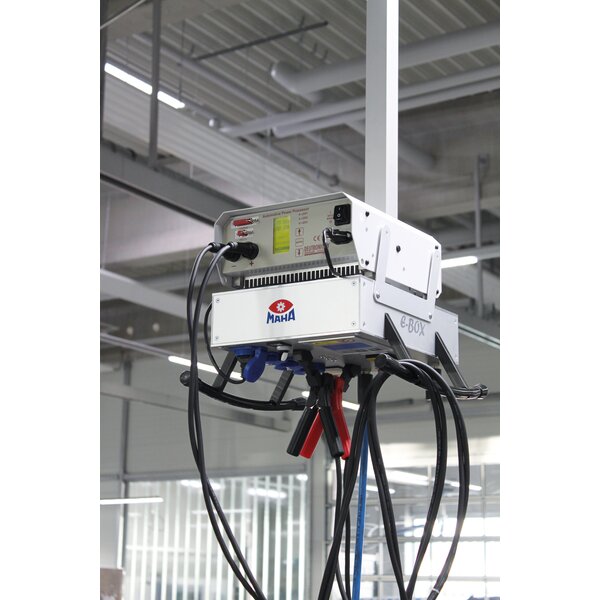

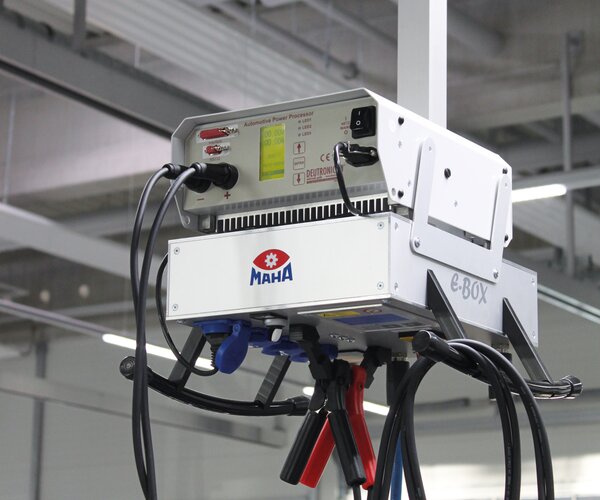

    • DEUTRONIC model: DBL 1600-14

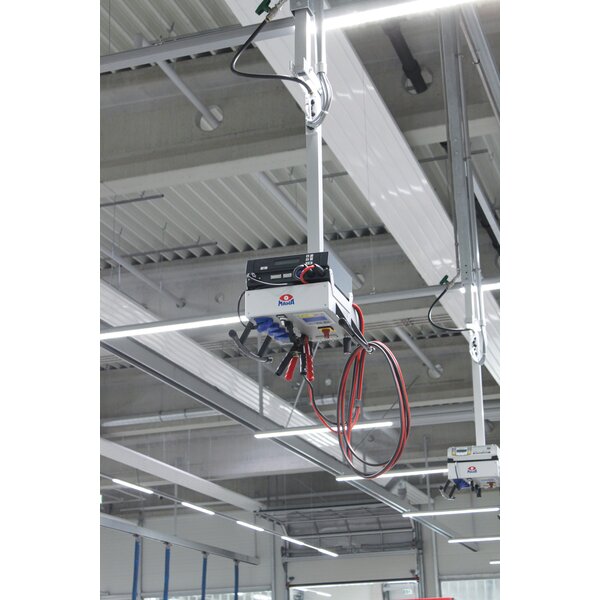

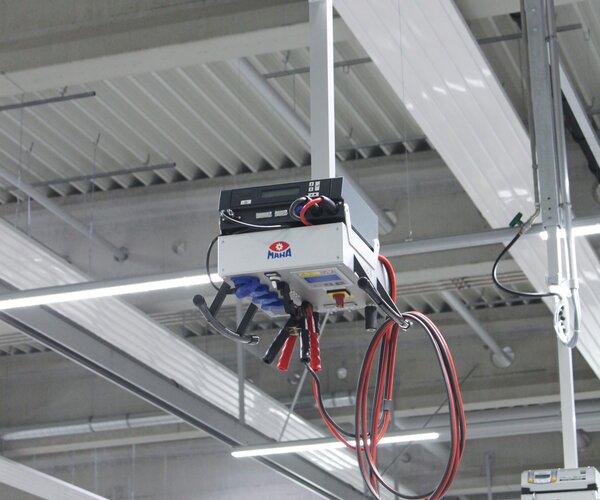

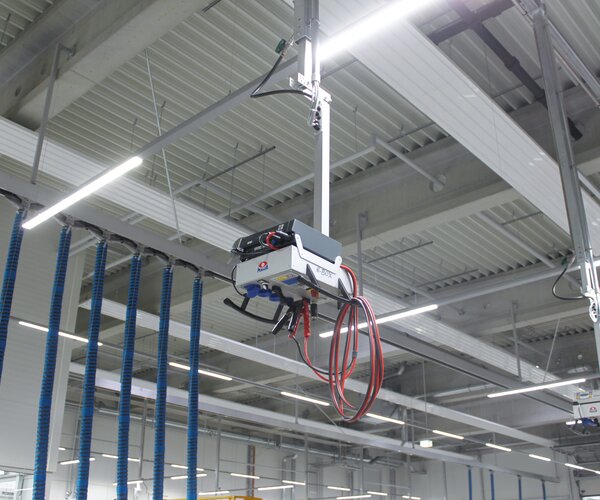

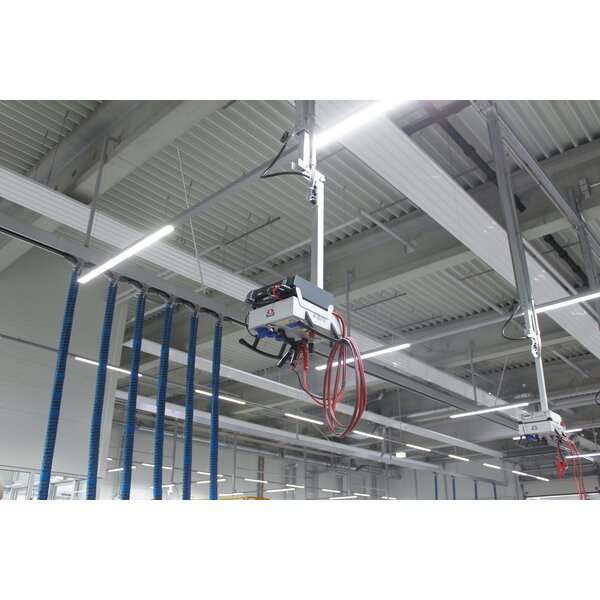

    • Eltek model: MultiCharger 1500
  • Declaration of conformity (E-BOX is a lift component)
  • Techn. manual
  • Packaging included

Downloads

Sales documents

Brochures
Brochure E-BOX
DE EN
Brochure (Printable version) MAHA E-BOX print
DE EN
Technical Datasheet
Technical Datasheet E-BOX zur Medienversorgung für Ladecomputer
DE EN
Technical Datasheet (Printable version) E-BOX zur Medienversorgung für Ladecomputer
DE EN

Technical Data

Technical data:

Measurements (L x B x H)ca. 1461 x 410 x 450 mm
with compressed air supply/shock absorber
E-Box grip85 x 410 x 450 mm
Weight (without cable)16 kg
