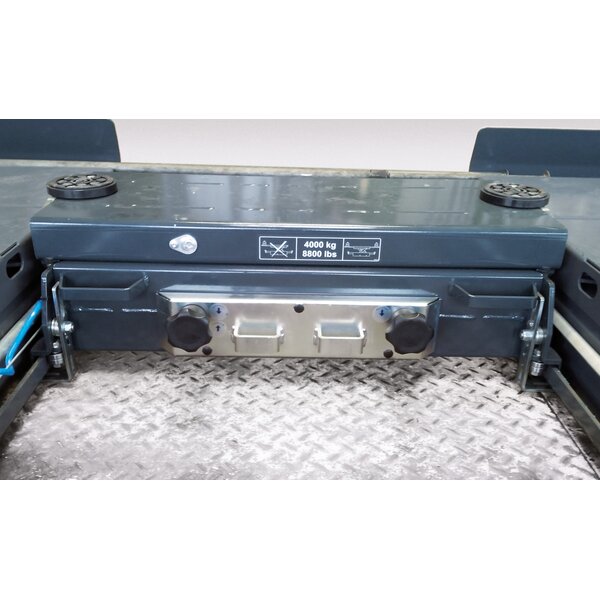

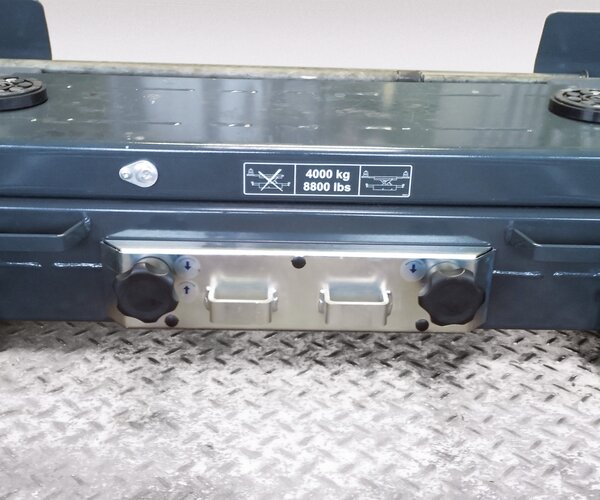

AL II 4.0 PH W VP 985065

The axle jack has proved successful thanks to its robust, tried and tested technology and is suitable for a load capacity of up to 4.0 t. Operation is either via manual hydraulic or hydro-pneumatic system. The axle jack can be supplemented by a wide range of accessories.

product details / scope of delivery

Powder coating in RAL 7016, anthracite
incl. carriage
incl. air supply set (spiral hose, guide rope)
incl. 2 120 mm rubber discs
incl. 2 adapter sockets for rubber discs
incl. 3 lift extenders measuring 50 / 100 / 200 mm

Downloads

Sales documents

Technical Datasheet
Technical Datasheet AL II 4.0 PH W
DE EN
Technical Datasheet (Printable version) AL II 4.0 PH W
DE EN

Technical documentation

Operating Instructions
Operating Instructions AL II
DE EN FR

Technical Data

Load capacity4000 kg at 8.5 bar
Min. / max. operating pressure8.5 bar / 12 bar
Minimum air quantity500 l/min
Stroke (effective stroke)250 mm
Extension length796 - 1650 mm
