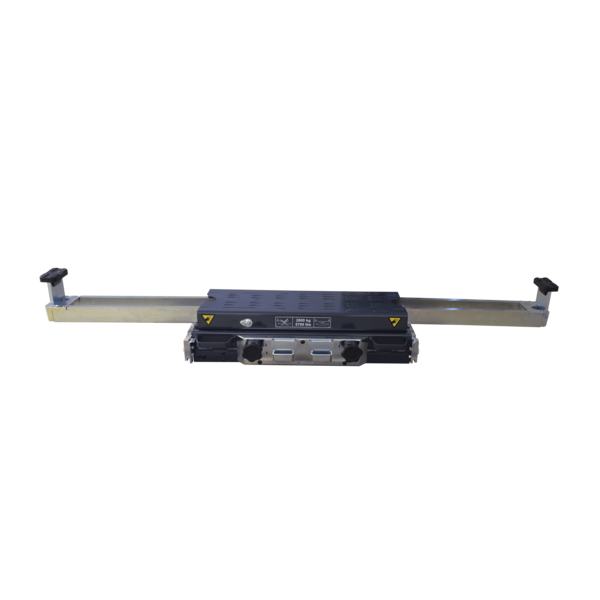

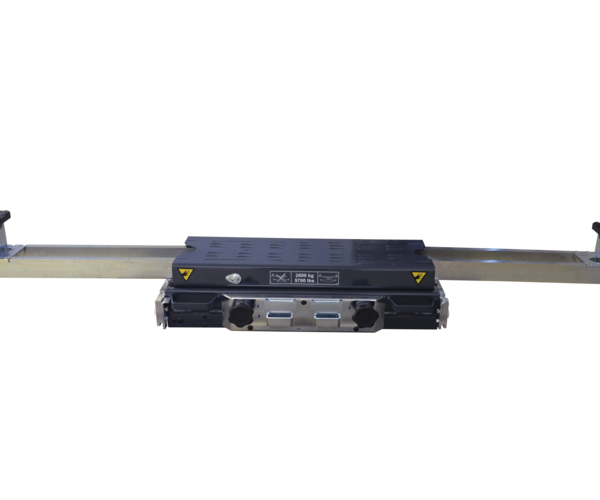

AL II 2.6 PH W VP 985067

The axle jack has proved successful thanks to its robust, tried and tested technology and is suitable for a load capacity of up to 2.6 t. Operation is either via manual hydraulic or hydro-pneumatic system. The axle jack can be supplemented by a wide range of accessories.

product details / scope of delivery

with increased cross-beam extension length (780 - 1865 mm)
Max. support length 1800 mm in conjunction with
support discs (VZ 975644)
High lifting and lowering speed
Powder coating in RAL 7016, anthracite
incl. carriage
incl. air supplyset (spiral hose, guide rope)
incl. 2 rubber pads for lifting brackets
incl. 3 lift extenders measuring 10/45/85 mm

Downloads

Sales documents

Technical Datasheet
Technical Datasheet AL II 2.6 PH W
DE EN
Technical Datasheet (Printable version) AL II 2.6 PH W
DE EN

Technical documentation

Operating Instructions
Operating Instructions AL II
DE EN FR

Technical Data

Load capacity2600 kg at 8.5 bar
Min. / max. operating pressure8.5 bar /10 bar
Minimum air quantity500 l/min
Stroke (effective stroke)250 mm
Extension length780 - 1865 mm
Max. protrusion above runway80 mm
