product details / scope of delivery

Description:

  • Time-saving and trouble-free testing and diagnosis of smoke opacity/particle concentration w. partial flow method during free acceleration or under load of engine
  • Short warm-up time
  • Intuitive operation, clear emission test structure
  • Low maintenance
  • Bluetooth interfaces, USB connection optional


Scope of delivery:

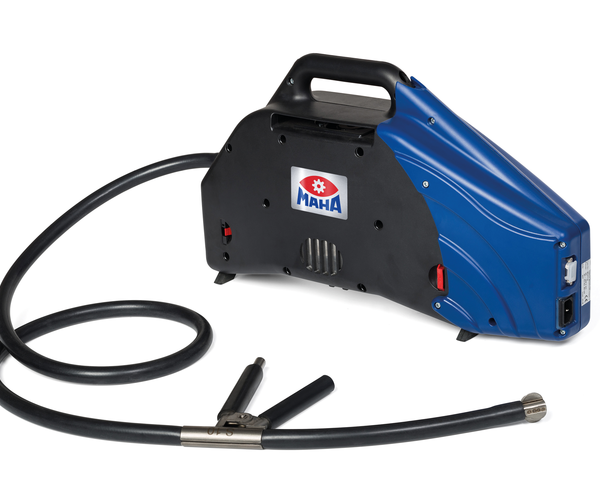

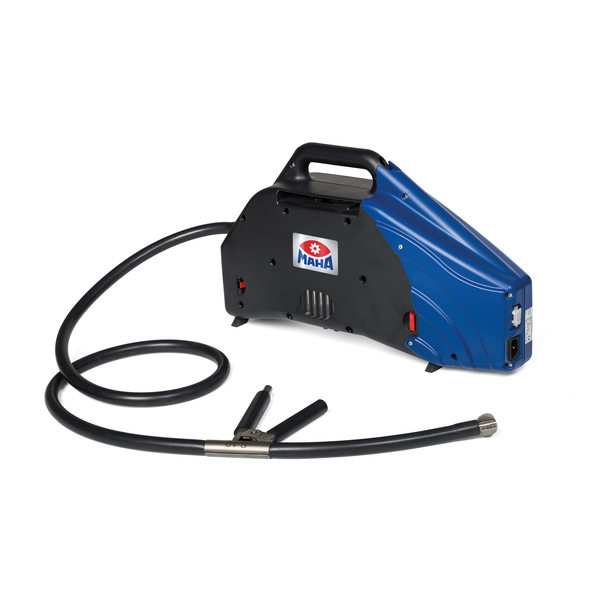

  • Opacimeter basic device in high-quality plastic casing
  • Bluetooth interface
  • Exhaust gas sampling probe 600 mm, 2000 mm probe hose
  • AUX 2000, incl. magnetic sensor and oil temp. sensor 1000 mm

Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical Data:

Measurement principleabsorbance measurement
Operating conditions:
Temperature5°C to 40°C
Power supply110-230V 50/60 Hz
Dimensions (L x W x H)395 x 136 x 285 mm
Weight .approx. 3.5 kg
Maximum exhaust gas temperature200°C
Measuring range, opacity0-99.9%
Resolution, opacity0.1%
Measuring range, absorption coefficient0-9.99 m-1
Resolution, absorption coefficient0.01 m-1
