product details / scope of delivery

Description:

  • Short warm-up time ensures rapid readiness for measurement
  • Precise analysis of gas components HC, CO, CO2, O2 with lambda value calculation
  • Type approval according to MID
  • Exhaust gas measurement possible with CNG, LPG and petrol engines
  • Low maintenance
  • USB and Bluetooth interfaces


Scope of delivery:

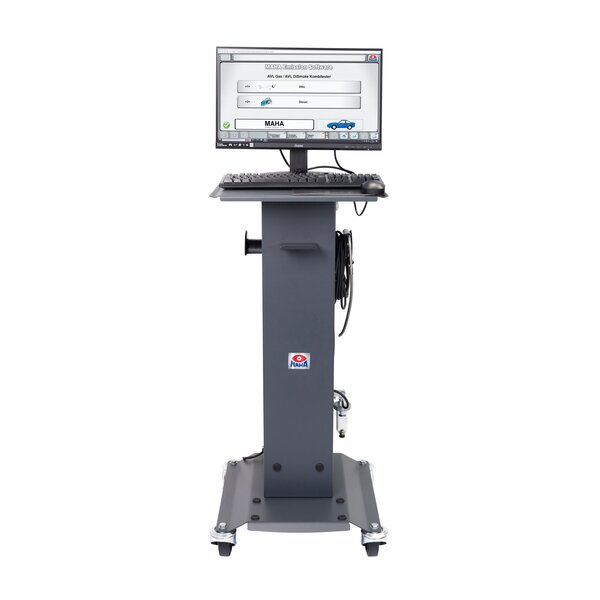

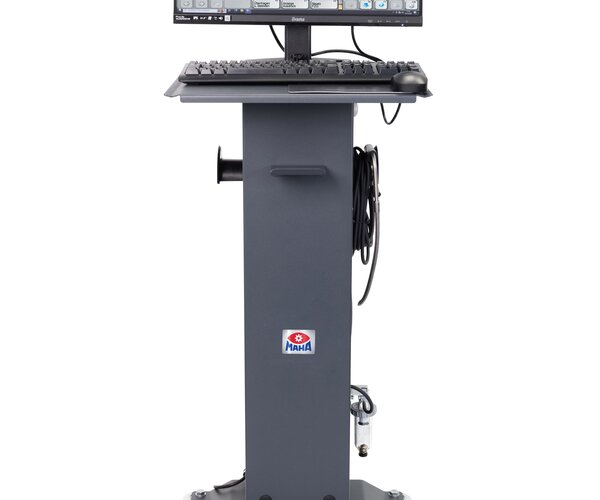

  • GAS 1000 gas analyser basic device in high-quality metal casing
  • Integrated display unit
  • USB interface with USB cable
  • Bluetooth Schnittstelle
  • Bluetooth interface, 6000 mm probe hose
  • AUX 2000, incl. magnetic sensor and oil temp. sensor 1000 mm
  • Condensate bottle 500 ml
  • Trolley
  • PC, monitor, keyboard, mouse, printer

Downloads

Sales documents

Brochures
Technical Datasheet

Technical Data

Technical Data:

Measurement principle:
infrared spectrometryHC, CO, CO2
Measurable gasesHC, CO, CO2, O2
Electrochemical detectionO2
Operating conditions:
Temperature5°C to 40°C
Power supply110-230V 50/60 Hz
Accuracy class0 (OIML)
Dimensions (L x W x H)344 x 252 x 85 mm
Weightapprox. 2.2 kg
Measurement range / measured value resolution (max.):
CO0-15 % Vol. / 0.01
CO20-20 % Vol. / 0.01
HC0-9999 ppm / 0.1
O20-25 % Vol. / 0.01
Lambda (calculated)0.5-9.99 / 0.01
