product details / scope of delivery
Description of the MBT 7200 LON:
- Perfectly suited to lorry diagnostics, even with a very high vehicle throughput
- With the optionally available, integrated roller set lift:
- For load simulation
- For redistribution on an axleto be tested
- No foundation modifications saves a substantial amount of structural effort
- Service and installation-friendly design with maintenance flap
- Large sensing roller with a diameter of 100 mm guarantees measurablecoverage across all tyre dimensions

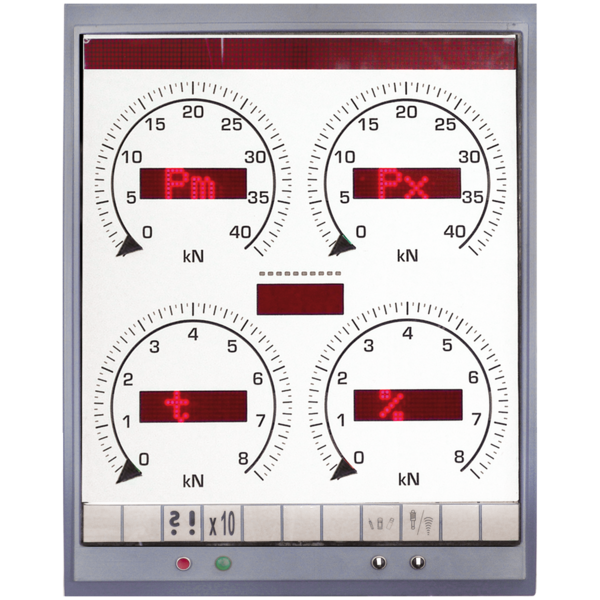

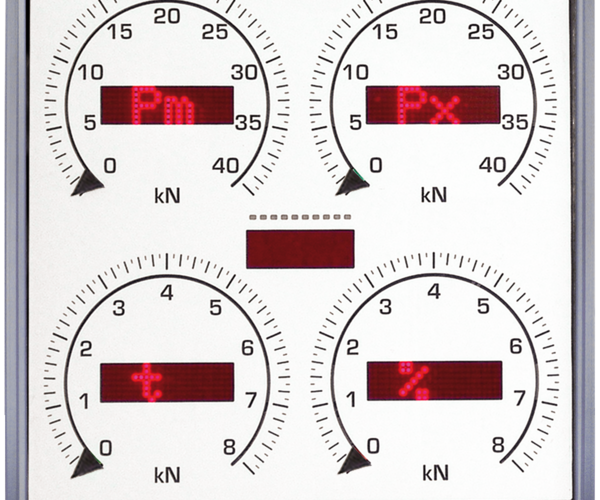

- Multi-analogue display with four pointer indicators
| (Diameter: 4 x 350 mm) | |
| - Measured value display | 0 - 8 kN / 0 - 40 kN |
- Display option for:
- Brake tester
- Wheel arch tester
- Shock absorption tester
- Difference display (three-digit + LED bar) for displaying:
- Difference in braking force in %
- Difference in shock absorption in %
- Deviation in wheel arch in m/km
- Results evaluation using additionalcoloured LED bars
- User guidance using alphanumerical display
- Program control using 32-bit microprocessor electronics
| enables the finest resolution for the measurement results | |
| Dimensions of display (H x W x D) | 1060 x 870 x300 mm |
- Comprehensive package of functions for professional testing, such as:
- Delayed automatic switch-on after entering the tester
- Automatic start-up monitoring supplied as standard to avoid tyre damage
- Automatic slipcut-off with pointer stop and automatic restart already included as standard
- Automatic exiting aid supplied as standard to enable the driven axles to conveniently exit the tester
- Automatic cut-off after exiting the tester
- Single-wheel switching for differentiated consideration of each wheel
- Robust and long-lasting design due to:
- Electronic, temperature-compensated strain gauge system for highly precise measurement results under all environmental conditions
- Roller surface welded
- Optional, free plastic coating on the test rollers
- 32-bit microprocessor electronics for process control and monitoring of all the safety functions
- Lockable main switch
- RS 232 interface connection
- Splash-proof motors work reliably, even under high-stress environmental influences
- Weighted test rollers with groove ball bearings ensure maximum precision and complete driving comfort and guarantee a long service life for the entire tester
- Internationally recognised TÜV certificate as per issue 149/2021 of the Verkehrsblatt [German Transport Gazette]
- Star-delta circuit to avoid high inrush currents
- RS 2 rollerset design with space-saving motor integration underneath the test rollers
- Rear roller elevated by 50 mm - guarantees highly precise measurement results, particularly for trailer axles.
- Self-supporting divided roller set
- Varnished with high-quality powder coating: Anthracite Grey, RAL 7016
Scope of delivery:
- Analogue display with four pointer indicators and an integrated switch cabinet
- MBT 7000 RS 2 roller set with preparation for weighing equipment
- Two VARIODATA digital displays
- RECO 1 remote control
Downloads
Sales documents
| Brochures | ||
|---|---|---|
|
Brochure MBT-SERIES for all vehicle classes
|
||
|
Brochure (Printable version) MBT-SERIES for all vehicle classes
|
||
| Technical Datasheet | ||
|---|---|---|
|
Technical Datasheet MBT 7200 LON W COMPETENCE
|
||
|
Technical Datasheet (Printable version) MBT 7200 LON W COMPETENCE
|
||
Technical documentation
| Operating Instructions | ||
|---|---|---|
|
Operating Instructions MBT LON
|
||
Technical Data
Technical data:
| Axle load (can be driven over) | 18000 kg |
| Drive power | 2 x 11 kW |
| Test speed | 3 km/h |
| Roller length | 1150 mm |
| Roller diameter | 265 mm |
| Roller axle distance | 475 mm |
| gG fuse | 63 A |
| Power supply | 3/N/PE 400 V 50 Hz |
