product details / scope of delivery

Description:
Digital roller brake tester for vans and trucks
up to 18 t axle load with 2 x 11 kW drive motors

Particularly suitable as stand-alone tester
or as part of truck reception and diagnostic test lanes,
for low loaders and vehicles with excess width

Configuration:

  • Split design as standard, lateral motor arrangement for pit and foundation installation or for above-floor use
  • Dimensions offer optimum testing opportunities for standard vehicles in the vanand truck sector
  • Large test roller diameter of 265 mm specially for the commercial vehicle sector
  • High-quality powder coating: anthracite grey, RAL 7016


Scope of delivery:

  • Control box with integrated control unit

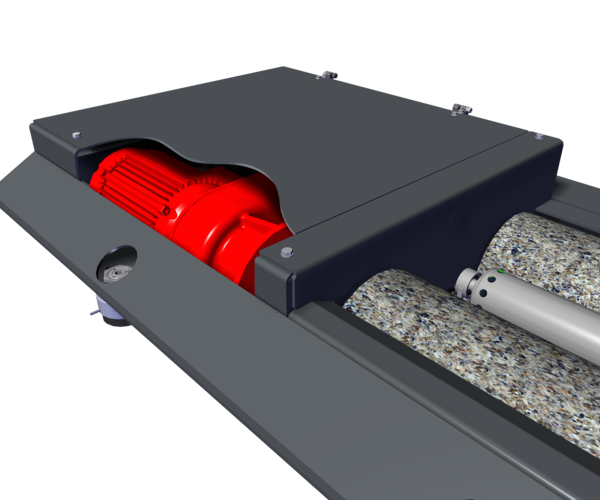

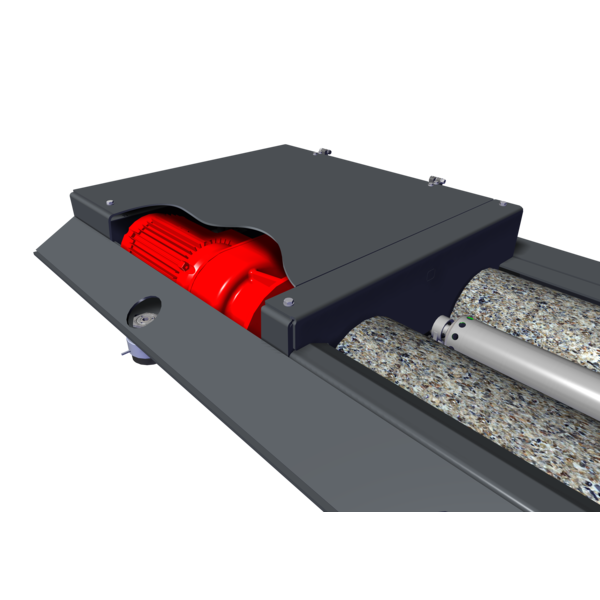

  • Roller set S 18.0 R 160 MS with integrated interface module


Note:
Cable harness not included in scope of delivery.
(Cable harness 20 m (VZ 935351) or required on site)

Downloads

Sales documents

Brochures
Technical Datasheet

Technical documentation

Operating Instructions

Technical Data

Technical data:

Axle load (traversable)18000 kg
power2 x 11 kW
Test speed3 km/h
Measured value display0-45.5 kN
Roller diameter265 mm
Roller axle distance475 mm
Roller length1600 mm
gG Fuse63 A
Power supply3/N/PE 400 V 50 Hz
Dim. of roller set half (L x W x H)2685 x 1145 x 405 mm
